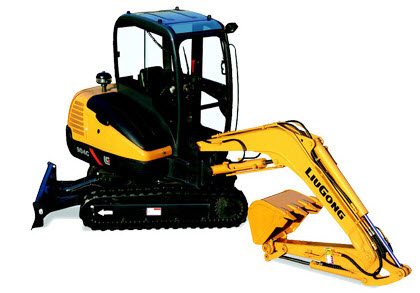

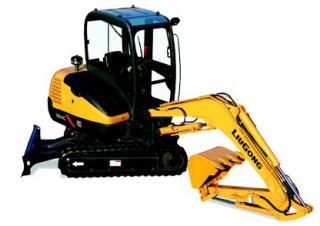

CLG904C Liugong excavator specs & dimensions (2007 - 2025)

Liugong CLG904C is a mini excavator manufactured since 2007, with a weight of 3 tons. It features a track width of 300 mm, a trans…

Liugong CLG904C is a mini excavator manufactured since 2007, with a weight of 3 tons. It features a track width of 300 mm, a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters. The machine has a tear-out force of 25 kN, a dredging depth of 3 meters, and a maximum horizontal reach of 5 meters. It is equipped with a blade.

Mini Excavators Liugong CLG904C

Visit Liugong live at

Technical specs - CLG904C Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.95 t
Transport length
5.14 m
Transport width
1.52 m
Transport height
2.5 m
Bucket capacity
0.11 m³
Bucket capacity min.
0.11 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
5.35 m
Dredging depth
3.1 m
Tear-out force
25.9 kN
Engine manuf.
Yanmar
Engine type
TNV-88
Engine power
27.1 kW
Displacement
2.19 l
Max. torque
144 Nm
Emission level
Tier 2

More technical details, like: bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong CLG904C FAQ

When was the Liugong CLG904C manufactured?

The Liugong CLG904C was first produced in 2007.

How much does the Liugong CLG904C weigh?

The Liugong CLG904C weighs 3.95 tons.

What are the transport dimensions of the Liugong CLG904C mini excavator?

The Liugong CLG904C has a transport length of 5.14 meters, a transport width of 1.52 meters, and a transport height of 2.5 meters.

What is the track width of the Liugong CLG904C mini excavator?

The Liugong CLG904C mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Liugong CLG904C mini excavator?

The Liugong CLG904C mini excavator has a dredging depth of 3.1 meters and a maximum horizontal reach of 5.35 meters.

What is the tear-out force of the Liugong CLG904C mini excavator?

The Liugong CLG904C mini excavator has a tear-out force of 25.9 kN.

What is the bucket capacity of the Liugong CLG904C mini excavator?

The bucket capacity of the Liugong CLG904C mini excavator is 0.11 cubic meters.

What operator safety and support features does the Liugong CLG904C have?

The Liugong CLG904C has a cabin for driver protection.

How much is a Liugong CLG904C Mini excavator (2007u20132025) worth?

The residual value of the Liugong CLG904C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
