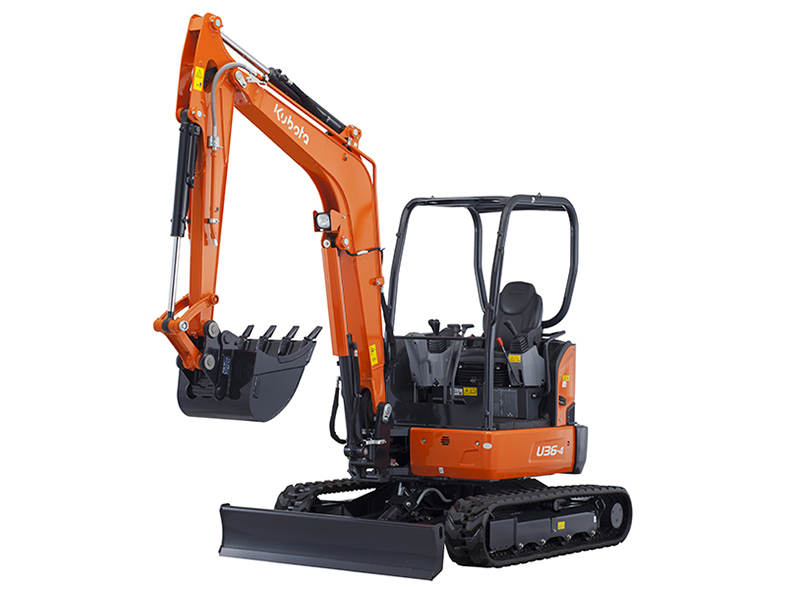

U36-4 KGLS2 Kubota excavator specs & dimensions (2017 - 2026)

Working equipment
(cid:127) 1525 mm Arm (cid:127) 1 Working light on boom (cid:127) ROPS (Roll-over Protective Structure, ISO3471) (cid:127) OPG (Operator Protection Guard, Top Guard Level I, ISO 10262) (cid:127) Cab heater for defrosting and dumping (cid:127) Weight adjustable full suspension seat (factory seat) (cid:127) Retractable seatbelt (cid:127) 2 working lights on cab (cid:127) Radio installation kit prepared to the cabin (antenna, 2 speakers, bracket for radio) (cid:127) Hydraulic pilot control lever with wrist rests (cid:127) LCD panel with diagnostic function (cid:127) Front window power assisted with throttle damper (cid:127) Front protection mounting points (cid:127) Switches and dishes for luminosity (cid:127) 12V Power source (cid:127) Emergency exit
Canopy
(cid:127) ROPS (Roll-over Protective Structure, ISO3471) (cid:127) OPG (Operator Protective Guard, Top Guard Level I, ISO 10262) (cid:127) Weight Adjustable Full Suspension Seat (PVC seat) (cid:127) Retractable safety belt (cid:127) Hydraulic pilot control levers with wrist rests (cid:127) Front LCD panel with diagnostic function (cid:127) Front guard mounting points (cid:127) Switch for beacon (cid:127) 12V power source
Cabin/Canopy
(cid:127) 2 working lights on canopy (cid:127) Front guard (OPG, Front Guard Level I, ISO 10262)

B. 2-speed Travel Switch
The 2-speed travel switch is placed on the dozer lever, this delivers easy operation along with Auto Shift.
Kubota Original Direct Injection Engine
The U36-4 is powered by Kubota's impressive 24.2 hp direct injection engine. Designed with the power to maximize trenching and lifting performance, it also delivers minimized noise levels, vibrating and fuel consumption.
Auto shift
The autoshift system allows automatic travel shift between high and low, depending on traction force and terrain. This achieves smoother operations when dozing and turning.
Auto idling system
When U36-4 control levers are in neutral for more than 4 seconds, engine speed is automatically idle. Move back each control lever and engine rpm instantly. This innovative feature not only reduces operating costs and fuel consumption but also lowers noise and exhaust emissions.
Fuel Tank Buzzer
The U36-4 is also equipped with a fuel tank buzzer that indicates the level status when refuelling and helps prevent overfilling of the fuel tank.
Kubota Original Anti-theft System
Your U36-4 is protected by Kubota's industry leading anti-theft system. Only programmed keys enable the engine to start up. Attempting to start with an unprogrammed key activates the alarm. Its features include a warning to the operator to take out the key after operation, and an LED to notify potential thieves that the system is activated.
Standard Equipment Engine/Fuel system
(cid:127) KUBOTA original engine (cid:127) Double-element air cleaner (cid:127) Fuel level gauge Summer (cid:127) Battery isolator (cid:127) Water separator with drain cock (cid:127) Auto

Proportional flow control of auxiliary circuit (AUX1/2) and maximum oil flow setting
Now you can conveniently program up to five different oil flow rates for specific attachments on the new digital control panel. No tools or manual adjustment are required. Even with a maximum AUX1 circuit oil flow now up to 60 /min, a greater choice of auxiliary attachments can be operated than ever before.
Third-line hydraulic return
A standard third line hydraulic return system allows oil recirculation directly into the tank without running through the control valves while operating one-way hydraulic attachments. This decreases the likelihood of oil contamination resulting in less back pressure and higher oil flow efficiency.
Large-capacity variable displacement
The performance-matched boom, arm and bucket movements of the U36-4 are the best in the industry. Kubota's unique hydraulic system and variable displacement large area variable displacement pump give you the precise control required for smooth and efficient operation in confined quarters.
Hydraulic system
(cid:127) 2 variable displacement pumps and 1 gear pump (cid:127) Pressure accumulator (cid:127) Hydraulic pressure test ports (cid:127) Straight travel circuit (cid:127) Auxiliary hydraulic circuit Pipeline to the arm end (cid:127) Adjustable maximum oil flow on auxiliary hydraulic circuits (AUX1/AUX2) (cid:127) Auxiliary switch (AUX1) on right control lever (proportional) (cid:127) Hydraulic return of

Tight Tail
The minimum penetration of the rear out of track width allows the operator to work the machine in confined spaces with complete safety.
Undercarriage
(cid:127) 300 mm Rubber Track (cid:127) Short pitched rubber crawler (cid:127) 2-speed travel path (cid:127) Autoshift (cid:127) 4 Double flange track rollers on each track (cid:127) 1 upper track roller

With a spacious new 5-tonne class deluxe cab, the 3.5 tonne U36-4 compact excavator brings more comfort and luxury to almost any challenge.
Wider Entrance
The larger cab on the U36-4 offers a much wider door and ample foot space to turn getting in and out of the excavator into a breeze. (cid:127)
Air Conditioning (Option)
Improved air circulation in the cab results from a more powerful cooling/heating unit and six vents located around the operator, providing optimal all weather comfort.
A. Deluxe Suspension Seat
Kubota's high back suspension seat has been designed for maximum operator comfort and to minimize fatigue during extended machine operation.The deluxe recirculation seat offers weight compensation, fixed adjustable wrist rest and retractable seat belt.
Front Digital Panel
Following the excellence of Kubota's Intelligent Control System, the new digital panel puts convenience at the operators fingertips. With easier button operation, the userfriendly digital panel is located in the front right corner of the operator. This operator-facing wider display greatly improves visibility. By making easier access, easier settings, easy to read indicators and warnings, you are always aware of the operating status of the excavator.

Tie down points on the top frame
Four locking points are now installed on the upper frame for safer and easier transport.
Safety Devices
To enhance safety during operation, the U36-4 can be equipped with optional safety valves (Boom, Arm, Dozer) to prevent unexpected drops of front attachments.
Front window guard mounting points
For added protection from flying chips and debris. Kubota offers the window guard mounting points all around the front window as standard
Others
(cid:127) Tool storage space (cid:127) Linkage points on top frame
