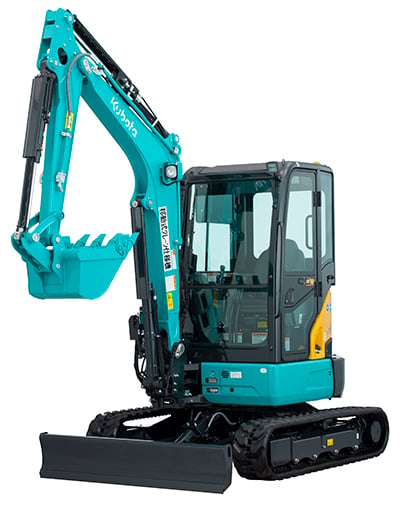

U35-6a Kubota excavator specs & dimensions (2022 - 2026)

Kubota U35-6a is a mini excavator manufactured since 2022, with a weight of 3.42 tons. It has a transport length of 4.73 meters, a…

Kubota U35-6a is a mini excavator manufactured since 2022, with a weight of 3.42 tons. It has a transport length of 4.73 meters, a transport width of 1.7 meters, and a transport height of 2.47 meters. The machine features a tear-out force of 30 kN, a dredging depth of 2.92 meters, and a maximum horizontal reach of 5.23 meters. The bucket width is 0.55 meters, and the bucket capacity is 0.11 cubic meters.

Mini Excavators Kubota U35-6a

Technical specs - U35-6a Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.42 t
Transport length
4.73 m
Transport width
1.7 m
Transport height
2.47 m
Bucket capacity
0.11 m³
Bucket width
0.55 m
Max. Reach horizontal
5.23 m
Dredging depth
2.92 m
Tear-out force
30 kN
Model series
U
Engine manuf.
Kubota
Engine type
D-1703-M-E3-BH-12
Engine power
18.9 kW
Displacement
1.65 l

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Kubota U35-6a FAQ

When was the Kubota U35-6a manufactured?

The Kubota U35-6a was first produced in 2022.

How much does the Kubota U35-6a mini excavator weigh?

The Kubota U35-6a mini excavator weighs 3.42 tons.

What are the transport dimensions of the Kubota U35-6a mini excavator?

The Kubota U35-6a has a transport length of 4.73 meters, a transport width of 1.7 meters, and a transport height of 2.47 meters.

What are the excavation performance specifications of the Kubota U35-6a mini excavator?

The Kubota U35-6a mini excavator has a dredging depth of 2.92 meters and a maximum horizontal reach of 5.23 meters.

What is the tear-out force of the Kubota U35-6a mini excavator?

The Kubota U35-6a mini excavator has a tear-out force of 30 kN.

What are the bucket specifications of the Kubota U35-6a mini excavator?

The Kubota U35-6a mini excavator has a bucket capacity of 0.11 cubic meters and a bucket width of 0.55 meters.
