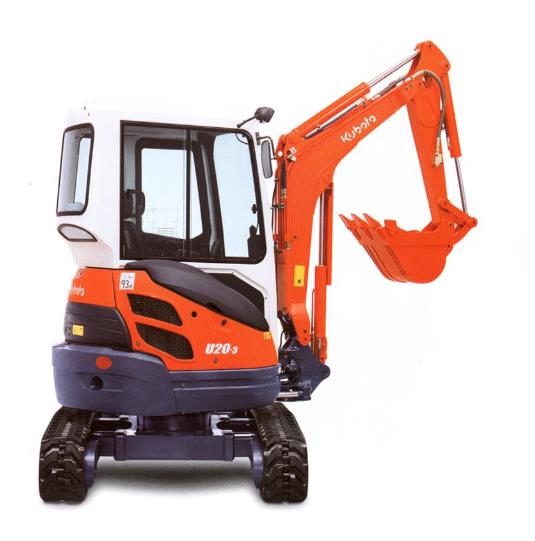

U20-3α GL Kubota excavator specs & dimensions (2003 - 2009)

Model rating
6,00 / 10

Kubota U20-3α GL is a mini excavator manufactured from 2003 to 2009, with a weight of 2.24 tons. It has a track width of 250 mm, a…

Kubota U20-3α GL is a mini excavator manufactured from 2003 to 2009, with a weight of 2.24 tons. It has a track width of 250 mm, a transport length of 3.85 meters, a transport width of 1.5 meters, and a transport height of 2.36 meters. The bucket capacity is 0.066 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Kubota U20-3α GL

Technical specs - U20-3α GL Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.24 t
Transport length
3.85 m
Transport width
1.5 m
Transport height
2.36 m
Bucket capacity
0.066 m³
Track width
250 mm
Driver protection
KbR
Max. Reach horizontal
4.14 m
Dredging depth
2.32 m
Tear-out force
13.2 kN
Model series
U
Engine manuf.
Kubota
Engine type
D1105-EB
Engine power
14 kW

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota U20-3α GL FAQ

When was the Kubota U20-3u03b1 GL manufactured?

The Kubota U20-3u03b1 GL was manufactured from 2003 to 2009.

How much does the Kubota U20-3u03b1 GL weigh?

The Kubota U20-3u03b1 GL weighs 2.24 tons.

What are the transport dimensions of the Kubota U20-3u03b1 GL mini excavator?

The Kubota U20-3u03b1 GL has a transport length of 3.85 meters, a transport width of 1.5 meters, and a transport height of 2.36 meters.

What is the track width of the Kubota U20-3u03b1 GL mini excavator?

The Kubota U20-3u03b1 GL mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Kubota U20-3u03b1 GL mini excavator?

The Kubota U20-3u03b1 GL mini excavator has a dredging depth of 2.32 meters and a maximum horizontal reach of 4.14 meters.

What is the tear-out force of the Kubota U20-3u03b1 GL mini excavator?

The Kubota U20-3u03b1 GL mini excavator has a tear-out force of 13.2 kN.

What is the bucket capacity of the Kubota U20-3u03b1 GL mini excavator?

The Kubota U20-3u03b1 GL mini excavator has a bucket capacity of 0.066 cubic meters.

What operator safety features does the Kubota U20-3u03b1 GL offer?

The Kubota U20-3u03b1 GL provides operator safety with a cabin equipped with ROPS (Roll-Over Protective Structure).

How much is a Kubota U20-3u03b1 GL Mini excavator (2003u20132009) worth?

The residual value of the Kubota U20-3u03b1 GL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
