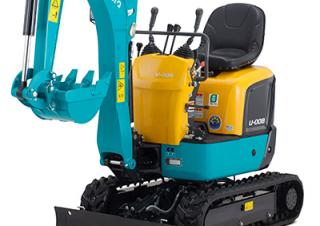

U008-5 Kubota excavator specs & dimensions (2022 - 2026)

Kubota U008-5 is a mini excavator manufactured since 2022, with a weight of 0.95 tons. It has a transport length of 2.78 meters, a…

Kubota U008-5 is a mini excavator manufactured since 2022, with a weight of 0.95 tons. It has a transport length of 2.78 meters, a transport width of 0.82 meters, and a transport height of 1.41 meters. The machine features a tear-out force of 7.45 kN, a dredging depth of 1.6 meters, and a maximum horizontal reach of 3.07 meters. The bucket width is 0.3 meters, and the bucket capacity is 0.018 cubic meters.

Mini Excavators Kubota U008-5

Technical specs - U008-5 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.95 t
Transport length
2.78 m
Transport width
0.82 m
Transport height
1.41 m
Bucket capacity
0.018 m³
Bucket width
0.3 m
Max. Reach horizontal
3.07 m
Dredging depth
1.6 m
Tear-out force
7.45 kN
Model series
U
Engine manuf.
Kubota
Engine type
D722-E3-BH-5
Engine power
7.4 kW
Displacement
0.72 l

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Kubota U008-5 FAQ

When was the Kubota U008-5 manufactured?

The Kubota U008-5 was first produced in 2022.

How much does the Kubota U008-5 weigh?

The Kubota U008-5 weighs 0.95 tons.

What are the transport dimensions of the Kubota U008-5 mini excavator?

The Kubota U008-5 has a transport length of 2.78 meters, a transport width of 0.82 meters, and a transport height of 1.41 meters.

What are the dredging depth and maximum horizontal reach of the Kubota U008-5 mini excavator?

The Kubota U008-5 mini excavator has a dredging depth of 1.6 meters and a maximum horizontal reach of 3.07 meters.

What is the tear-out force of the Kubota U008-5 mini excavator?

The Kubota U008-5 mini excavator has a tear-out force of 7.45 kN.

What are the bucket specifications of the Kubota U008-5 mini excavator?

The Kubota U008-5 mini excavator has a bucket capacity of 0.018 cubic meters and a bucket width of 0.3 meters.

How much is a Kubota U008-5 Mini excavator (2022u20132025) worth?

The residual value of the Kubota U008-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Kubota U008-5 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we collect prices since 40 years and using this infromation, we can support buyers with price information of used mini excavators, such as Kubota U008-5.

Check what new and used models of mini excavators you can get in each price range:

Data provided by Lectura logo

Compare Kubota U008-5 with similar Mini Excavators

Kubota U008-5

Kubota U008-5

Weight:
0.95 t
Transport length:
2.78 m
Transport width:
0.82 m
Transport height:
1.41 m
Schaeff TC 08

Schaeff TC 08

Weight:
1.03 t
Transport length:
2.6 m
Transport width:
0.73 m
Transport height:
1.55 m
Atlas Kompakt AC 08B

Atlas Kompakt AC 08B

Weight:
1.01 t
Transport length:
2.64 m
Transport width:
0.74 m
Transport height:
2.25 m
