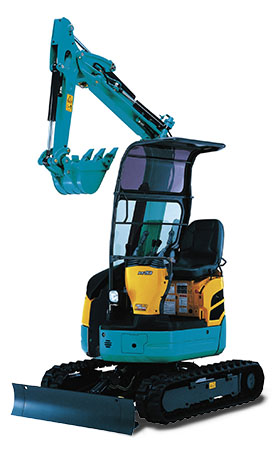

RX153S Kubota excavator specs & dimensions (2022 - 2026)

Kubota RX153S is a mini excavator manufactured since 2022, with a weight of 1.58 tons. It has a transport length of 3.18 meters, a…

Kubota RX153S is a mini excavator manufactured since 2022, with a weight of 1.58 tons. It has a transport length of 3.18 meters, a transport width of 1.24 meters, and a transport height of 2.22 meters. The machine features a tear-out force of 13 kN, a dredging depth of 1.94 meters, and a maximum horizontal reach of 3.48 meters. The bucket width is 0.35 meters, and the bucket capacity is 0.036 cubic meters.

Mini Excavators Kubota RX153S

Technical specs - RX153S Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.58 t
Transport length
3.18 m
Transport width
1.24 m
Transport height
2.22 m
Bucket capacity
0.036 m³
Bucket width
0.35 m
Max. Reach horizontal
3.48 m
Dredging depth
1.94 m
Tear-out force
13 kN
Model series
RX
Engine manuf.
Kubota
Engine type
D782-E2-BH-5
Engine power
8.8 kW
Displacement
0.78 l

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota RX153S FAQ

When was the Kubota RX153S manufactured?

The Kubota RX153S was first produced in 2022.

How much does the Kubota RX153S weigh?

The Kubota RX153S weighs 1.58 tons.

What are the transport dimensions of the Kubota RX153S mini excavator?

The Kubota RX153S has a transport length of 3.18 meters, a transport width of 1.24 meters, and a transport height of 2.22 meters.

What are the excavation performance specifications of the Kubota RX153S mini excavator?

The Kubota RX153S mini excavator has a dredging depth of 1.94 meters and a maximum horizontal reach of 3.48 meters.

What is the tear-out force of the Kubota RX153S mini excavator?

The Kubota RX153S mini excavator has a tear-out force of 13 kN.

What are the specifications of the primary work tool bucket on the Kubota RX153S?

The Kubota RX153S has a bucket with a capacity of 0.036 cubic meters and a width of 0.35 meters.
