Kubota KX61-3 GL excavator specs (2004 - 2017)

8,50/10 Rate this machine now!

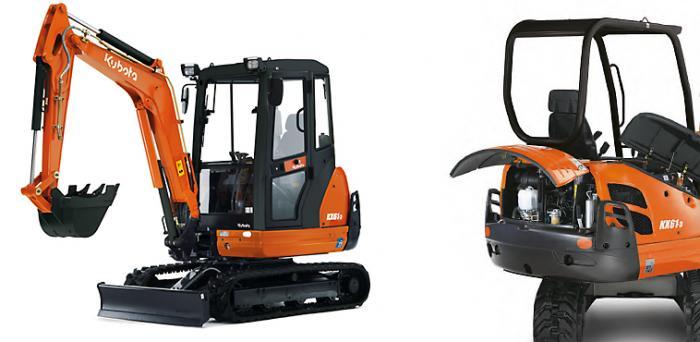

Manufactured by Kubota, this is the KX 61-3 GL mini excavator. Find and download detailed specs and data sheets for this machine h... Read more

Manufactured by Kubota, this is the KX 61-3 GL mini excavator. Find and download detailed specs and data sheets for this machine here.

The Kubota KX 61-3 GL is a 2.6t machine with Kubota engine which powers this model with up to 18.2kW or 24 horse power. This Kubota mini excavator belongs to the medium sized machine segment in the mini excavators category. The KX 61-3 GL’s size is 1.4m x 4.31m x 2.41m. The bucket capacity of KX 61-3 GL is 0.06m³, which is above average for this type of machine.

The KX 61-3 GL is manufactured and distributed with Rubber track and Blade. It does not include Quick hitch hydr., Aircondition and Track adaption. There are more detailed specifications and machine descriptions available in the original Kubota KX 61-3 GL specs data sheet. You can download it for free in English and German on LECTURA Specs.

The production is still going in 2017, where this KX 61-3 GL is available at a new list price between €42000 and €54000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Kubota models of this type on LECTURA Specs are the KX 019-4 HGL, KX 057-4 and KX 71-3 GL, and 38 other mini excavators, which currently range from 1t up to 5.5t are also available. Having been in production from 2004 to 2017, the KX 61-3 GL mini excavator ranks in the LECTURA index at #11. Throughout the production cycle of this KX 61-3 GL mini excavator, there have been around 38 models that average a price of €20900 for an age of 6 years Want more detailed specifications? Download the latest Kubota KX 61-3 GL specs data sheet on LECTURA Specs today!


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 2.6 t
  • Transport length 4.31 m
  • Transport width 1.4 m
  • Transport height 2.41 m
  • Bucket capacity 0.06 m³
  • Bucket width 0.5 m
  • Track width 300 mm
  • Driver protection KbR
  • Max. Reach horizontal 4,72 m
  • Dredging depth 2,74 m
  • Tear-out force 15 kN
  • Model series KX
  • Engine manuf. Kubota
  • Engine type V1505E2BH
  • Engine power 18.2 kW
  • Displacement 1.5 l
  • Revolutions at max torque 2100 rpm

More technical details, like: average fuel consumption, fuel consumption range (min - max), bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

  • Track adjustment
  • Rubber track
  • Blade
  • Aircondition
  • Quick hitch hydr.
  • Quick hitch mech.

Carbon footprint calculator for Mini Excavators

See the ERA equipment CO2 Calculator to find out the CO2 footprint per hour of use of the Kubota KX61-3 GL or alternative Mini Excavators.

The emission calculation can be carried out considering different motor oil consumption scenarios or other variables.

or go to the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

service provided by ERA



Very good machine

Kubota KX61-3 GL user from Germany

Kubota KX61-3 GL overview

  • Kubota KX61-3 GL features overview

    Wrist rest
    With this new feature to assist with smooth operation and produce less operator fatigue, wrist rests are fitted as standard. Easy adjustments can be made easily, in addition the operation is smoother and low-fatigue.
  • Engine / Driveline and transmission

    Variable displacement pump
    For efficient operation, both the oil flow and pressure from the variable displacement pumps are adapted to the workload. By using variable pumps a more efficient engine is selected which results in fuel efficiency, low vibration and noise levels.
    Low noise level
    When designing the KX61-3, we have continued to focus on being environmentally and user-friendly. Thus, the noise level of the KX61-3 in the cab is an amazingly low 77 db.
    Kubota V1505-EBH engine
    The powerful and reliable Kubota V1505-EBH engine ensures economical and environmentally friendly performance. The engine is so fuel efficient, a full tank gives 10 hours of continuous work.
    Kubota Intelligent Control System
    An innovative upgrade that keeps you always in tune with the vital signs of the KX61-3. Kubota Intelligent Communication Control System is equipped with warning indicators for engine, fuel, temperature and oil; a service mode allowing accurate troubleshooting; as well as standard indicators displaying current working conditions such as engine rpm, hour meter & more.
  • Hydraulics

    Digging arm and bucket
    Equipped with the longest arm, the KX61-3 delivers the largest digging depth and reach of all 2.5-ton class. Even during the long arm specification it still generates the greatest power in its class for both the arm and bucket trenching.
    Boom swing / Auxiliary operation
    For easier operation, the boom swing pedal and auxiliary hydraulic operations are controlled by independent pedals, with one pedal located on the right side of the floor and the other on the left side.
    Hydraulic system
    Pressure accumulator, Hydraulic pressure test, Straight travel circuit, third line hydraulic recirculation.
    Working equipment
    1050 mm Arm, auxiliary hydraulic circuit line to the arm end, 2 working lights on the cab and 1 light on the boom.
  • Tyres / Tracks

    Increased rear visibility
    The KX61-3 has an 18 % reduced overhang with consistent stability like our conventional model. Now, KX61-3 offers increased rear visibility and facilitates operation in confined areas.
    2-speed travel switch
    With the 2-speed travel switch switched from ground to dozer lever, you can enjoy improved dozer operation at changing travel speeds.
    300 mm rubber track, 1 x upper track roller, 3 x outer flange chart lower track roller, 2 speed travel switch on dozer
  • Dimensions and weight

    Lift Point HeightLifting point radius (2.5m)Lifting point radius (3.5m)
    Blade DownBlade UPBlade DownBlade UP
    2.0m5.95 (0.61)5.95 (0.61)5.95 (0.61)5.46 (0.56)5.22 (0.53)4.15 (0.42)
    1.5m7.63 (0.78)7.63 (0.78)6.70 (0.68)5.90 (0.60)5.15 (0.53)4.09 (0.42)
    1.0m9.44 (0.96)8.35 (0.85)6.45 (0.66)6.42 (0.65)5.07 (0.52)4.01 (0.41)
    0m11.48 (1.17)8.02 (0.82)6.14 (0.63)7.13 (0.73)4.93 (0.50)3.88 (0.40)
    Lift Point HeightLifting point radius (2.5m)Lifting point radius (3.5m)
    Blade DownBlade UPBlade DownBlade UP
    2.0m7.00 (0.71)7.00 (0.71)6.81 (0.69)6.04 (0.62)5.19 (0.53)4.12 (0.42)
    1.5m8.65 (0.88)8.55 (0.87)6.61 (0.67)6.38 (0.65)5.13 (0.52)4.07 (0.42)
    1.0m10.28 (1.05)8.30 (0.85)6.40 (0.65)6.80 (0.69)5.06 (0.52)4.01 (0.41)
    0m11.62 (1.19)8.10 (0.83)6.17 (0.63)7.17 (0.73)4.97 (0.51)3.92 (0.40)
  • Other features

    Protected bucket cylinder hoses
    To extend life and improve visibility, bucket cylinder hoses have been well protected through the arm.
    Boom cylinder protector
    Thanks to a V-shaped thick plate, the boom cylinder is protected from unexpected damage caused by the breaker or other attachments, rocks, loading onto a truck etc.
    Well protected front attachment hoses
    To prevent accidental damage to the front hoses, they are routed through the swing bracket. Also, a metal cover plate located at the back of the boom protects the operator under a hose breakage.
    Dozer cylinder hoses
    With a more efficient two-piece design, the KX61-3's dozer cylinder hoses can be quickly replaced on site.
    Deluxe cabin
    For you to work longer, our larger cab offers maximum comfort. It provides more legroom, an adjustable suspension seat, a radio installation kit and excellent visibility. Cabs and canopy offer ROPS/FOPS safety.
  • Safety

    Safety lock system
    To prevent unexpected machine movements, the safety lever must be raised to lock out the travel levers and pilot controls before the engine starts.
    Engine/Fuel system
    Double-element air cleaner, Electric fuel pump, ROPS (Roll-Over Protective Structure, ISO 3471), FOPS (Falling Objects Protective Structure) Level 1, weight adjustable full suspension, seat belt, Hydraulic pilot control lever with wrist rests, travel lever with foot pedals, cab heater for defrost & dumping, emergency exit hammer, front window supported by 2 gas flaps, 12 V power source for radio stereo, location for 2 speakers and radio
    ROPS (Roll-Over Protective Structure, ISO 3471), FOPS (Falling Objects Protective Structure) Level 1, weight adjustable full suspension, seat belt, Hydraulic pilot control lever with wrist rests, travel lever with foot pedals.
    Safety system
    Engine start safety system on left console, Travel Lock System on left console, swing lock system, Boom anti-fall circuit in control valve.
