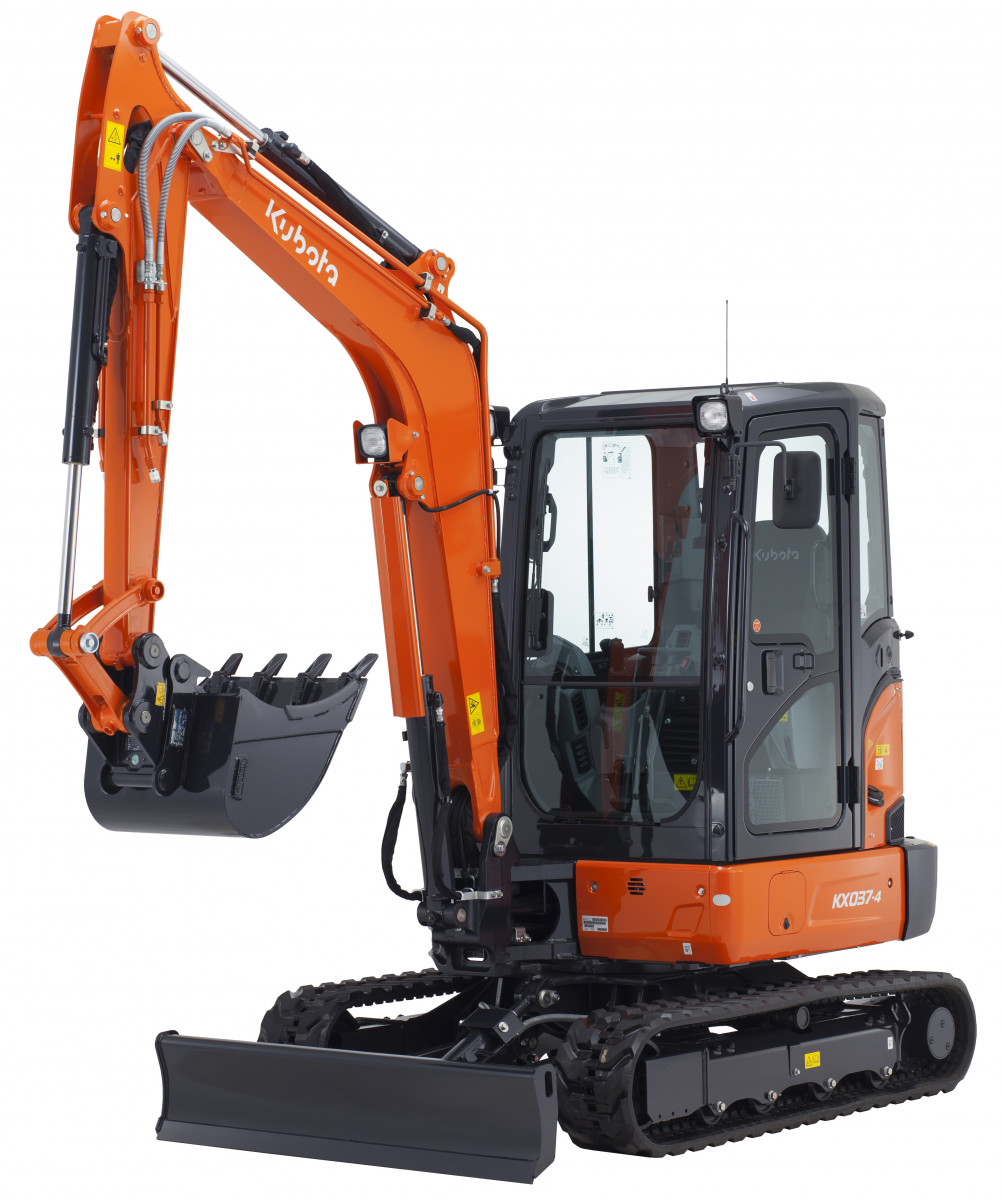

KX037-4 GL Kubota excavator specs & dimensions (2019 - 2026)

ROPS/OPG (Top Guard, Level, Canopy and
You will work confidently and quietly, knowing that you are protected against accidental overrides and falling objects through the ROPS/OPG canopy and cab.
Cabin/Canopy
2 working lights on canopy, front guard (OPG, Front Guard Level I, ISO 10262)
Working equipment
1525 mm arm, 1 working light on boom, ROPS (Roll-over Protective Structure, ISO3471), OPG (Operator Protective Guard, Top Guard Level I, ISO 10262), cabin heater for defrosting and dumping, weight adjustable full suspension seat (fabric seat), Retractable seatbelt, 2 work lights at cab, radio installation kit prepared to the cab (antenna, 2 speakers, bracket for radio), Hydraulic pilot control lever with wrist rests, front LCD panel with diagnostic function, front window power assisted with gas damper, front guard mounting points, switches and harnesses for beacon lighting, 12V power source, emergency exit hammer.
Canopy
ROPS (Roll-over Protective Structure, ISO3471), OPG (Operator Protective Guard, Top Guard Level I, ISO 10262), weight adjustable full suspension seat (PVC seat), Retractable seatbelt, Hydraulic pilot control lever with wrist rests, Front LCD panel with diagnostic function, front protection mounting points, switch for beacon, 12V

B. 2-speed Travel Switch
The travel switch located on the dozer lever works with Auto Shift to ensure easy operation.
Kubota Original Direct Injection Engine
Kubota's reliable 24. 2 ps / 17. 8 kw engine provides plenty of power for digging and lifting, yet minimises noise, vibration and fuel consumption.
Auto Shift
The auto shift system automatically shifts between high and low during travel, depending on traction force and terrain. This achieves smoother operations when dozing and turning.
Auto Idling System
When the control levers on the KX037-4 are in neutral for more than 4 seconds, the engine is automatically idle. Move each control lever and motor speed increases instantly. Auto-idling not only reduces operating costs and fuel consumption but also decreases noise levels and exhaust emissions.
Fuel Tank Buzzer
The KX037-4 is also equipped with a fuel tank buzzer that indicates how much fuel is in the tank when filling, helping to prevent costly fuel waste and potentially dangerous spill situations.
Standard Equipment Engine/Fuel system
KUBOTA genuine engine, double-element air cleaner, fuel level indicator buzzer, battery isolator, water separator with drain cock, auto idler.
Safety system
engine start safety system on the left console, Hydraulic lock-up system, swing negative brake, travel negative brake, Kubota genuine theft.

Proportional Controlled AUX Circuit with 12% Greater Flow
You can now conveniently program up to five different oil flow rates for specific attachments via the digital control panel. No tools or manual adjustments are required. Even with a maximum AUX1 circuit oil flow of up to 61.6 l/min, a greater choice of auxiliary equipment can be operated.
Third-line Hydraulic Return
When operating one-way hydraulic attachments, the oil returns directly to the tank, not through the control valves. This reduces the possibility of oil contamination, reducing back pressure and increasing flow efficiency.
Large-capacity Variable Displacement Pumps
KX037-4 power matched boom, arm and bucket movements are the best in the industry thanks to large-volume variable displacement pumps. It provides precise control and superior digging force you need to work smoothly and efficiently.
Working equipment
AUX2 (proportional control), adjustable maximum oil flow to auxiliary circuit (AUX2)
Hydraulic system
2 variable displacement pumps and 1 gear pump, pressure accumulator, hydraulic pressure test ports, straight travel circuit, auxiliary hydraulic circuit to the arm end, adjustable maximum oil flow on auxiliary hydraulic circuit (AUX1), auxiliary switch (AUX1) on right control lever (proportional), third line hydraulic return.

Undercarriage
Short sloped rubber crawlers (300mm), 2-speed travel, autoshift, 4 double flange track rollers on each track, 1 upper run roller.

Front Digital Panel
Following the excellence of Kubota's Intelligent Control System, the new digital panel puts comfort at the fingertips of the operator. With a simpler button operation, the user-friendly digital panel positions itself on the front right corner of the operator. This operator-facing wider display greatly enhances visibility. By making easier access, easier settings, easy to read indicators and alerts you are always informed about the operating status of the excavator.
A. Deluxe Suspension Seat
Kubota's high back suspension seat has been designed for maximum operator comfort and to minimize fatigue during extended machine operation.The deluxe recirculation seat offers weight compensation, fixed adjustable wrist rest and retractable seat belt.

Tie Down Points on the Top Frame
With four locking points on the upper frame, you can securely tie the KX037-4 to a trailer for safer and easier transport.
Safety Devices
To enhance safety during operation, boom, arm and dozer can be equipped with optional safety valves to prevent unexpected drop in front attachments. An optional overload buzzer warns of possible instability when handling heavy materials.
Front Window Guard Mounting Points
Window guards can be mounted on the front window to protect against flying debris.
Others
Tool storage space, locking points on top frame
