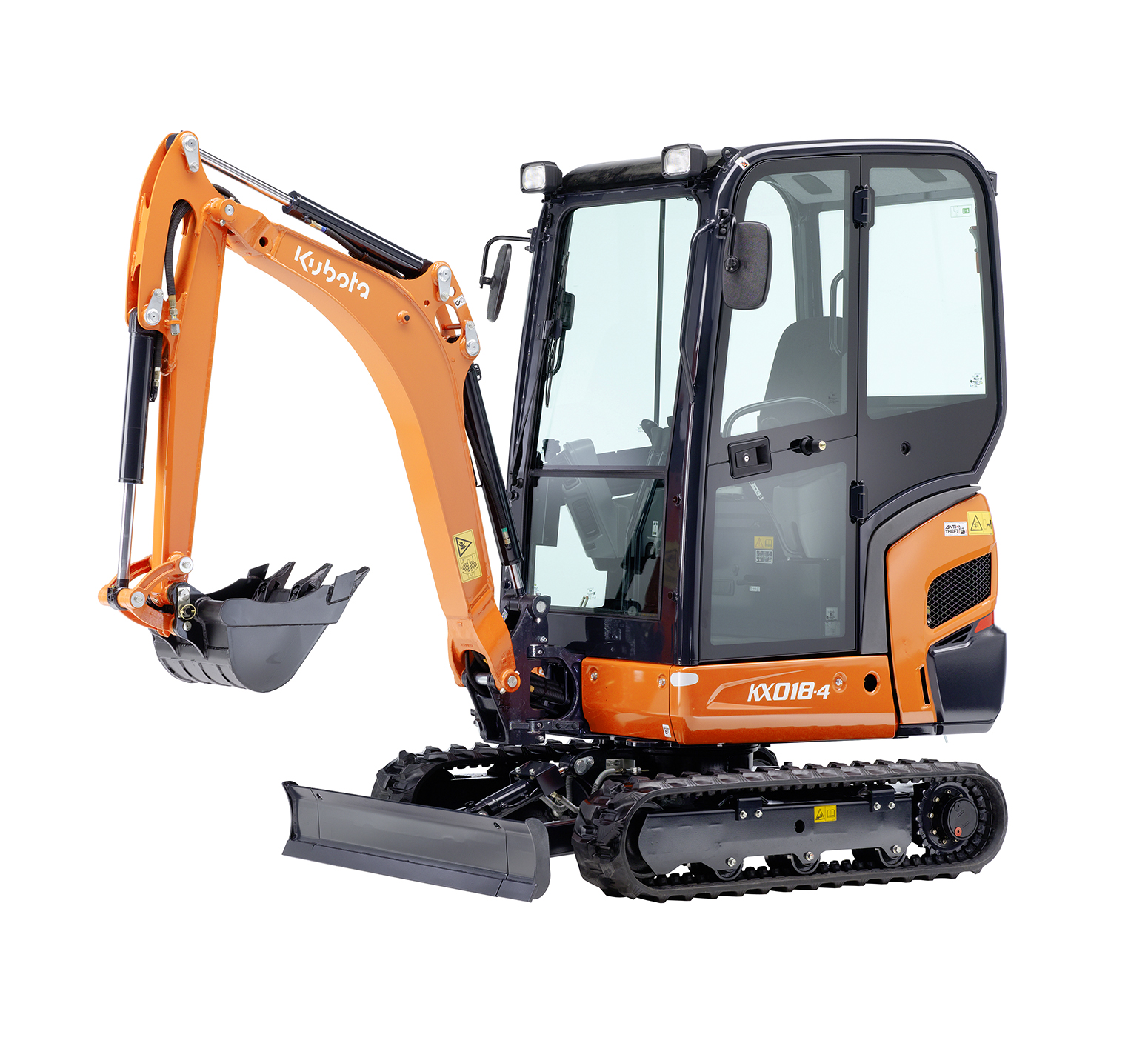

KX018-4 G Kubota excavator specs & dimensions (2021 - 2026)

Kubota KX018-4 G is a mini excavator manufactured since 2021. It has a weight of 1.79 tons and a track width of 230 mm. The transp…

Kubota KX018-4 G is a mini excavator manufactured since 2021. It has a weight of 1.79 tons and a track width of 230 mm. The transport dimensions are 3.71 meters in length, 1.3 meters in width, and 2.35 meters in height. The bucket width is 0.45 meters with a capacity of 0.04 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Kubota KX018-4 G

Technical specs - KX018-4 G Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.79 t
Transport length
3.71 m
Transport width
1.3 m
Transport height
2.35 m
Bucket capacity
0.04 m³
Bucket capacity max.
0.04 m³
Bucket width
0.45 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.92 m
Dredging depth
2.38 m
Tear-out force
16.2 kN
Engine manuf.
Kubota
Engine type
D902BH
Engine power
11.8 kW
Displacement
0.898 l
Revolutions at max torque
2300 rpm
No. of cylinders
3
Cylinder bore x stroke
72x73.6 mm
Emission level
V

More technical details, like: bucket capacity min., standard tyres, model series, dimension lxwxh, max. torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Kubota KX018-4 G FAQ

When was the Kubota KX018-4 G manufactured?

The Kubota KX018-4 G was first produced in 2021.

How much does the Kubota KX018-4 G weigh?

The Kubota KX018-4 G weighs 1.79 tons.

What are the transport dimensions of the Kubota KX018-4 G mini excavator?

The Kubota KX018-4 G has a transport length of 3.71 meters, a transport width of 1.3 meters, and a transport height of 2.35 meters.

What is the track width of the Kubota KX018-4 G mini excavator?

The Kubota KX018-4 G mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Kubota KX018-4 G mini excavator?

The Kubota KX018-4 G has a dredging depth of 2.38 meters and a maximum horizontal reach of 3.92 meters.

What is the tear-out force of the Kubota KX018-4 G mini excavator?

The Kubota KX018-4 G mini excavator has a tear-out force of 16.2 kN.

What are the bucket specifications of the Kubota KX018-4 G mini excavator?

The Kubota KX018-4 G has a bucket capacity of 0.04 cubic meters, a maximum bucket capacity of 0.04 cubic meters, and a bucket width of 0.45 meters.

What driver protection feature does the Kubota KX018-4 G have?

The Kubota KX018-4 G has a cabin for driver protection.

How much is a Kubota KX018-4 G Mini excavator (2021u20132025) worth?

The residual value of the Kubota KX018-4 G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
