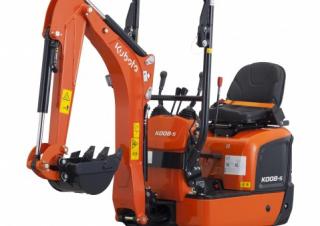

KX008-5 Kubota excavator specs & dimensions (2021 - 2026)

Kubota KX008-5 is a mini excavator manufactured since 2021, with a weight of 0.98 tons. It features a track width of 180 mm, a tra…

Kubota KX008-5 is a mini excavator manufactured since 2021, with a weight of 0.98 tons. It features a track width of 180 mm, a transport length of 2.75 meters, a transport width of 0.8 meters, and a transport height of 0.86 meters. The machine has a tear-out force of 10 kN and a maximum horizontal reach of 3.02 meters. The bucket width is 0.35 meters, with a maximum bucket capacity of 0.022 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Kubota KX008-5

Technical specs - KX008-5 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.98 t
Transport length
2.75 m
Transport width
0.8 m
Transport height
0.86 m
Bucket capacity max.
0.02 m³
Bucket width
0.35 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.02 m
Dredging depth
1.72 m
Tear-out force
10 kN
Model series
K
Engine manuf.
Kubota
Engine type
D722BH5
Engine power
7.6 kW
Displacement
0.719 l
Revolutions at max torque
2050 rpm
No. of cylinders
3
Cylinder bore x stroke
67x68 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., standard tyres, dimension lxwxh, max. torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Kubota KX008-5 FAQ

When was the Kubota KX008-5 manufactured?

The Kubota KX008-5 was first produced in 2021.

How much does the Kubota KX008-5 weigh?

The Kubota KX008-5 weighs 0.98 tons.

What are the transport dimensions of the Kubota KX008-5 mini excavator?

The Kubota KX008-5 has a transport length of 2.75 meters, a transport width of 0.8 meters, and a transport height of 0.86 meters.

What is the track width of the Kubota KX008-5's undercarriage?

The Kubota KX008-5 has a track width of 180 mm.

What are the excavation performance specifications of the Kubota KX008-5 mini excavator?

The Kubota KX008-5 mini excavator has a dredging depth of 1.72 meters and a maximum horizontal reach of 3.02 meters.

What is the tear-out force of the Kubota KX008-5 mini excavator?

The Kubota KX008-5 mini excavator has a tear-out force of 10 kN.

What are the bucket specifications of the Kubota KX008-5 mini excavator?

The Kubota KX008-5 mini excavator has a maximum bucket capacity of 0.02 cubic meters and a bucket width of 0.35 meters.

What operator safety and support features does the Kubota KX008-5 have?

The Kubota KX008-5 is equipped with a roll-over bar for driver protection.

How much is a Kubota KX008-5 Mini excavator (2021u20132025) worth?

The residual value of the Kubota KX008-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
