KH18 Kubota excavator specs & dimensions (1982 - 2026)

Kubota KH18 is a mini excavator manufactured since 1982, with a weight of 4.5 tons. It features a track width of 400 mm, a transpo…

Kubota KH18 is a mini excavator manufactured since 1982, with a weight of 4.5 tons. It features a track width of 400 mm, a transport length of 5.47 meters, a transport width of 1.98 meters, and a transport height of 2.35 meters. The machine has a dredging depth of 3.57 meters and a maximum horizontal reach of 5.63 meters. The bucket width is 0.65 meters, and the bucket capacity is 0.18 cubic meters.

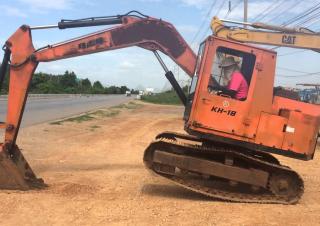

Mini Excavators Kubota KH18

Technical specs - KH18 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.5 t
Transport length
5.47 m
Transport width
1.98 m
Transport height
2.35 m
Bucket capacity
0.18 m³
Bucket width
0.65 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.63 m
Dredging depth
3.57 m
Engine manuf.
Kubota
Engine type
S2200-D
Engine power
35 HP
Displacement
2.231 l
Revolutions at max torque
2200 rpm
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, tear-out force, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota KH18 FAQ

When was the Kubota KH18 manufactured?

The Kubota KH18 was first produced in 1982.

How much does the Kubota KH18 weigh?

The Kubota KH18 weighs 4.5 tons.

What are the transport dimensions of the Kubota KH18 mini excavator?

The Kubota KH18 has a transport length of 5.47 meters, a transport width of 1.98 meters, and a transport height of 2.35 meters.

What is the track width of the Kubota KH18 mini excavator?

The Kubota KH18 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Kubota KH18 mini excavator?

The Kubota KH18 mini excavator has a dredging depth of 3.57 meters and a maximum horizontal reach of 5.63 meters.

What are the bucket specifications of the Kubota KH18 mini excavator?

The Kubota KH18 mini excavator has a bucket capacity of 0.18 cubic meters and a bucket width of 0.65 meters.

What operator safety features does the Kubota KH18 have?

The Kubota KH18 has a cabin for driver protection.

How much is a Kubota KH18 Mini excavator (1982u20132025) worth?

The residual value of the Kubota KH18 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kubota KH18 overview

Kubota KH18 features overview

A versatile machine for tt ldeal for Crowded Work 5 The Kubota KH-18 Excavator was designed as the one universal machine, which has high operating performance under today's diversified and complex working conditions. The KH-18 is equipped with the largest bucket (standard capaziw: 0.18 m3) for the 4-ton class, thus ensuring trenching performances that are closely competitive with those larger machines. This capacity combined with the sharp swing and rapid movement of smaller machines makes it the ideal excavator for this new age. Dirt can be taken up long ranges. Maximum amounts to 5.77 metres plus up to 3.57 Mete rs. It has Powerfu I movement for its small size. and excavated with an excavation radius of a depth of the First O-cylinder engine in this class This is a resilient 6-cylinderDiesel engines have been specially developed by KUBOTA specifically f or construction equipment. With an efficient design he features extremely good balance at simultaneous low speed on low voltature depth pro per specifi cational level

The G-Rease always stays inside. Low damage even when used for a long time, and there is almost. Minimal spaces necessary to operate no time and effort required in order to adjust Crawler. (unit: mm) Simple 2-lever operation Operation is simple, requiring not excessive f orce is made. Booms and buckets can be operated while the arm is pivoted. Controls are quickly mastered, and fatigue is not too oversized even after long operating hours. Maximum standard equipment of shovel capacity in 4t class For this class, Standard Bucket power of 0.18 m3 is maximum. There is naturally a great difference in excavated circumference. And blade clawing have been specially designed to significantly improve their ‘bit' above all. Rear axle radius min back peel Min. Pigmenta Deep perpendicular excavation excavator dig Bucket List angle is 176th Perpendicular bores can be manufactured at about 2 meters. Free swing wvel operations at the point on site has been specifically "behindly" fitted with an eyepiece that allows you to see how much more precisely your headrestling machine works."

Dimensions and weight

ModelKubota Excavator KH-18
Weight:4500 kg 4600 kg for wide crawler type"
Bucket widths:350 550 650 mm (standard: 550 mm) ;"
13-49/64"" 21-21/32"" 25-19/32"" (standard: 21-21/32"")"
Bucket capacity:0.08 m3 ~ 0.18 m3 (standard: 0.18 m3)
EngineDesignation/type:Kubota diesel engine S2200-D
Output power:35 PS/2200 rpm"
Total displacement:2231 cc"
Fuel tank:75 l
Hydraulic pump:Gear pump 2-gang
Main relief set pressure:175 kg/cm2
Pump outlets:35 l/min x 2
DimensionsOverall length (for transport) :5470 mm (215-23/64"")"
Overall height (for transport) :2350 mm ( 92-33/64"")"
Overall width:1980 mm (77-61/64"") ; 2055 mm (80-29/32"") for wide crawler type"
Overall carwler width:1840 mm (72-7/16"") ; 2055 mm (80-29/32"") for wide crawler type"
Rear turning radius:1520 mm (59-27/32"")"
Tumbler center dimension:1893 mm (74-17/32"")"
Crawler center dimension:1440 mm (56-11/16"")"
Minimum ground clearance:302 mm (11-57/64"") 12"
Operation performanceMaximum excavation depth:3570 mm (140-35/64"")"
Maximum excavation height:4900 mm (192-29/32"")"
Maximum dumping height:3290 mm (129-17/32"")"
Maximum excavation radius:5770 mm (223-15/64"")"
Travelling speed:1.5 km/h
Pivot speed:8.3 rpm
Climbing ability:30º
Ground-contact pressure:0.269 kg/cm2 [crawler shoe width 400 mm (15-3/4"") ]"
0196 kg/cm2 for wide crawler type"
[crawler shoe width 550 mm (21-21/32"") ]"
