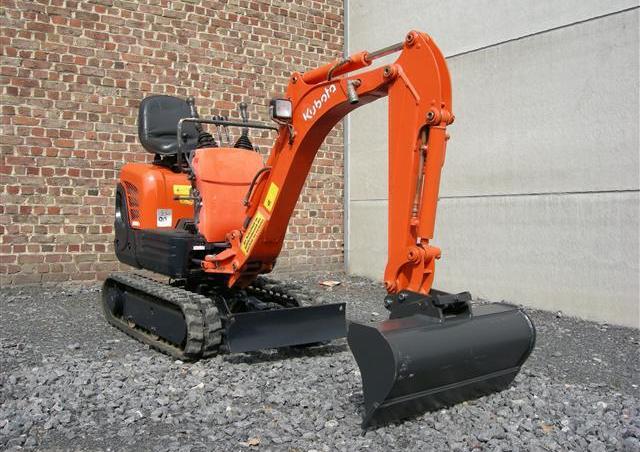

K008-3 Kubota excavator specs & dimensions (2004 - 2026)

Kubota K008-3 is a mini excavator manufactured since 2004, with a weight of 0.98 tons. It features a track width of 180 mm, a tran…

Kubota K008-3 is a mini excavator manufactured since 2004, with a weight of 0.98 tons. It features a track width of 180 mm, a transport length of 2.75 meters, a transport width of 0.86 meters, and a transport height of 2.23 meters. The machine has a tear-out force of 9.8 kN, a dredging depth of 1.72 meters, and a maximum horizontal reach of 3.07 meters. The bucket width is 0.368 meters, and the bucket capacity is 0.022 cubic meters.

K008-3

Years of manufacture: 2004—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - K008-3 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.98 t

Transport length: 2.75 m

Transport width: 0.86 m

Transport height: 2.23 m

Bucket capacity: 0.022 m³

Bucket width: 0.368 m

Track width: 180 mm

Max. Reach horizontal: 3.07 m

Dredging depth: 1.72 m

Tear-out force: 9.8 kN

Engine manuf.: Kubota

Engine type: D722-BH-5

Engine power: 7.4 kW

Displacement: 0.719 l

Revolutions at max torque: 2050 rpm

No. of cylinders: 3

Cylinder bore x stroke: 67x68 mm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, model series, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Kubota K008-3 FAQ

When was the Kubota K008-3 manufactured?

The Kubota K008-3 was first produced in 2004.

How much does the Kubota K008-3 weigh?

The Kubota K008-3 weighs 0.98 tons.

What are the transport dimensions of the Kubota K008-3 mini excavator?

The Kubota K008-3 has a transport length of 2.75 meters, a transport width of 0.86 meters, and a transport height of 2.23 meters.

What is the track width of the Kubota K008-3 mini excavator?

The Kubota K008-3 mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Kubota K008-3 mini excavator?

The Kubota K008-3 mini excavator has a dredging depth of 1.72 meters and a maximum horizontal reach of 3.07 meters.

What is the tear-out force of the Kubota K008-3 mini excavator?

The Kubota K008-3 mini excavator has a tear-out force of 9.8 kN.

What are the specifications of the primary work tool bucket on the Kubota K008-3 mini excavator?

The Kubota K008-3 mini excavator has a bucket with a capacity of 0.022 cubic meters and a width of 0.368 meters.

How much is a Kubota K008-3 Mini excavator (2004u20132025) worth?

The residual value of the Kubota K008-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kubota K008-3 overview

Engine / Driveline and transmission

Kubota E-TVCS engine
Efficient combustion, created by the unique three-vortex combustion system on our engine, reduces exhaust emissions, noise and vibration. Due to its arrangement, most components are also easily reached for faster maintenance. For added protection, a hinged rollover guard structure is fitted as standard on the K008-3. Folding down the ROPS allows you to easily transport the mini excavator onto trucks and work under doors in interior spaces.
Fully opening engine cover
The tipping operation of the engine cover releases most of the engine, providing easier access to components.

Tyres / Tracks

Adjustable track gauge
With the simple, single-lever operation, the hydraulically adjustable track width of the K008-3 reduces in seconds down to 700 mm to allow navigation under tight space conditions. Conversely, you can widen gauge up to 860 mm height and thus ensure a 15% higher level even when operating with hydraulic breakers.

Dimensions and weight

Lift Point Height	Lifting point radius (1m)	Lifting point radius (2m)	Lifting point radius (2.5m)
Over-front	Over-side	Over-front	Over-side	Over-front	Over-side
Blade Down	Blade Up	Blade Down	Blade Up	Blade Down	Blade Up
2.0 m	-	-	-	2.3 (0.23)	1.8 (0.18)	1.5 (0.15)	-	-	-
1.0 m	-	-	-	2.4 (0.24)	1.7 (0.18)	1.4 (0.14)	2.0 (0.20)	1.2 (0.12)	1.0 (0.10)
0 m	7.1 (0.72)	4.5 (0.46)	3.4 (0.34)	2.6 (0.27)	1.6 (0.16)	1.3 (0.13)	1.8 (0.19)	1.1 (0.12)	0.9 (0.09)
-1.0 m	4.2 (0.43)	4.2 (0.43)	3.4 (0.34)	1.5 (0.16)	1.5 (0.16)	1.2 (0.13)	-	-	-

Machine weight	Rubber crawler kg	980
m3 Bucket capacity	std. SAE/CECE"	0.022/0.018
Bucket	with side teeth mm	368
width	without side teeth	mm	350
	Model		D722-BH-5
Engine	Type		Water-cooled	diesel engine E-TVCS (Economical	ecological type)"
Output ISO90249	PS/rpm	10.2/2050
kW/rpm	7.4/2050
	Number of cylinders		3
	Bore X stroke	mm	67 X 68
	Displacement	cc	719
Overall length	mm	2750
Overall height mm	2230
Swivelling speed	rpm	8.3
Rubber	shoe width	mm	180
Tumbler	distance	mm	900
Dozer size (width X height)	mm	700/860 × 200
Hydraulic pumps	P1	P2"		Gear pump
Flow rate	e /min	10.5 + 10.5
Hydraulic pressure	MPa (kgf/cm2 )	16.7 (170)
Max. digging	force	Arm	kN (kgf)	4.5 (460)
	Bucket	kN (kgf)	9.8 (1000)
Boom swing angle (left/right)	deg	55/60
Auxiliary	Flow rate	/min	21.0
circuit	Hydraulic pressure	MPa (kgf/cm2 )	170
Hydraulic reservoir		12.5
Fuel tank capacity	€	12.0
Max. travelling speed	km/h	2.0
Ground contact pressure	kPa (kgf/cm2 )	24.3 (0.25)
Ground clearance	mm	150

Other features

Quick-release bucket pins
This time-saving feature enables quick removal and replacement of attachments without tools.
Toolbox/manuals
A practical toolbox is conveniently located under the driver's seat. In addition, the operating instructions are stored in a compartment attached to the back of the seat.

Safety

Protected hydraulic service port pipes
With the K008-3, you will never have to replace the hydraulic service connection pipes again. To reduce the risk of damage to the hydraulic line, the servicing ports on the K008-3 are hidden inside the boom and its service connections are conveniently located at the end of the boom.
Enhanced hose protection
With all the hydraulic hoses unique in the boom and the boom cylinder located on top of the boom, the K008-3 increases service life through outstanding protection.
