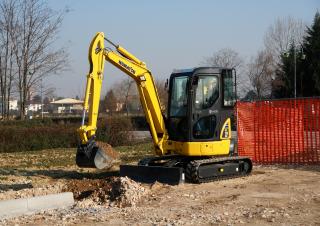

PC35MR-3 Komatsu excavator specs & dimensions (2008 - 2017)

Total versatility
Tailor-made confi gurations, standard auxiliary line 1 or 2-way for attachments, Ideal for a variety of applications.
Outstanding performances
Optimum power and digging speed, Superior stability and safety in all conditions, Fast and precise movements.
Work in tight spaces
The new PC35MR-3 short tail delivers optimum performance and digging speed, even in confi ned spaces where traditional machines cannot work: yards, road works, demolition sites, sewerage etc. Rugged and very stable it guarantees maximum safety and offers complete operator confidence under all working conditions.
Customisation
Many confi gurations are available so that you can choose the perfect machine for use: long or short arm, cabin or canopy shoes, rubber, steel or road liner shoes. The 1 / 2 way auxiliary hydraulic circuit allows to use a wide range of work tools such as a hammer, clamshell bucket, a auger etc. Changing between the two options is simply done by means of a valve under a small engine hood on the side of the machine.
Standard Equipment
ROPS (ISO 3471) / FOPS (ISO 10262) Tilt cab with heater, sliding door, 300 mm rubber shoes, 1,370 mm digging arm, Two speeds with automatic changeover, 1 / 2-way auxiliary hydraulic circuit to the arm, blade, Adjustable suspension seat, lift cylinder guard, working light on boom, 2 rearview mirrors, travel acoustic alarm, KOMTRAX - Komatsu satellite monitoring system, Boom and arm safety valves, overload warning device (for EU countries only).
Optional Equipment
ROPS (ISO 3471) / FOPS (ISO 10262) canopy, 300 mm steel shoes, 300 mm road liner, 1,720 mm digging arm, air conditioner, bucket area (300 - 650 mm), 1,300 mm trench cleaning bucket, valves on the bucket cylinder, Bucket reinforcement with lift boom, boom and arm protection valves, overload warning device (for non-EU countries only), blade safety valve, venting valves for attachments, rotating beacon, rear view mirror, cab/cap Work lights, auxiliary cabin Rear work light, proportional control for attachment to joystick, radio presetting, Komatsu mechanical quick coupler, handle with Kmax teeth.

Automatic down-shift
This feature automatically adjusts the hydraulic travel motor for the job at hand: maximum adjustment force for faster movement or minimum displacement force for high tractive pull. This process requires no attention from the operator. Two-speed tracking is operated via a switch on the blade lever.
SWING SYSTEM
The new generation engine has been designed to meet the most stringent emission checks. Model...........................................Komatsu 3D88E Type.................
ELECTRIC SYSTEM
Type...............................Komatsu CLSS main pump.....1 2 variable displacement pump Max Pump fl,1 36.1 2 + 19.8 ltr/min Max operating pressure...) 26 MPa (260 bar) Hydraulic motors: travel and drive motor with variable displacement swings u.v.uv 1 fi xed drawment hydraulic cylinder (bohren lift): boom etc.

Fuel tank..............................................44 ltr Radiator and System.3,3 ltr Engine oil (refill)................................................7,2 ltr Hydraulic system....
TRANSMISSION
Type....................2 RPM hydrostatic transmission, controlled and steered by means of two levers and two pedal hydraulic motors............... 2 Axial piston reduction system

Cutting-edge hydraulic circuit
CLSS (Closed-Center Load Sensing System), Perfect Control even in combined operations, Fast and Precise Movements
Komatsu CLSS
The CLSS Hydraulic Circuit (Closed Center Load Sensing System) guarantees power, speed and perfect control for all movements including simultaneous. Combining the variable displacement pump and CLSS allows operators to perform all required movements with maximum effi ciency regardless of load or rpm. Unique CLSS features are perfectly complemented by the hydraulic servo controls that are far from being easiest to operate providing extremely precise manoeuvres with minimal effort.

Walk-Around
The new compact PC35MR-3 mini-excavator is the result of Komatsu's expertise and technology acquired over the past 80 years. It has been designed and engineered with constant attention to customer needs from around the world.The end product is a userfriendly machine with first class performances.
First-class operator comfort
Spacious working environment, sliding doors, servo controls of Pressure Proportional Control (PPC)
An optimal work environment
Despite its compact size, the PC35MR-3 offers unparalleled comfort. The spacious cab was designed with exceptional care for details, and the working environment is quiet and comfortable. Special attention is given to the operator: ergonomic and dedicated PPC controls as well as optional effi cient air conditioning system and ventilation system ensuring optimum thermal comfort. Last but not least, the upper rail sliding door system makes very easy and safe getting in and out of the machine in any situation.

X-frame
The new X-frame ensures maximum stress resistance and optimum stress distribution. Its shape makes the machine much stiffer and more reliable. In addition, it facilitates the regular undercarriage cleaning process and spoiling process.
Komatsu Satellite Monitoring System
KOMTRAX is a revolutionary machine tracking system designed to save you time and money. You can now monitor your equipment anytime and anywhere. Use valuable machine data received through the KOMTRAX website to optimise your maintenance planning and performances. With KOMTRAX1 you can: Check when & where your machines are at work, Be aware of unauthorized machine use or movement and send a message by e-mail for safety alarms For more details on KOMTRAXA, please ask your Komatsu dealer about the latest KOMTRAX1 brochure.
BLADE
Type........................ Electro-welded, single piece structure Width Height.........1,740 355 mm Max lifting mechanism above ground...360 mm Max depth below ground 3.90 mm
UNDERCARRIAGE
Operating weight with standard bucket, fully serviced, 75 kg operator (ISO 6016). Operating weight with cab and rubber shoes......................... 3,725 kg Operating weight with cabin and steel shoes.......3,835 kg Canopy...................................................................150 kg (optional) Central low X-frame and carriage frame with box section. Track rollers (each side).

Easy maintenance
Quick access to all daily inspection points, tilting cab for maintenance work, Extended 500-hour service intervals Komatsu Satellite Monitoring System
Tilting cab
The wide-opening engine hoods provide quick access to the daily inspection points. The fuel and hydraulic oil tanks are located under the side bonnet, in a secure easily accessible position. In addition, the cab tilts back for vital maintenance tasks without any problems.
Easier repairs
ORFS hydraulic canopy seal connectors and DT electrical plugs increase machine reliability, making repairs quicker and easier. Special technical solutions allow the interval to be extended for usual maintenance operation - such as pin lubrication and engine oil changes - by up to 500 hours.
