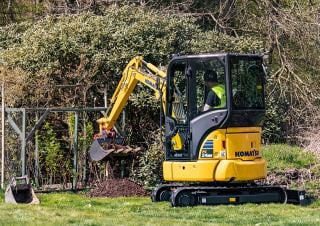

PC24MR-5 Komatsu excavator specs & dimensions (2021 - 2026)

Safety first
LED working lights (option), Dual Lock System for PPC controls, secondary engine shutdown switch, seat belt safety indicator, boom and arm hose burst safety valves as well as overload warning device (standard)
speed, even in confined spaces work: yards, road works, demolition safety and offers complete operator confidence in any
The new PC24/26MR-5 short tail delivers optimal performance and digging where traditional machines can't build sites, sewers etc. Robust and very stable it guarantees maximum working conditions.
Optimal jobsite safety
To enhance job site safety, the PC24/26MR-5 includes a double lock lever neutral detection system for travel and work equipment levers as well as a seat belt security indicator and secondary engine cut-off switch.
Safety equipment
Electric horn Acoustic travel alarm Boom and arm safety valves plus overload warning device Lift cylinder guard Rear view mirror Battery main switch ROPS (ISO 12117) - OPG (ISO 10262) Stage 1 Secondary engine cut-off switch Seat belt safety indicator Double lock system for PPC controls Blade fuse valve Rotating light
Lighting system
Work lights on the boom, 2 front work lights on the cab, rear work lights on the cab LED lighting system: working lights on the boom, 2 front work lights on the cab, rear work lights on the cab

Powerful and environmentally friendly
low-consumption EU Stage V engine, completely renewed for the EU market, Komatsu fuel saving technology.
and efficient. With ultra-low
Komatsu's EU Stage V engine is productive and reliable, offering a lower environmental impact and superior performance to reduce operating costs, letting the operator work in complete peace of mind.
level. The fuel filler is located low filter and fuel pre-filter with water
with access directly from the ground for refueling in a safe and easy-to-reach position. A large fuel separator protects the engine.
Engine
Komatsu 3D76E-6 diesel engine EU Stage V compliant Automatic two-speed travel control Alternator 12 V / 40 A Starter motor 12 v /, 4 kw Batteries 12 V / 45 Ah

maximum efficiency, regardless of
The CLSS (Closed Center Load Sensing System) hydraulic circuit guarantees power, speed and perfect control for all movements, including simultaneous. Combining the variable displacement pump and from CLSS allows operators to carry out all required movements with the load or strainer.
Hydraulic system
Komatsu Closed-Center Load Sensing (CLSS) Hydraulic System PPC Control levers and pedals for steering and travel Adjustable PPC wrist control levers for arm, boom, bucket and swing Hydraulic line for hammer and for 2-way equipment to boom and arm (HCU-A) Proportional controls for attachment to joystick Ventilation valve on service coil Hydraulic quick coupler line 2. Auxiliary hydraulic circuit (HCU-C) 3. Auxiliary circuit for hydraulic powertilt and 4th line for the

(option)
Compact undercarriage of 1450 mm with low step height for easy access & exit (PC24MR-5), hydraulic quick coupler line (option), proportional control for attachments (option)
Powertilt option
Lehnhoff Powertilt is a factory fit. It combines all the advantages of a quick-coupler with a tilt motor and offers on both sides a huge work area of 2 90 swing range. Additional auxiliary lines enable the use of complex attachments such as rotating grapples. Piping is routed over the arm for better protection and durable design. While Lehnhoff Powertilt is perfectly suited to very precise bucket movements, it also fits well for breaker applications.
For any specific job, you can configurations: short or long arm, and efficient operation. You can choose auto 2-speed or fixed
Choose from many available cab or canopy shoes, rubber or steel shoes, Roadliner (PC26MR-5 only). For safe and precise operation of attachments, an optional 1/2-way hydraulic circuit is available. The automatic travel speed shift feature allows smooth 1st speed travel for easy shifting during blade operation by pressing the RPM selector button on the blade lever. A 12 volt power port is also included in the cabin.
Undercarriage
250 mm Rubber shoes (PC24MR-5) 300 mm Rubber shoes (PC26MR-5) 250 mm Steel shoes (PC24MR-5) 300 mm Steel shoes (PC26MR-5) 300 mm Road shoes (PC26MR-5)
PC24/26MR-5
A wide range of buckets and attachments are available. Your Komatsu distributor is ready to assist you in selecting suitable options.
Work equipment
970 mm Arm (PC24MR-5) 1115 mm Arm (PC26MR-5) Boom cylinder protection Protective for boom Safety valve 1320 mm Arm (PC24MR-5) 1370 mm Arm (PC26MR-5) Bucket range (250 - 550 mm) 1300 mm digging cleaning bucket Spoon amplification with lift-
Other equipment
Standard counterweight Alternator valve on bucket cylinder for clamshell bucket utilization (PC26MR-5) Biodegradable oil for hydraulic system Tailor-made paint Further equipment available upon request Serial

First-class comfort
Redesigned cab, Grammer adjustable suspension seat (option), enhanced operator comfort, Multiple accessories around the driver's seat, spring-assisted front window, New boom swing cylinder on left side
Improved filtration
Easy maintenance access directly from ground level, fully-opening engine door and side cover.
high comfort spacious cab offers efficient ventilation system. The
Designed with exceptional care for details, Komatsu is newly a quiet and comfortable working environment. Special attention has been given to the operator, with much more leg room, ergonomic and special PPC controls as well as a wider cab door making access essential now. The swing cylinder was relocated to the left of the excavator to minimize penetration; this makes it easier to work close to a wall.
Excellent serviceability
Redesigned, fully-opening engine door and side cover provide quick access to daily inspection points. For vital maintenance and task situations, front side coverage is easily removable.
window, front window wiper with intermittent feature, floor mat
ROPS (ISO 3471) / OPG (ISO 10262) Level 1 Cab with heater, skylight, pull-on type Front window with locking device, lower Adjustable suspension seat with retractable seat belt 12 volt power supply Drink holder adjustable deluxe suspension seat with retractable seat belt (Grammer) Canopy
