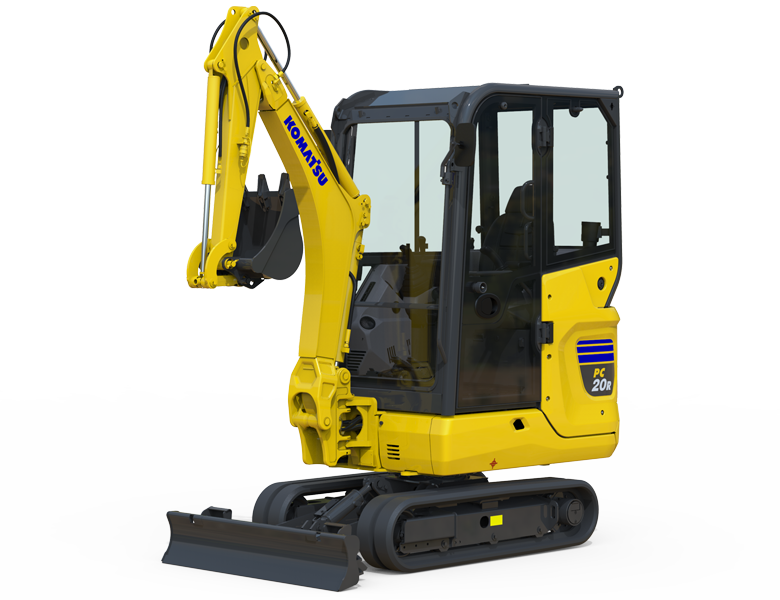

PC20R-5 Komatsu excavator specs & dimensions (2021 - 2026)

Komatsu PC20R-5 is a mini excavator manufactured since 2021, with a weight of 2.04 tons. It features a track width of 230 mm and h…

Komatsu PC20R-5 is a mini excavator manufactured since 2021, with a weight of 2.04 tons. It features a track width of 230 mm and has transport dimensions of 3.845 meters in length, 1.28 meters in width, and 2.37 meters in height. The excavator has a dredging depth of 2.1 meters and a maximum horizontal reach of 3.83 meters. The bucket capacity ranges from 0.022 to 0.028 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Visit Komatsu live at

PC20R-5

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - PC20R-5 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.04 t

Transport length: 3.845 m

Transport width: 1.28 m

Transport height: 2.37 m

Bucket capacity: 0.022 m³

Bucket capacity min.: 0.022 m³

Bucket capacity max.: 0.028 m³

Track width: 230 mm

Driver protection: KbR

Max. Reach horizontal: 3.83 m

Dredging depth: 2.1 m

Model series: PC

Engine manuf.: Komatsu

Engine type: 3D67E-2

Engine power: 11.4 kW

Displacement: 0.778 l

Revolutions at max torque: 2600 rpm

No. of cylinders: 3

Cylinder bore x stroke: 67x74 mm

Emission level: V

More technical details, like: bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Komatsu PC20R-5 FAQ

When was the Komatsu PC20R-5 manufactured?

The Komatsu PC20R-5 was first produced in 2021.

How much does the Komatsu PC20R-5 weigh?

The Komatsu PC20R-5 weighs 2.04 tons.

What are the transport dimensions of the Komatsu PC20R-5 mini excavator?

The Komatsu PC20R-5 has a transport length of 3.85 meters, a transport width of 1.28 meters, and a transport height of 2.37 meters.

What is the track width of the Komatsu PC20R-5 mini excavator?

The Komatsu PC20R-5 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Komatsu PC20R-5?

The Komatsu PC20R-5 has a dredging depth of 2.1 meters and a maximum horizontal reach of 3.83 meters.

What are the bucket capacity specifications of the Komatsu PC20R-5 mini excavator?

The Komatsu PC20R-5 has a bucket capacity of 0.022 mu00b3, with a maximum capacity of 0.03 mu00b3 and a minimum capacity of 0.02 mu00b3.

What operator safety features does the Komatsu PC20R-5 have?

The Komatsu PC20R-5 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Komatsu PC20R-5 Mini excavator (2021u20132025) worth?

The residual value of the Komatsu PC20R-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Komatsu PC20R-5 overview

Komatsu PC20R-5 features overview

Powerful and environmentally friendly
Newly designed for the EU market, low-consumption Stage V engine from EU, Highest stability and lifting capacity thanks to new superstructure and counterweight design, Increased working capacity through top mounted boom cylinders (PC20R-5)

Engine / Driveline and transmission

Improved filtration
Easy maintenance access directly from ground level, fully-opening engine door and side cover.

Dimensions and weight

Type	Komatsu CLSS
Main pumps	1 × variable displacement pump 1 × gear pump
Max. pump flow	36 l/min
Max. operating pressure
PC17R-5	18.5 MPa (185 bar)
PC20R-5	21.0 MPa (210 bar)
Bucket digging force (ISO 6015)
PC17R-5	11.9 kN (1210 kgf)
PC20R-5	15.9 kN (1620 kgf)
Arm crowd force (ISO 6015) PC17R-5
880 mm arm	7.4 kN (750 kgf)
1130 mm arm	5.75 kN (585 kgf)
Arm crowd force (ISO 6015) PC20R-5
965 mm arm	9.9 kN (1010 kgf)
1215 mm arm	7.85 kN (865 kgf)
Undercarriage
Construction	Variable gauge with centre sliding section
Track rollers (each side)	3

Other features

First-class comfort
Redesigned cab, Grammer adjustable suspension seat (PC20R-5) (option), improved ease of use, Low vibration levels with short pitch rubber.
(PC20R-5) (option)
Hydraulic quick coupler line (PC20R-5) (option), proportional control for attachments (option), variable track undercarriage as standard.
Safety first
Double lock system for PPC controls, secondary engine cut-off switch, seat belt safety indicator, lifting of eyes on cab canopy and connecting points to top design, LED working lights (option)

Tables

Working range		PC17R-5	PC20R-5
Arm length	mm	880	1130	965	1215
a Max. digging height	mm	3370	3670	3570	3800
b Max. dumping height	mm	2450	2660	2560	2760
c Max. digging depth	mm	2000	2200	2100	2370
d Max. vertical wall digging depth	mm	1500	1740	1685	1980
e Max. digging reach	mm	3630	3890	3830	4100
f Max. digging reach at ground level	mm	3540	3800	3760	4030
g Min. swing radius	mm	1425	1560	1415	1515

Machine dimensions		PC17R-5	PC20R-5
A Overall length	mm	3800	3845
B Overall height	mm	2370	2370
C Track length	mm	1450	1570
D Track gauge (min)	mm	990	990
E Track gauge (max)	mm	1280	1280
F Shoe width	mm	230	230
Tail swing radius	mm	1120	1120

Drive method	Hydrostatic
Max. travel speeds (Lo / Hi)	2.2 - 4.1 km/h

Model	Komatsu 3D67E-2
Type	Swirl chamber
Engine power
at rated engine speed	2600 rpm
ISO 14396	11.4 kW / 15.3 HP
ISO 9249 (net engine power)	11.8 kW / 15.8 HP
No. of cylinders	3
Bore × stroke	67 × 74 mm
Displacement	778 cm³
