PC16R-3 Komatsu excavator specs & dimensions (2008 - 2021)

Model rating
10,00 / 10

Komatsu PC16R-3 is a mini excavator manufactured from 2008 to 2021, with a weight of 1.57 tons. It features a track width of 230 m…

Komatsu PC16R-3 is a mini excavator manufactured from 2008 to 2021, with a weight of 1.57 tons. It features a track width of 230 mm, a transport length of 3.53 meters, a transport width of 1 meter, and a transport height of 2.32 meters. The machine has a tear-out force of 14.22 kN, a dredging depth of 2.16 meters, and a maximum horizontal reach of 3.735 meters. The bucket width is 0.35 meters, with a bucket capacity ranging from 0.03 to 0.06 cubic meters. Special equipment includes a blade and rubber tracks.

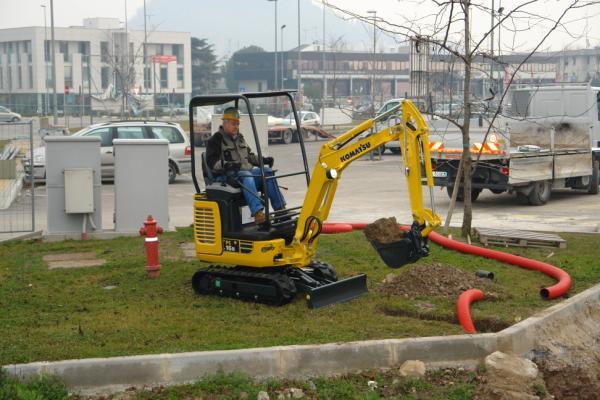

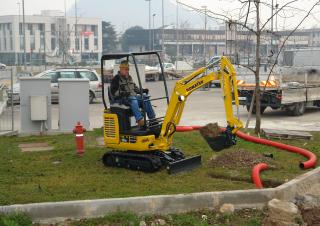

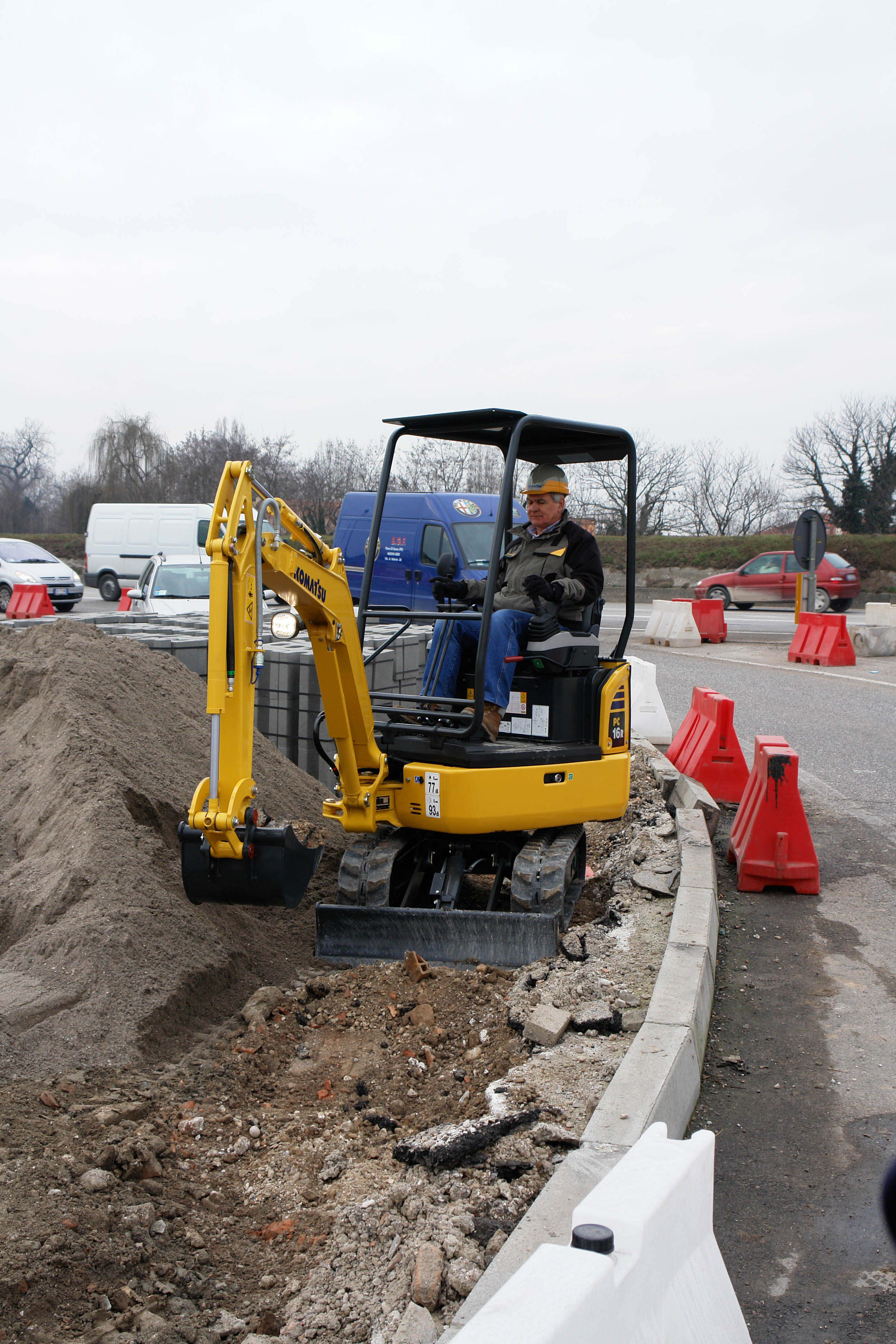

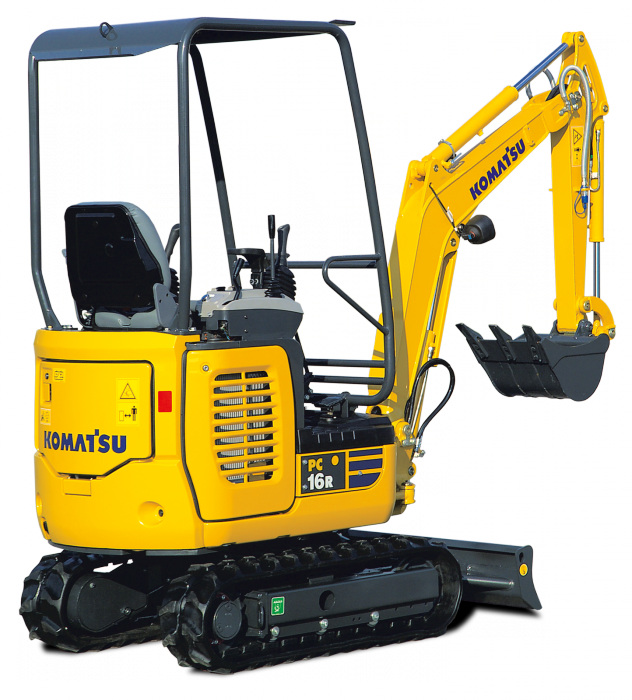

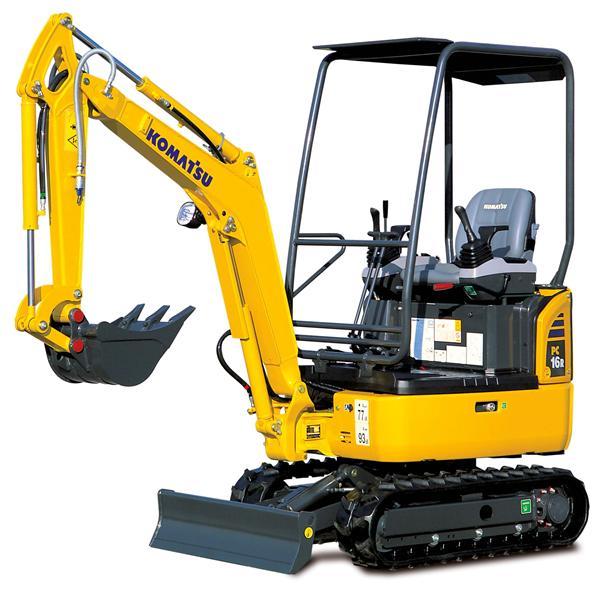

Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3
Mini Excavators Komatsu PC16R-3

Visit Komatsu live at

Technical specs - PC16R-3 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.57 t
Transport length
3.53 m
Transport width
1 m
Transport height
2.32 m
Bucket capacity min.
0.03 m³
Bucket capacity max.
0.06 m³
Bucket width
0.35 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.735 m
Dredging depth
2.16 m
Tear-out force
14.22 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
3D6E 2A
Engine power
11.6 kW
Displacement
0.778 l
Revolutions at max torque
1800 rpm
Max. torque
44.1 Nm
No. of cylinders
3

More technical details, like: bucket capacity, standard tyres, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC16R-3 FAQ

When was the Komatsu PC16R-3 manufactured?

The Komatsu PC16R-3 was manufactured from 2008 to 2021.

How much does the Komatsu PC16R-3 weigh?

The Komatsu PC16R-3 weighs 1.57 tons.

What are the transport dimensions of the Komatsu PC16R-3 mini excavator?

The Komatsu PC16R-3 has a transport length of 3.53 meters, a transport width of 1 meter, and a transport height of 2.32 meters.

What is the track width of the Komatsu PC16R-3 mini excavator's undercarriage?

The Komatsu PC16R-3 mini excavator has a track width of 230 mm on its undercarriage.

What are the excavation performance specifications of the Komatsu PC16R-3 mini excavator?

The Komatsu PC16R-3 mini excavator has a dredging depth of 2.16 meters and a maximum horizontal reach of 3.735 meters.

What is the tear-out force of the Komatsu PC16R-3 mini excavator?

The Komatsu PC16R-3 mini excavator has a tear-out force of 14.22 kN.

What are the bucket specifications of the Komatsu PC16R-3 mini excavator?

The Komatsu PC16R-3 mini excavator has a bucket width of 0.35 meters, with a bucket capacity ranging from 0.03 to 0.06 cubic meters.

What operator safety and support features does the Komatsu PC16R-3 have?

The Komatsu PC16R-3 is equipped with a canopy for driver protection.

How much is a Komatsu PC16R-3 Mini excavator (2008u20132021) worth?

The residual value of the Komatsu PC16R-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
