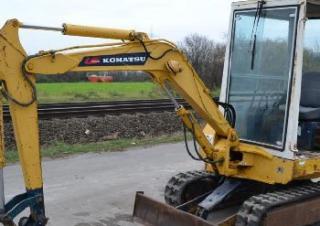

PC10-6 Komatsu excavator specs & dimensions (1989 - 1996)

Komatsu PC10-6 is a mini excavator manufactured from 1989 to 1996. It has a weight of 2.255 tons and a track width of 250 mm. The …

Komatsu PC10-6 is a mini excavator manufactured from 1989 to 1996. It has a weight of 2.255 tons and a track width of 250 mm. The transport dimensions are 4.4 meters in length, 1.4 meters in width, and 2.38 meters in height. The dredging depth is 2.31 meters, and the maximum horizontal reach is 4.235 meters. The bucket width is 0.28 meters with a capacity of 0.085 cubic meters. It is equipped with a rubber track.

Mini Excavators Komatsu PC10-6

Visit Komatsu live at

Technical specs - PC10-6 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.255 t
Transport length
4.4 m
Transport width
1.4 m
Transport height
2.38 m
Bucket capacity
0.085 m³
Bucket width
0.28 m
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.235 m
Dredging depth
2.31 m
Model series
PC
Engine manuf.
Komatsu
Engine type
3D75-2D
Engine power
14 kW
Displacement
0.994 l
Revolutions at max torque
2600 rpm
No. of cylinders
3
Cylinder bore x stroke
75x75 mm

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, tear-out force, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC10-6 FAQ

When was the Komatsu PC10-6 manufactured?

The Komatsu PC10-6 was manufactured from 1989 to 1996.

How much does the Komatsu PC10-6 weigh?

The Komatsu PC10-6 weighs 2.26 tons.

What are the transport dimensions of the Komatsu PC10-6 mini excavator?

The Komatsu PC10-6 has a transport length of 4.4 meters, a transport width of 1.4 meters, and a transport height of 2.38 meters.

What is the track width of the Komatsu PC10-6 mini excavator's undercarriage?

The Komatsu PC10-6 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Komatsu PC10-6 mini excavator?

The Komatsu PC10-6 mini excavator has a dredging depth of 2.31 meters and a maximum horizontal reach of 4.235 meters.

What are the bucket specifications of the Komatsu PC10-6 mini excavator?

The Komatsu PC10-6 mini excavator has a bucket capacity of 0.085 cubic meters and a bucket width of 0.28 meters.

What operator safety feature does the Komatsu PC10-6 have?

The Komatsu PC10-6 has a driver protection cabin.

How much is a Komatsu PC10-6 Mini excavator (1989u20131996) worth?

The residual value of the Komatsu PC10-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
