PC09-1 STD Komatsu excavator specs & dimensions (2002 - 2014)

Model rating
10,00 / 10

Komatsu PC09-1 STD is a mini excavator manufactured from 2002 to 2014, with a weight of 0.98 t. It features a track width of 180 m…

Komatsu PC09-1 STD is a mini excavator manufactured from 2002 to 2014, with a weight of 0.98 t. It features a track width of 180 mm, a transport length of 2.81 m, a transport width of 0.85 m, and a transport height of 1.405 m. The bucket width is 0.25 m, with a minimum bucket capacity of 0.03 m³. Special equipment includes a blade, rubber track, and track adjustment.

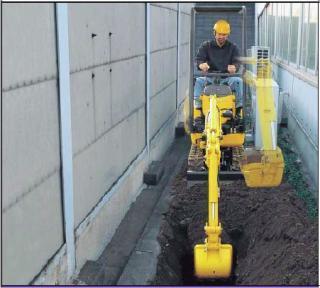

Mini Excavators Komatsu PC09-1 STD
Mini Excavators Komatsu PC09-1 STD
Mini Excavators Komatsu PC09-1 STD
Mini Excavators Komatsu PC09-1 STD
Mini Excavators Komatsu PC09-1 STD
Mini Excavators Komatsu PC09-1 STD

Visit Komatsu live at

Technical specs - PC09-1 STD Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.98 t
Transport length
2.81 m
Transport width
0.85 m
Transport height
1.405 m
Bucket capacity min.
0.03 m³
Bucket width
0.25 m
Track width
180 mm
Driver protection
O
Max. Reach horizontal
2.84 m
Dredging depth
1.46 m
Tear-out force
1.13 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
2D68E 3A
Engine power
6.8 kW
Displacement
0.522 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity, bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC09-1 STD FAQ

When was the Komatsu PC09-1 STD manufactured?

The Komatsu PC09-1 STD was manufactured from 2002 to 2014.

How much does the Komatsu PC09-1 STD weigh?

The Komatsu PC09-1 STD weighs 0.98 tons.

What are the transport dimensions of the Komatsu PC09-1 STD mini excavator?

The Komatsu PC09-1 STD has transport dimensions of 2.81 meters in length, 0.85 meters in width, and 1.41 meters in height.

What is the track width of the Komatsu PC09-1 STD mini excavator?

The Komatsu PC09-1 STD mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Komatsu PC09-1 STD mini excavator?

The Komatsu PC09-1 STD mini excavator has a dredging depth of 1.46 meters and a maximum horizontal reach of 2.84 meters.

What is the tear-out force of the Komatsu PC09-1 STD?

The Komatsu PC09-1 STD has a tear-out force of 1.13 kN.

What are the bucket specifications of the Komatsu PC09-1 STD mini excavator?

The Komatsu PC09-1 STD has a minimum bucket capacity of 0.03 cubic meters and a bucket width of 0.25 meters.

What operator safety and support features does the Komatsu PC09-1 STD have?

The Komatsu PC09-1 STD does not have driver protection features.

How much is a Komatsu PC09-1 STD Mini excavator (2002u20132014) worth?

The residual value of the Komatsu PC09-1 STD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
