PC09-1 Komatsu excavator specs & dimensions (2012 - 2026)

Komatsu PC09-1 is a mini excavator manufactured since 2012. It has a weight of 0.88 tons and a track width of 180 mm. The transpor…

Komatsu PC09-1 is a mini excavator manufactured since 2012. It has a weight of 0.88 tons and a track width of 180 mm. The transport dimensions are 2.81 meters in length, 0.85 meters in width, and 1.41 meters in height. The dredging depth is 1.47 meters, and the maximum horizontal reach is 2.75 meters. The bucket width is 0.35 meters, with a capacity ranging from 0.016 to 0.025 cubic meters. Special equipment includes a blade and rubber tracks.

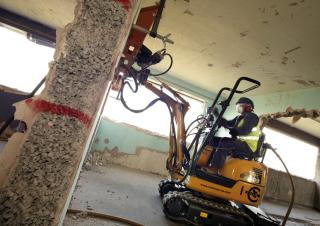

Mini Excavators Komatsu PC09-1
Mini Excavators Komatsu PC09-1
Mini Excavators Komatsu PC09-1
Mini Excavators Komatsu PC09-1
Mini Excavators Komatsu PC09-1
Mini Excavators Komatsu PC09-1

Visit Komatsu live at

Technical specs - PC09-1 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.88 t
Transport length
2.81 m
Transport width
0.85 m
Transport height
1.41 m
Bucket capacity min.
0.016 m³
Bucket capacity max.
0.025 m³
Bucket width
0.35 m
Track width
180 mm
Max. Reach horizontal
2.75 m
Dredging depth
1.47 m
Model series
PC
Engine manuf.
Komatsu
Engine type
2D68E 3A
Engine power
6.8 kW
Displacement
0.522 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity, standard tyres, driver protection, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC09-1 FAQ

When was the Komatsu PC09-1 manufactured?

The Komatsu PC09-1 was first produced in 2012.

How much does the Komatsu PC09-1 weigh?

The Komatsu PC09-1 weighs 0.88 tons.

What are the transport dimensions of the Komatsu PC09-1 mini excavator?

The Komatsu PC09-1 has a transport length of 2.81 meters, a transport width of 0.85 meters, and a transport height of 1.41 meters.

What is the track width of the Komatsu PC09-1 mini excavator?

The Komatsu PC09-1 mini excavator has a track width of 180 mm.

What is the excavation performance of the Komatsu PC09-1 mini excavator?

The Komatsu PC09-1 has a dredging depth of 1.47 meters and a maximum horizontal reach of 2.75 meters.

What are the bucket specifications of the Komatsu PC09-1 mini excavator?

The Komatsu PC09-1 mini excavator has a bucket width of 0.35 meters, with a maximum capacity of 0.03 cubic meters and a minimum capacity of 0.02 cubic meters.
