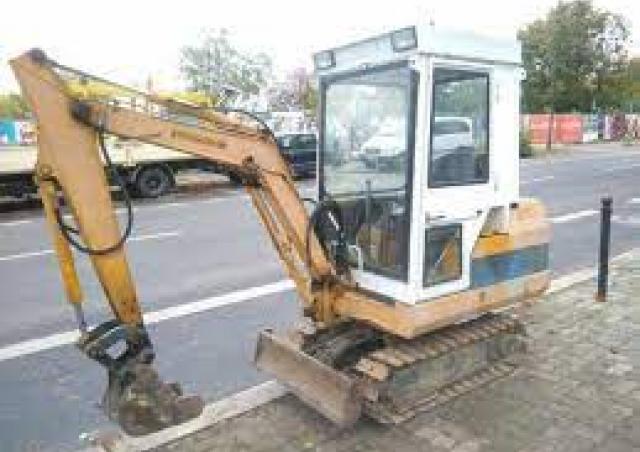

PC05-1 Komatsu excavator specs & dimensions (1984 - 1988)

Komatsu PC05-1 is a mini excavator manufactured from 1984 to 1988, with a weight of 1.11 tons. It features a track width of 230 mm…

Komatsu PC05-1 is a mini excavator manufactured from 1984 to 1988, with a weight of 1.11 tons. It features a track width of 230 mm, a transport length of 3.355 meters, a transport width of 1.03 meters, and a transport height of 1.935 meters. The machine has a tear-out force of 8.9 kN and a bucket capacity of 0.055 cubic meters. It is equipped with a rubber track.

Mini Excavators Komatsu PC05-1

Visit Komatsu live at

Technical specs - PC05-1 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.11 t
Transport length
3.355 m
Transport width
1.03 m
Transport height
1.935 m
Bucket capacity
0.055 m³
Track width
230 mm
Driver protection
KbR
Tear-out force
8.9 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
3D72-1A
Engine power
9 kW
Displacement
0.879 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC05-1 FAQ

When was the Komatsu PC05-1 manufactured?

The Komatsu PC05-1 was manufactured from 1984 to 1988.

How much does the Komatsu PC05-1 weigh?

The Komatsu PC05-1 weighs 1.11 tons.

What are the transport dimensions of the Komatsu PC05-1 mini excavator?

The Komatsu PC05-1 has a transport length of 3.36 meters, a transport width of 1.03 meters, and a transport height of 1.94 meters.

What is the track width of the Komatsu PC05-1 mini excavator's undercarriage?

The Komatsu PC05-1 mini excavator has a track width of 230 mm.

What is the tear-out force of the Komatsu PC05-1 mini excavator?

The Komatsu PC05-1 mini excavator has a tear-out force of 8.9 kN.

What is the bucket capacity of the Komatsu PC05-1 mini excavator?

The Komatsu PC05-1 mini excavator has a bucket capacity of 0.055 cubic meters.

What operator safety and support features does the Komatsu PC05-1 have?

The Komatsu PC05-1 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Komatsu PC05-1 Mini excavator (1984u20131988) worth?

The residual value of the Komatsu PC05-1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
