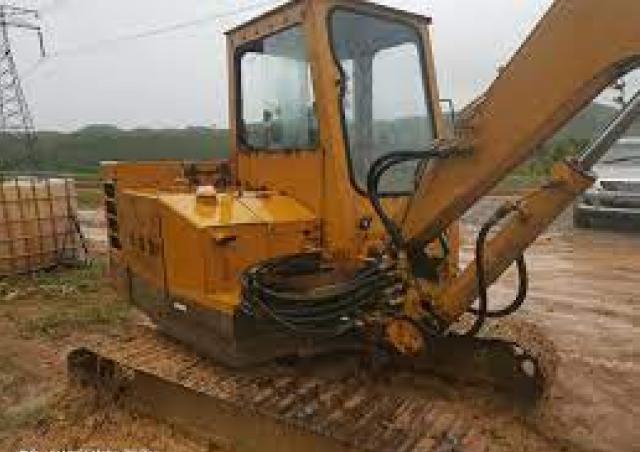

PC04 Komatsu excavator specs & dimensions (1977 - 1984)

Komatsu PC04 is a mini excavator manufactured from 1977 to 1984, with a weight of 4.2 tons. It features a track width of 600 mm, a…

Komatsu PC04 is a mini excavator manufactured from 1977 to 1984, with a weight of 4.2 tons. It features a track width of 600 mm, a transport length of 5.235 meters, a transport width of 1.75 meters, and a transport height of 2.36 meters. The machine has a dredging depth of 3.2 meters and a maximum horizontal reach of 4.765 meters. It is equipped with a bucket capacity of 0.21 cubic meters and includes special equipment such as a rubber track.

Mini Excavators Komatsu PC04

Visit Komatsu live at

Technical specs - PC04 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.2 t
Transport length
5.235 m
Transport width
1.75 m
Transport height
2.36 m
Bucket capacity
0.21 m³
Track width
600 mm
Driver protection
Kb
Max. Reach horizontal
4.765 m
Dredging depth
3.2 m
Model series
PC
Engine manuf.
Komatsu
Engine type
N/A
Engine power
30 HP
Revolutions at max torque
2500 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC04 FAQ

When was the Komatsu PC04 manufactured?

The Komatsu PC04 was manufactured from 1977 to 1984.

How much does the Komatsu PC04 weigh?

The Komatsu PC04 weighs 4.2 tons.

What are the transport dimensions of the Komatsu PC04 mini excavator?

The Komatsu PC04 has a transport length of 5.24 meters, a transport width of 1.75 meters, and a transport height of 2.36 meters.

What is the track width of the Komatsu PC04 mini excavator?

The Komatsu PC04 mini excavator has a track width of 600 mm.

What are the excavation performance specifications of the Komatsu PC04 mini excavator?

The Komatsu PC04 mini excavator has a dredging depth of 3.2 meters and a maximum horizontal reach of 4.765 meters.

What is the bucket capacity of the Komatsu PC04 mini excavator?

The bucket capacity of the Komatsu PC04 mini excavator is 0.21 cubic meters.

What operator safety features does the Komatsu PC04 have?

The Komatsu PC04 has a cabin for driver protection.

How much is a Komatsu PC04 Mini excavator (1977u20131984) worth?

The residual value of the Komatsu PC04 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
