PC02 Komatsu excavator specs & dimensions (1977 - 1984)

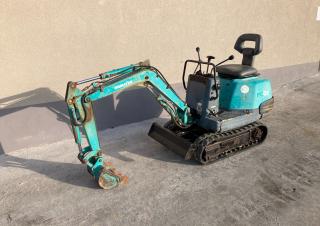

Komatsu PC02 is a mini excavator manufactured from 1977 to 1984. It has a weight of 2.55 tons and a track width of 300 mm. The tra…

Komatsu PC02 is a mini excavator manufactured from 1977 to 1984. It has a weight of 2.55 tons and a track width of 300 mm. The transport dimensions are 4.27 meters in length, 1.47 meters in width, and 2.285 meters in height. The dredging depth is 2.5 meters, and the maximum horizontal reach is 3.44 meters. The bucket capacity is 0.1 cubic meters, and it is equipped with a rubber track.

Mini Excavators Komatsu PC02

Visit Komatsu live at

Technical specs - PC02 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.55 t
Transport length
4.27 m
Transport width
1.47 m
Transport height
2.285 m
Bucket capacity
0.1 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
3.44 m
Dredging depth
2.5 m
Model series
PC
Engine manuf.
Komatsu
Engine type
N/A
Engine power
20 HP
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC02 FAQ

When was the Komatsu PC02 manufactured?

The Komatsu PC02 was manufactured from 1977 to 1984.

How much does the Komatsu PC02 weigh?

The Komatsu PC02 weighs 2.55 tons.

What are the transport dimensions of the Komatsu PC02 mini excavator?

The Komatsu PC02 has a transport length of 4.27 meters, a transport width of 1.47 meters, and a transport height of 2.29 meters.

What is the track width of the Komatsu PC02 mini excavator?

The Komatsu PC02 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Komatsu PC02 mini excavator?

The Komatsu PC02 mini excavator has a dredging depth of 2.5 meters and a maximum horizontal reach of 3.44 meters.

What is the bucket capacity of the Komatsu PC02 mini excavator?

The Komatsu PC02 mini excavator has a bucket capacity of 0.1 cubic meters.

What operator safety features does the Komatsu PC02 have?

The Komatsu PC02 has a cabin for driver protection.

How much is a Komatsu PC02 Mini excavator (1977u20131984) worth?

The residual value of the Komatsu PC02 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
