HD35N5 Kato excavator specs & dimensions (2023 - 2026)

Weight: 3.295t – Transport length: 4.78m – Transport width: 1.55m – Transport height: 2.45m – Bucket capacity: 0.11m³ – Bucket cap…

Weight: 3.295t – Transport length: 4.78m – Transport width: 1.55m – Transport height: 2.45m – Bucket capacity: 0.11m³ – Bucket capacity min.: 0.055m³

Check out detailed specifications, information and technical data for Kato HD35N5 excavator manufactured between 2023 - 2026. Get more in-depth insight with Kato HD35N5 digger specifications. See information, like: Weight: 3.295t – Transport length: 4.78m – Transport width: 1.55m – Transport height: 2.45m – Bucket capacity: 0.11m³ – Bucket capacity min.: 0.055m³ and more.

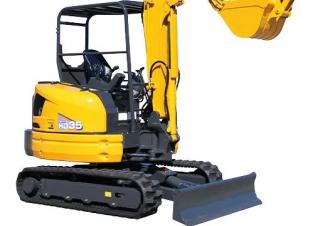

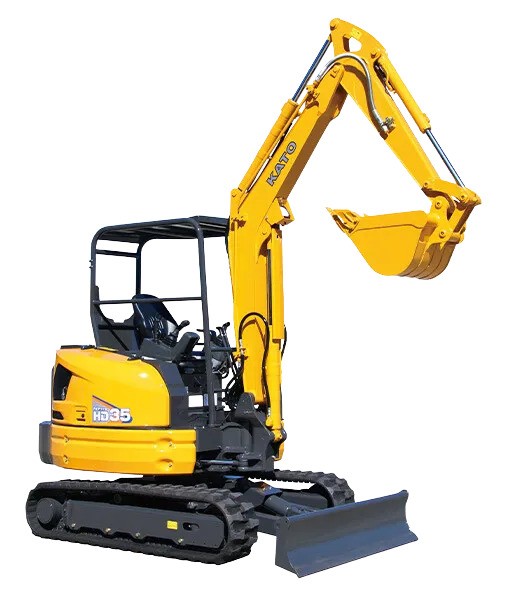

Mini Excavators Kato HD35N5

Technical specs - HD35N5 Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.295 t
Transport length
4.78 m
Transport width
1.55 m
Transport height
2.45 m
Bucket capacity
0.11 m³
Bucket capacity min.
0.055 m³
Bucket capacity max.
0.12 m³
Track width
305 mm
Max. Reach horizontal
5.32 m
Dredging depth
3.33 m
Model series
N
Engine manuf.
Yanmar
Engine type
3TNV88F
Engine power
17 kW
Revolutions at max torque
1320 rpm
Max. torque
83.9 Nm

More technical details, like: bucket width, standard tyres, driver protection, tear-out force, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD35N5 FAQ

When was the Kato HD35N5 manufactured?

The Kato HD35N5 was first produced in 2023.

How much does the Kato HD35N5 weigh?

The Kato HD35N5 weighs 3.3 tons.

What are the transport dimensions of the Kato HD35N5 mini excavator?

The Kato HD35N5 mini excavator has a transport length of 4.78 meters, a transport width of 1.55 meters, and a transport height of 2.45 meters.

What is the track width of the Kato HD35N5 mini excavator?

The Kato HD35N5 mini excavator has a track width of 305 mm.

What are the excavation performance specifications of the Kato HD35N5 mini excavator?

The Kato HD35N5 mini excavator has a dredging depth of 3.33 meters and a maximum horizontal reach of 5.32 meters.

What are the bucket capacity specifications of the Kato HD35N5 mini excavator?

The Kato HD35N5 mini excavator has a bucket capacity of 0.11 mu00b3, with a maximum capacity of 0.12 mu00b3 and a minimum capacity of 0.06 mu00b3.
