9VXB Kato excavator specs & dimensions (2019 - 2023)

Kato 9VXB is a Mini Excavator manufactured since 2019, with a weight of 0.93 tons. It features a track width of 178 mm, a transpor…

Kato 9VXB is a Mini Excavator manufactured since 2019, with a weight of 0.93 tons. It features a track width of 178 mm, a transport length of 2.47 meters, a transport width of 0.73 meters, and a transport height of 1.86 meters. The machine has a tear-out force of 10.5 kN, a dredging depth of 1.58 meters, and a maximum horizontal reach of 3.02 meters. The bucket width is 0.3 meters, and it comes equipped with a blade.

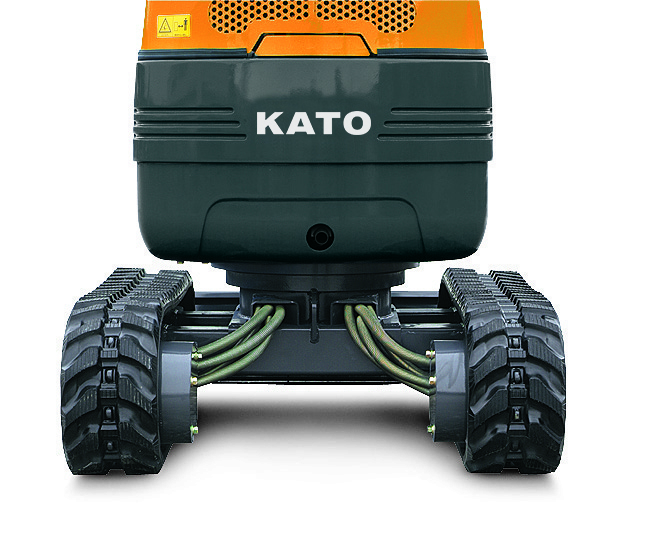

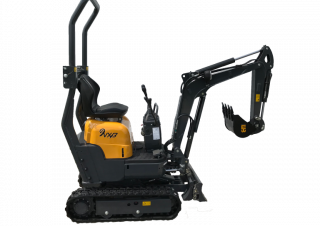

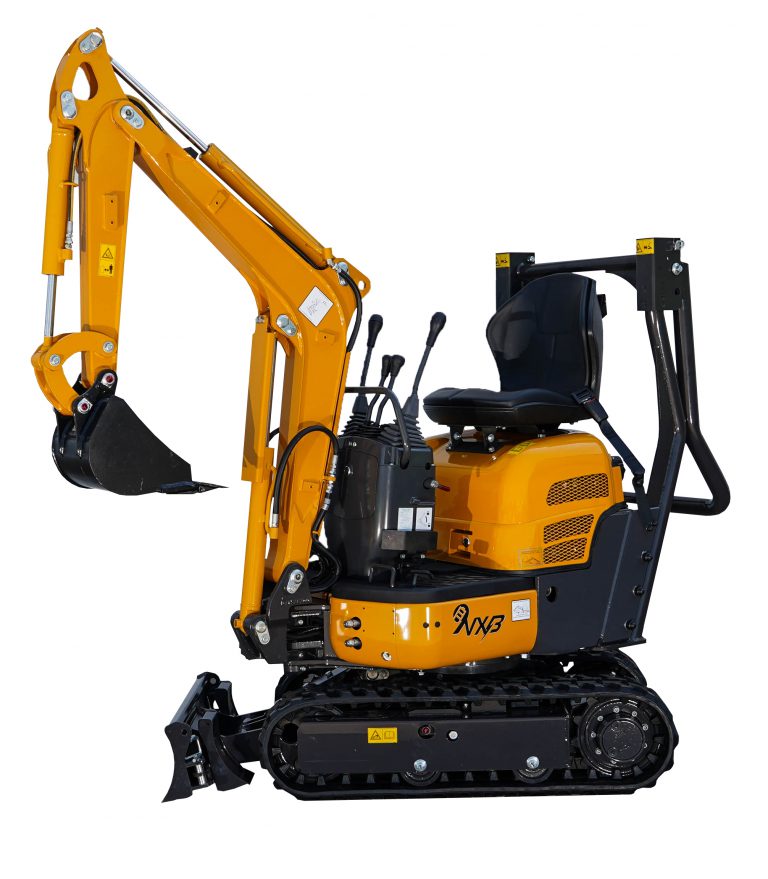

Mini Excavators Kato 9VXB
Mini Excavators Kato 9VXB
Mini Excavators Kato 9VXB
Mini Excavators Kato 9VXB
Mini Excavators Kato 9VXB
Mini Excavators Kato 9VXB
Mini Excavators Kato 9VXB
Mini Excavators Kato 9VXB

Technical specs - 9VXB Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.93 t
Transport length
2.47 m
Transport width
0.73 m
Transport height
1.86 m
Bucket width
0.3 m
Track width
178 mm
Driver protection
FD
Max. Reach horizontal
3.02 m
Dredging depth
1.58 m
Tear-out force
10.5 kN
Model series
VXB
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
48 kW
Max. torque
305/1500 Nm
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato 9VXB FAQ

When was the Kato 9VXB manufactured?

The Kato 9VXB was manufactured from 2019 to 2023.

How much does the Kato 9VXB mini excavator weigh?

The Kato 9VXB mini excavator weighs 0.93 tons.

What are the transport dimensions of the Kato 9VXB mini excavator?

The Kato 9VXB has a transport length of 2.47 meters, a transport width of 0.73 meters, and a transport height of 1.86 meters.

What is the track width of the Kato 9VXB mini excavator?

The Kato 9VXB mini excavator has a track width of 178 mm.

What are the excavation performance specifications of the Kato 9VXB mini excavator?

The Kato 9VXB mini excavator has a dredging depth of 1.58 meters and a maximum horizontal reach of 3.02 meters.

What is the tear-out force of the Kato 9VXB mini excavator?

The Kato 9VXB mini excavator has a tear-out force of 10.5 kN.

What is the bucket width of the Kato 9VXB mini excavator?

The Kato 9VXB mini excavator has a bucket width of 0.3 meters.

What operator safety and support features does the Kato 9VXB have?

The Kato 9VXB is equipped with a canopy for driver protection.
