9VX3 Kato excavator specs & dimensions (2019 - 2023)

Kato 9VX3 is a Mini Excavator manufactured since 2019, with a weight of 0.89 t. It features a track width of 180 mm, a transport l…

Kato 9VX3 is a Mini Excavator manufactured since 2019, with a weight of 0.89 t. It features a track width of 180 mm, a transport length of 2.7 m, a transport width of 0.72 m, and a transport height of 1.405 m. The machine has a tear-out force of 10.6 kN, a dredging depth of 1.57 m, and a maximum horizontal reach of 2.98 m. The bucket width is 0.37 m, with a maximum bucket capacity of 0.022 m³. It is equipped with a blade as special equipment.

Mini Excavators Kato 9VX3
Mini Excavators Kato 9VX3
Mini Excavators Kato 9VX3
Mini Excavators Kato 9VX3
Mini Excavators Kato 9VX3
Mini Excavators Kato 9VX3
Mini Excavators Kato 9VX3
Mini Excavators Kato 9VX3

Technical specs - 9VX3 Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.89 t
Transport length
2.7 m
Transport width
0.72 m
Transport height
1.405 m
Bucket capacity max.
0.022 m³
Bucket width
0.37 m

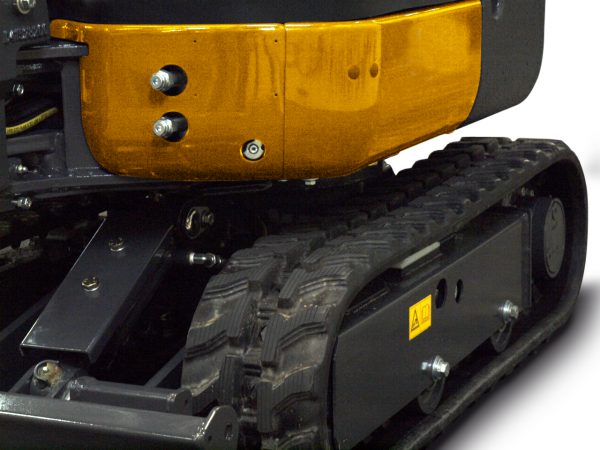

Track width
180 mm
Driver protection
FD
Max. Reach horizontal
2.98 m
Dredging depth
1.57 m
Tear-out force
10.6 kN
Model series
VX

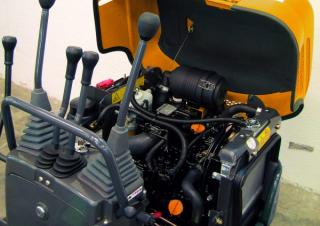

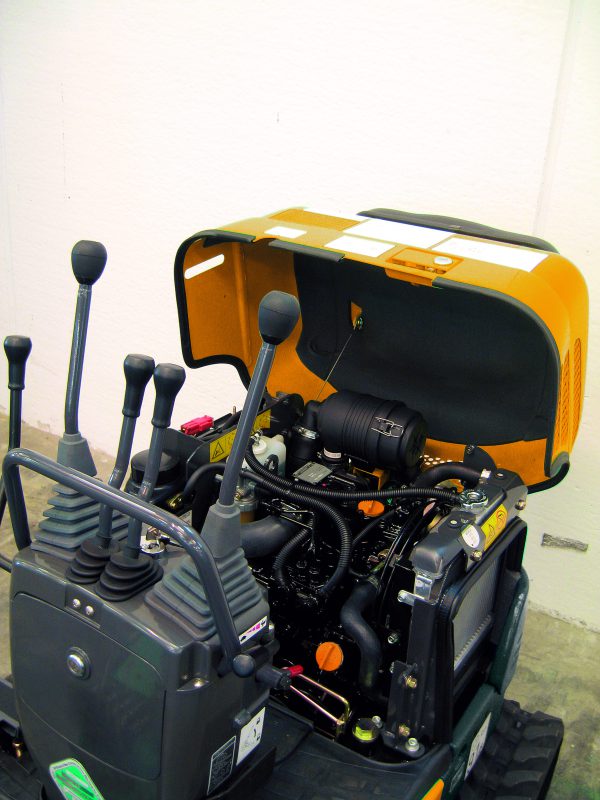

Engine manuf.
Yanmar
Engine type
2TNV70
Engine power
7.3 kW
Displacement
0.569 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity, bucket capacity min., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No

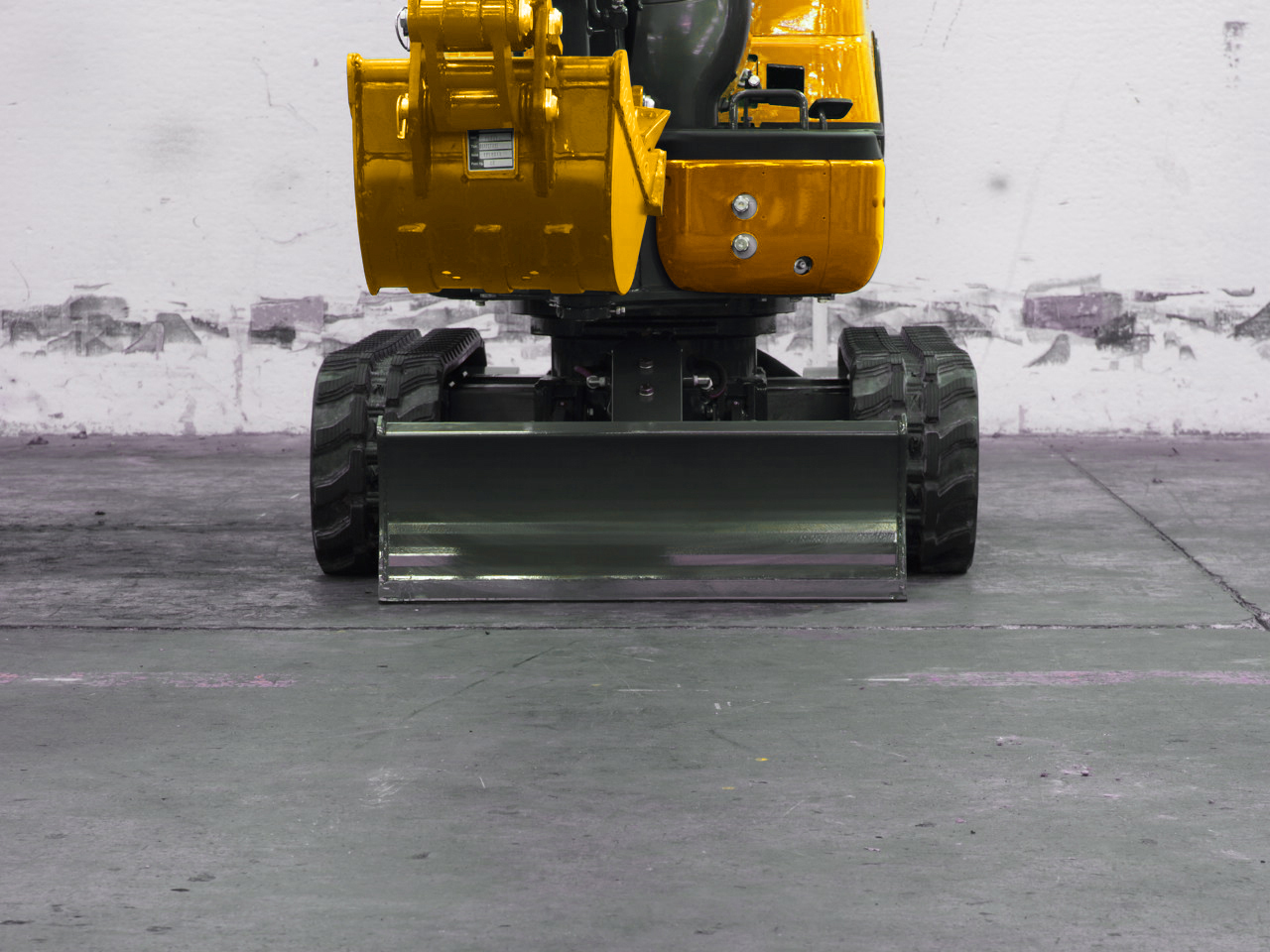

Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato 9VX3 FAQ

When was the Kato 9VX3 manufactured?

The Kato 9VX3 was manufactured from 2019 to 2023.

How much does the Kato 9VX3 mini excavator weigh?

The Kato 9VX3 mini excavator weighs 0.89 tons.

What are the transport dimensions of the Kato 9VX3 mini excavator?

The Kato 9VX3 mini excavator has a transport length of 2.7 meters, a transport width of 0.72 meters, and a transport height of 1.41 meters.

What is the track width of the Kato 9VX3 mini excavator's undercarriage?

The Kato 9VX3 mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Kato 9VX3 mini excavator?

The Kato 9VX3 mini excavator has a dredging depth of 1.57 meters and a maximum horizontal reach of 2.98 meters.

What is the tear-out force of the Kato 9VX3?

The Kato 9VX3 has a tear-out force of 10.6 kN.

What are the bucket specifications of the Kato 9VX3 mini excavator?

The Kato 9VX3 mini excavator has a maximum bucket capacity of 0.02 cubic meters and a bucket width of 0.37 meters.

What operator safety and support features does the Kato 9VX3 have?

The Kato 9VX3 is equipped with a canopy for driver protection.
