17VX-3 Electric Kato excavator specs & dimensions (2019 - 2023)

Kato 17VX-3 Electric is a mini excavator manufactured since 2019, with a weight of 1.62 t. It features a track width of 231 mm, a …

Kato 17VX-3 Electric is a mini excavator manufactured since 2019, with a weight of 1.62 t. It features a track width of 231 mm, a transport length of 3.38 m, a transport width of 1.01 m, and a transport height of 2.32 m. The machine has a tear-out force of 24.23 kN, a dredging depth of 2.13 m, and a maximum horizontal reach of 3.78 m. The bucket width is 0.46 m, and it comes equipped with a blade.

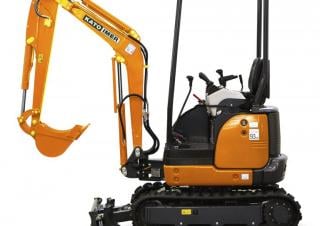

Mini Excavators Kato 17VX-3 Electric
Mini Excavators Kato 17VX-3 Electric
Mini Excavators Kato 17VX-3 Electric
Mini Excavators Kato 17VX-3 Electric
Mini Excavators Kato 17VX-3 Electric
Mini Excavators Kato 17VX-3 Electric

Technical specs - 17VX-3 Electric Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.62 t
Transport length
3.38 m
Transport width
1.01 m
Transport height
2.32 m
Bucket width
0.46 m
Track width
231 mm
Driver protection
FD
Max. Reach horizontal
3.78 m
Dredging depth
2.13 m
Tear-out force
24.23 kN
Model series
VX
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
48 kW
Max. torque
305/1500 Nm
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato 17VX-3 Electric FAQ

When was the Kato 17VX-3 Electric manufactured?

The Kato 17VX-3 Electric was manufactured from 2019 to 2023.

How much does the Kato 17VX-3 Electric weigh?

The Kato 17VX-3 Electric weighs 1.62 tons.

What are the transport dimensions of the Kato 17VX-3 Electric mini excavator?

The Kato 17VX-3 Electric has a transport length of 3.38 meters, a transport width of 1.01 meters, and a transport height of 2.32 meters.

What is the track width of the Kato 17VX-3 Electric mini excavator?

The Kato 17VX-3 Electric mini excavator has a track width of 231 mm.

What are the excavation performance specifications of the Kato 17VX-3 Electric mini excavator?

The Kato 17VX-3 Electric mini excavator has a dredging depth of 2.13 meters and a maximum horizontal reach of 3.78 meters.

What is the tear-out force of the Kato 17VX-3 Electric mini excavator?

The Kato 17VX-3 Electric mini excavator has a tear-out force of 24.23 kN.

What is the bucket width of the Kato 17VX-3 Electric mini excavator?

The bucket width of the Kato 17VX-3 Electric mini excavator is 0.46 meters.

What operator safety and support features does the Kato 17VX-3 Electric have?

The Kato 17VX-3 Electric provides driver protection with a canopy.
