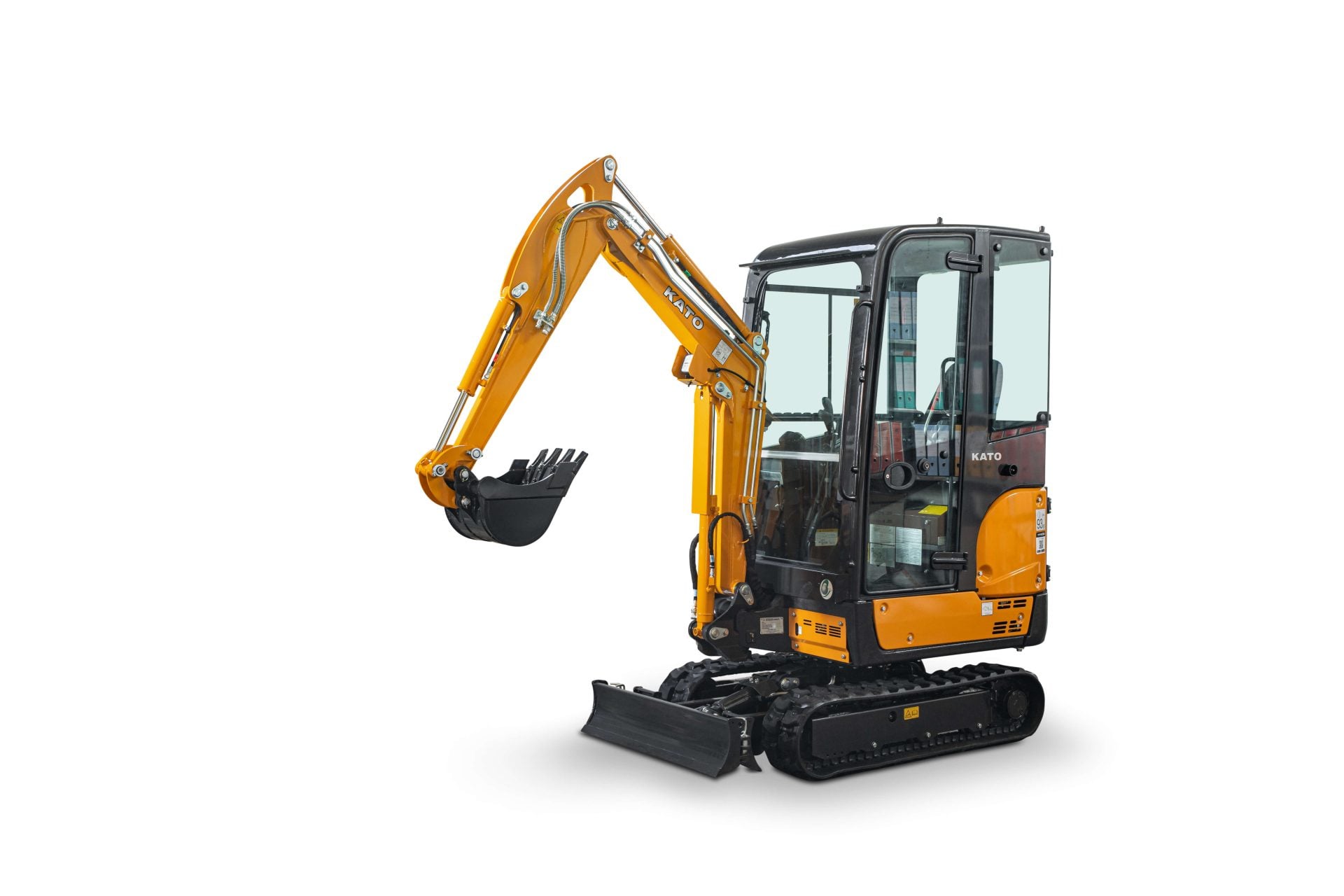

HD20N5 Kato Imer excavator specs & dimensions (2026 - 2026)

Weight: 2.045t – Transport length: 3.58m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Bucket widt…

Weight: 2.045t – Transport length: 3.58m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Bucket width: 0.4m

Check out detailed specifications, information and technical data for Kato Imer HD20N5 excavator manufactured between 2026 - 2026. Get more in-depth insight with Kato Imer HD20N5 digger specifications. See information, like: Weight: 2.045t – Transport length: 3.58m – Transport width: 0.99m – Transport height: 2.4m – Bucket capacity: 0.04m³ – Bucket width: 0.4m and more.

Mini Excavators Kato Imer HD20N5

Technical specs - HD20N5 Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.045 t
Transport length
3.58 m
Transport width
0.99 m
Transport height
2.4 m
Bucket capacity
0.04 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.97 m
Dredging depth
2.44 m
Tear-out force
16.4 kN
Model series
V
Engine manuf.
Yanmar
Engine type
3TNV74
Engine power
10.5 kW
Displacement
0.993 l
No. of cylinders
3
Cylinder bore x stroke
74x77 mm
Emission level
Tier 4

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
