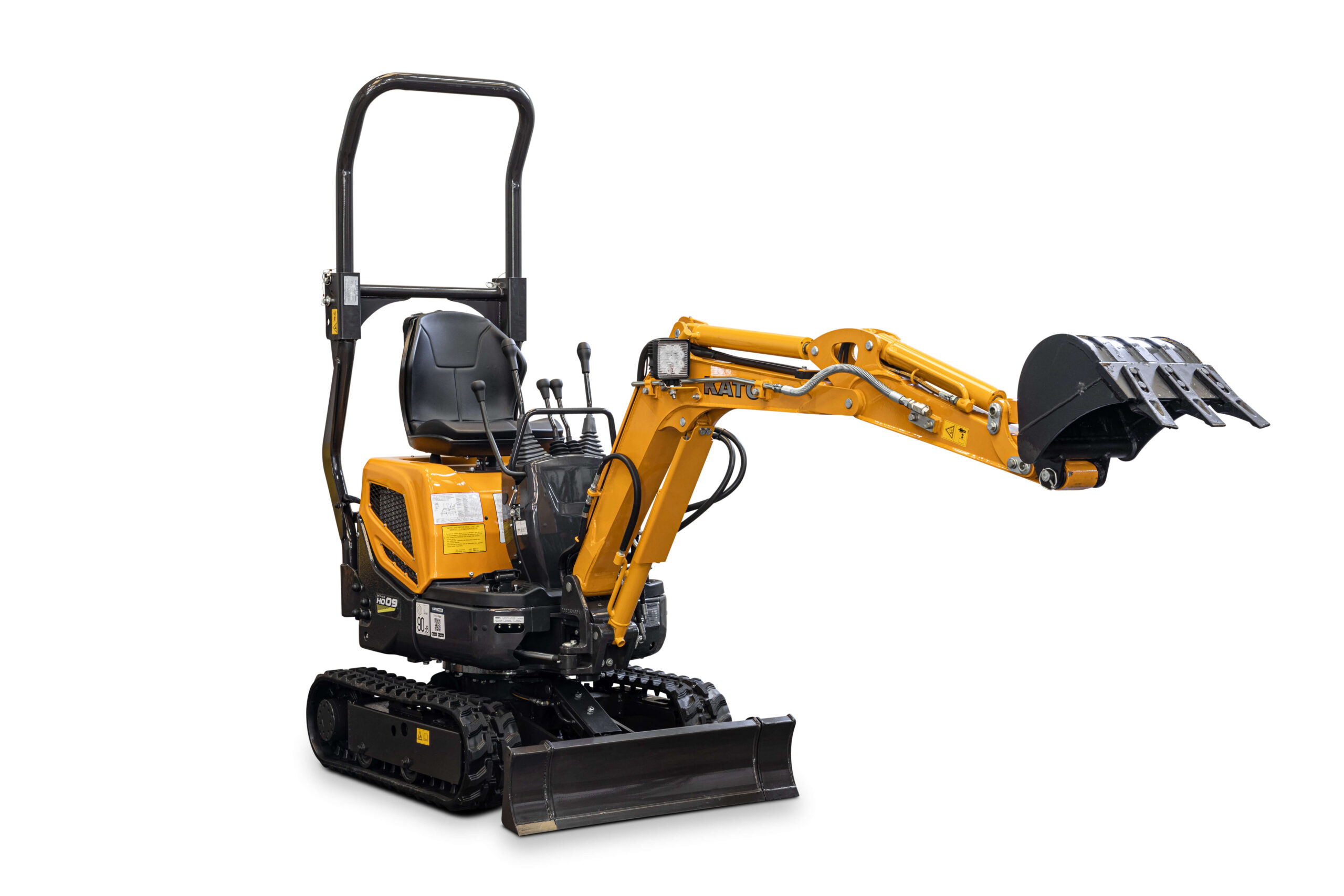

HD09V5 Kato Imer excavator specs & dimensions (2026 - 2026)

Weight: 1.059t – Transport length: 2.78m – Transport width: 0.765m – Transport height: 2.33m – Bucket capacity: 0.022m³ – Bucket w…

Weight: 1.059t – Transport length: 2.78m – Transport width: 0.765m – Transport height: 2.33m – Bucket capacity: 0.022m³ – Bucket width: 0.35m

Check out detailed specifications, information and technical data for Kato Imer HD09V5 excavator manufactured between 2026 - 2026. Get more in-depth insight with Kato Imer HD09V5 digger specifications. See information, like: Weight: 1.059t – Transport length: 2.78m – Transport width: 0.765m – Transport height: 2.33m – Bucket capacity: 0.022m³ – Bucket width: 0.35m and more.

Technical specs - HD09V5 Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.059 t
Transport length
2.78 m
Transport width
0.765 m
Transport height
2.33 m
Bucket capacity
0.022 m³
Bucket width
0.35 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
2.98 m
Dredging depth
1.57 m
Tear-out force
10.4 kN
Model series
V
Engine manuf.
Kubota
Engine type
D722-E4B
Engine power
7.4 kW
Displacement
0.719 l
No. of cylinders
3
Cylinder bore x stroke
67x68 mm
Emission level
Tier 4

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
