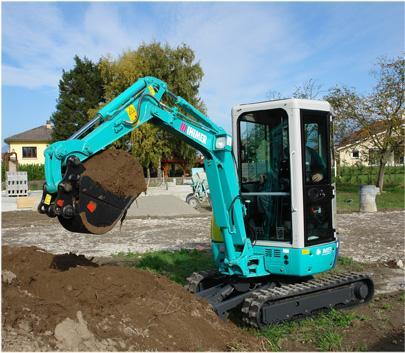

20 VX Kato Imer excavator specs & dimensions (2008 - 2020)

Kato Imer 20 VX is a mini excavator manufactured from 2008 to 2020, with a weight of 2.11 tons. It has a transport length of 4 met…

Kato Imer 20 VX is a mini excavator manufactured from 2008 to 2020, with a weight of 2.11 tons. It has a transport length of 4 meters, a transport width of 2.42 meters, and a transport height of 1.5 meters. The excavator is equipped with a blade.

Mini Excavators Kato Imer 20 VX

Technical specs - 20 VX Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.11 t
Transport length
4 m
Transport width
2.42 m
Transport height
1.5 m
Driver protection
Kb
Max. Reach horizontal
3.67 m
Dredging depth
2.25 m
Model series
VX
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13 kW
Displacement
1.115 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Kato Imer 20 VX FAQ

When was the Kato Imer 20 VX manufactured?

The Kato Imer 20 VX was manufactured from 2008 to 2020.

How much does the Kato Imer 20 VX weigh?

The Kato Imer 20 VX weighs 2.11 tons.

What are the transport dimensions of the Kato Imer 20 VX mini excavator?

The Kato Imer 20 VX has transport dimensions of 4 meters in length, 2.42 meters in width, and 1.5 meters in height.

What are the excavation specifications of the Kato Imer 20 VX?

The Kato Imer 20 VX has a dredging depth of 2.25 meters and a maximum horizontal reach of 3.67 meters.

What driver protection features does the Kato Imer 20 VX have?

The Kato Imer 20 VX has a cabin for driver protection.

How much is a Kato Imer 20 VX Mini excavator (2008u20132020) worth?

The residual value of the Kato Imer 20 VX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
