14 NXT Kato Imer excavator specs & dimensions (2008 - 2020)

Model rating: 7,00 / 10

Kato Imer 14 NXT is a mini excavator manufactured from 2008 to 2020, with a weight of 1.59 tons. It has a transport length of 3.35…

Kato Imer 14 NXT is a mini excavator manufactured from 2008 to 2020, with a weight of 1.59 tons. It has a transport length of 3.35 meters, a transport width of 2.35 meters, and a transport height of 0.98 meters. The excavator is equipped with a blade.

14 NXT

Years of manufacture: 2008—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 14 NXT Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.59 t

Transport length: 3.35 m

Transport width: 2.35 m

Transport height: 0.98 m

Driver protection: Kb

Max. Reach horizontal: 3.25 m

Dredging depth: 2.01 m

Model series: NXT

Engine manuf.: Yanmar

Engine type: 3TNE68

Engine power: 10 kW

Revolutions at max torque: 2300 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, tear-out force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

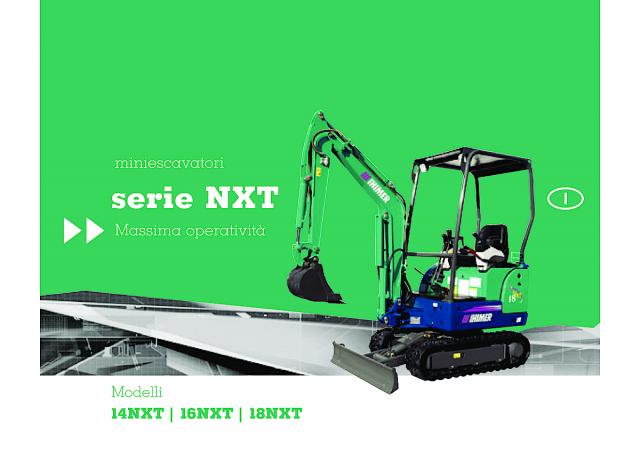

14 NXT Kato Imer Specification for Europe (IT)

Kato Imer 14 NXT FAQ

When was the Kato Imer 14 NXT manufactured?

The Kato Imer 14 NXT was manufactured from 2008 to 2020.

How much does the Kato Imer 14 NXT weigh?

The Kato Imer 14 NXT weighs 1.59 tons.

What are the transport dimensions of the Kato Imer 14 NXT mini excavator?

The Kato Imer 14 NXT has a transport length of 3.35 meters, a transport width of 2.35 meters, and a transport height of 0.98 meters.

What are the excavation performance specifications of the Kato Imer 14 NXT mini excavator?

The Kato Imer 14 NXT has a dredging depth of 2.01 meters and a maximum horizontal reach of 3.25 meters.

What operator safety and support features does the Kato Imer 14 NXT have?

The Kato Imer 14 NXT has a cabin for driver protection.
