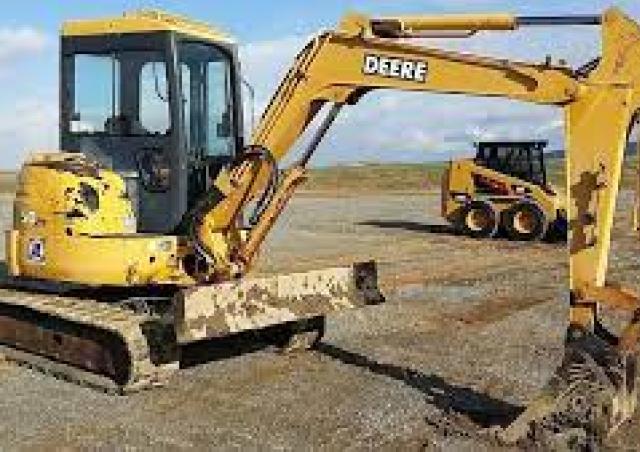

50ZTS John Deere Construction excavator specs & dimensions (2001 - 2021)

John Deere Construction 50ZTS is a mini excavator manufactured from 2001 to 2021, with a weight of 4.79 tons. It features a track …

John Deere Construction 50ZTS is a mini excavator manufactured from 2001 to 2021, with a weight of 4.79 tons. It features a track width of 305 mm, a transport length of 5.32 meters, a transport width of 2 meters, and a transport height of 3.5 meters. The maximum horizontal reach is 3.6 meters, and it is equipped with a blade.

Mini Excavators John Deere Construction 50ZTS

Technical specs - 50ZTS John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.79 t
Transport length
5.32 m
Transport width
2 m
Transport height
3.5 m
Track width
305 mm
Max. Reach horizontal
3.6 m
Model series
ZTS
Engine manuf.
Isuzu
Engine type
4LE1
Engine power
27.9 kW
Displacement
2.18 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dredging depth, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dredging depth, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 50ZTS FAQ

When was the John Deere Construction 50ZTS manufactured?

The John Deere Construction 50ZTS was manufactured from 2001 to 2021.

How much does the John Deere Construction 50ZTS mini excavator weigh?

The John Deere Construction 50ZTS mini excavator weighs 4.79 tons.

What are the transport dimensions of the John Deere Construction 50ZTS mini excavator?

The John Deere Construction 50ZTS has a transport length of 5.32 meters, a transport width of 2 meters, and a transport height of 3.5 meters.

What is the track width of the John Deere Construction 50ZTS mini excavator?

The John Deere Construction 50ZTS mini excavator has a track width of 305 mm.

What is the maximum horizontal reach of the John Deere Construction 50ZTS mini excavator?

The John Deere Construction 50ZTS mini excavator has a maximum horizontal reach of 3.6 meters.
