30G John Deere Construction excavator specs & dimensions (2017 - 2026)

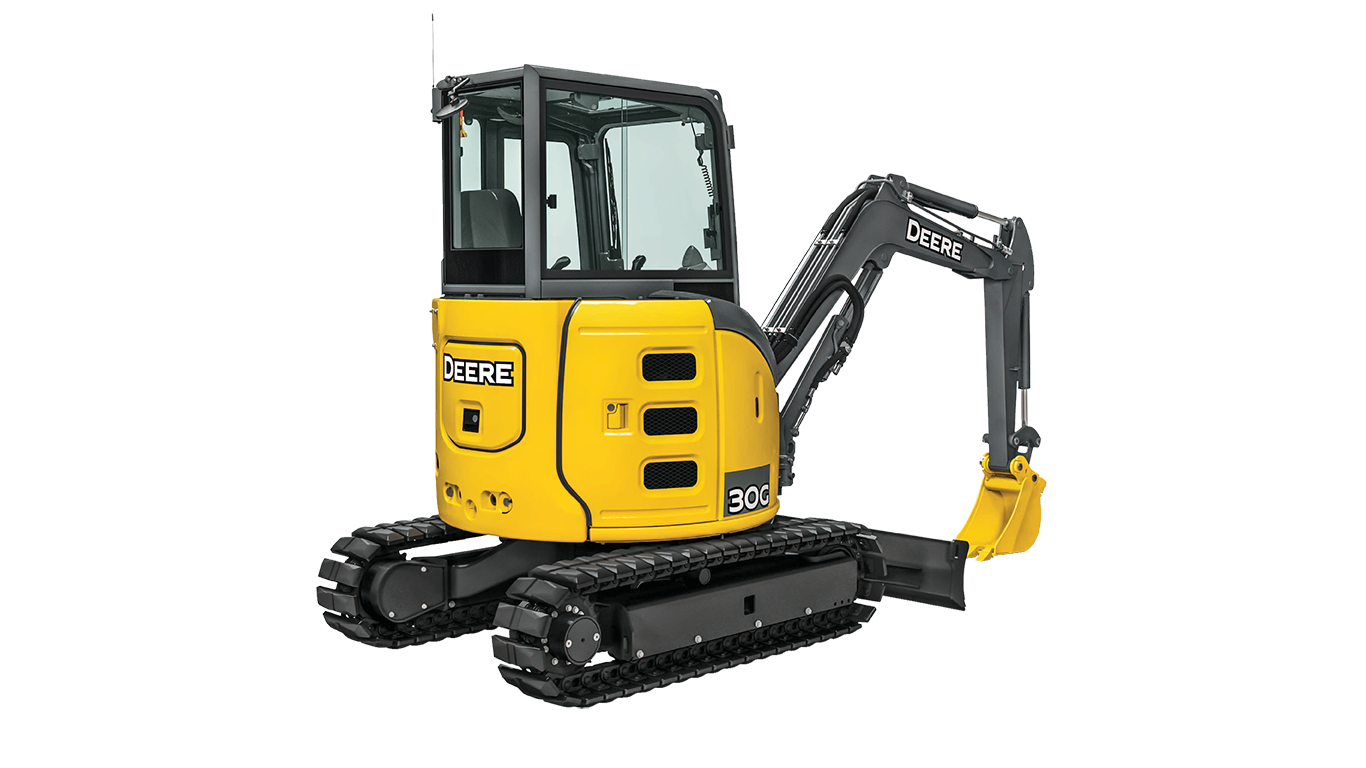

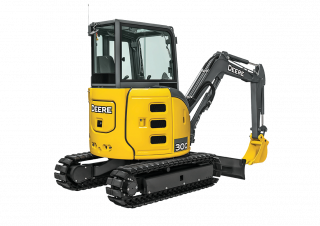

John Deere Construction 30G is a mini excavator manufactured since 2017, with a weight of 3.28 tons. It features a track width of …

John Deere Construction 30G is a mini excavator manufactured since 2017, with a weight of 3.28 tons. It features a track width of 300 mm, a transport length of 4.45 meters, a transport width of 1.55 meters, and a transport height of 2.48 meters. The dredging depth is 2.79 meters, and the maximum horizontal reach is 4.89 meters.

Mini Excavators John Deere Construction 30G

Technical specs - 30G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.28 t
Transport length
4.45 m
Transport width
1.55 m
Transport height
2.48 m
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.89 m
Dredging depth
2.79 m
Model series
G
Engine manuf.
Yanmar
Engine type
3TNV88F-EPHB
Engine power
17.4 kW
Displacement
1.642 l
Revolutions at max torque
2400 rpm
No. of cylinders
3
Emission level
Tier 4f/EU IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 30G FAQ

When was the John Deere Construction 30G manufactured?

The John Deere Construction 30G was first produced in 2017.

How much does the John Deere Construction 30G weigh?

The John Deere Construction 30G weighs 3.28 tons.

What are the transport dimensions of the John Deere Construction 30G mini excavator?

The John Deere Construction 30G has a transport length of 4.45 meters, a transport width of 1.55 meters, and a transport height of 2.48 meters.

What is the track width of the John Deere Construction 30G mini excavator?

The John Deere Construction 30G mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the John Deere Construction 30G mini excavator?

The John Deere Construction 30G mini excavator has a dredging depth of 2.79 meters and a maximum horizontal reach of 4.89 meters.

What operator safety and support features does the John Deere Construction 30G have?

The John Deere Construction 30G is equipped with a canopy for driver protection.
