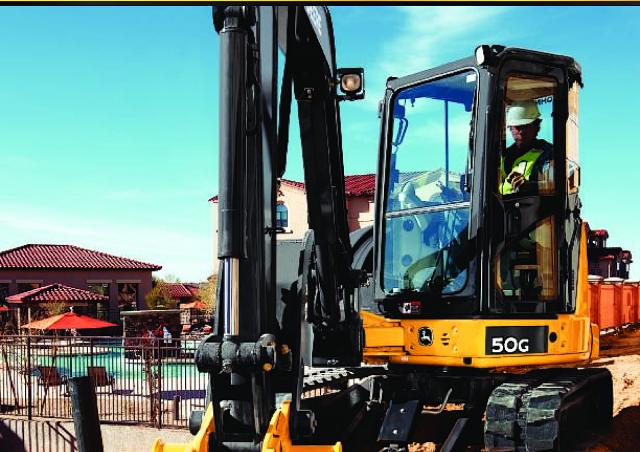

50G John Deere Construction excavator specs & dimensions (2013 - 2021)

John Deere Construction 50G is a mini excavator manufactured from 2013 to 2021. It has a weight of 4.79 tons and a track width of …

John Deere Construction 50G is a mini excavator manufactured from 2013 to 2021. It has a weight of 4.79 tons and a track width of 400 mm. The transport dimensions are 5.47 meters in length, 2 meters in width, and 2.53 meters in height. The dredging depth is 3.83 meters, and the maximum horizontal reach is 3.53 meters. This model includes special equipment such as a blade.

Mini Excavators John Deere Construction 50G

Technical specs - 50G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.79 t
Transport length
5.47 m
Transport width
2 m
Transport height
2.53 m
Track width
400 mm
Max. Reach horizontal
3.53 m
Dredging depth
3.83 m
Model series
G
Engine manuf.
Yanmar
Engine type
4TN88C
Engine power
27 kW
Displacement
2.19 l
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 50G FAQ

When was the John Deere Construction 50G manufactured?

The John Deere Construction 50G was manufactured from 2013 to 2021.

How much does the John Deere Construction 50G weigh?

The John Deere Construction 50G weighs 4.79 tons.

What are the transport dimensions of the John Deere Construction 50G mini excavator?

The John Deere Construction 50G has a transport length of 5.47 meters, a transport width of 2 meters, and a transport height of 2.53 meters.

What is the track width of the John Deere Construction 50G mini excavator?

The John Deere Construction 50G mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the John Deere Construction 50G mini excavator?

The John Deere Construction 50G mini excavator has a dredging depth of 3.83 meters and a maximum horizontal reach of 3.53 meters.
