30 John Deere Construction excavator specs & dimensions (1986 - 2021)

John Deere Construction 30 is a mini excavator manufactured from 1986 to 2021. It has a weight of 3 tons and a track width of 320 …

John Deere Construction 30 is a mini excavator manufactured from 1986 to 2021. It has a weight of 3 tons and a track width of 320 mm. The transport dimensions are 4.65 meters in length, 1.52 meters in width, and 1.52 meters in height. The dredging depth is 2.85 meters, and the maximum horizontal reach is 2.85 meters. It is equipped with a blade.

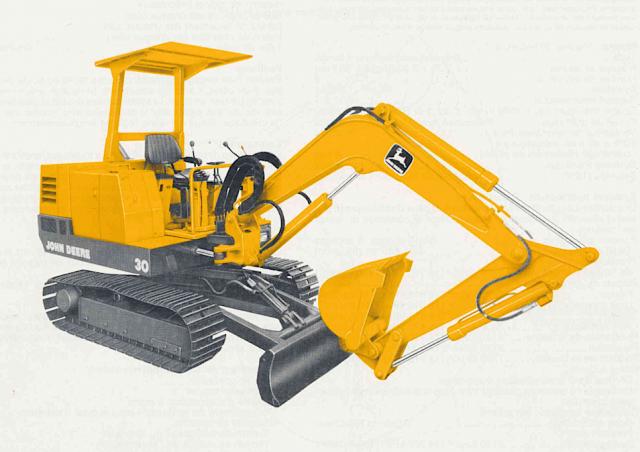

Mini Excavators John Deere Construction 30

Technical specs - 30 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3 t
Transport length
4.65 m
Transport width
1.52 m
Transport height
1.52 m
Track width
320 mm
Max. Reach horizontal
2.85 m
Dredging depth
2.85 m
Engine manuf.
N/A
Engine type
N/A
Engine power
18 kW
Displacement
1.3 l
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 30 FAQ

When was the John Deere Construction 30 manufactured?

The John Deere Construction 30 was manufactured from 1986 to 2021.

How much does the John Deere Construction 30 mini excavator weigh?

The John Deere Construction 30 mini excavator weighs 3 tons.

What are the transport dimensions of the John Deere Construction 30 mini excavator?

The John Deere Construction 30 mini excavator has a transport length of 4.65 meters, a transport width of 1.52 meters, and a transport height of 1.52 meters.

What is the track width of the John Deere Construction 30 mini excavator?

The John Deere Construction 30 mini excavator has a track width of 320 mm.

What are the excavation performance specifications of the John Deere Construction 30 mini excavator?

The John Deere Construction 30 mini excavator has a dredging depth of 2.85 meters and a maximum horizontal reach of 2.85 meters.

How much is a John Deere Construction 30 Mini excavator (1986u20132021) worth?

The residual value of the John Deere Construction 30 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

John Deere Construction 30 overview

Hydraulics

Two gas cylinders hold the large hood opel for easy access to important engine service points. Plenty of foot space, plenty of elbow room and controls that can be easily executed without banging the operator are just three of the many advantages of this well-designed command post. Air cleaners, coolant temperature, engine oil pressure and alternator are electronically monitored. Warnings are visible and audible.

Dimensions and weight

3050
Operating weight with cab6610 lb. (3000 kg)9600 lb. (4355 kg)
Horsepower24 (18 kW)39 (29 kW)
Maximum digging depth9 ft. 4 in. (2.85 m)12 ft. 2 in. (3.7 m)
30503050
A. Overall width canopy w/cab"5 ft. 0 in. (1.52 m)6 ft. 0 in. (1.84 m)D. Height Canopy7 ft. 10 in.8 ft. 2 in.
(2.40 m)(2.49 m)
Cab opt."5 ft. 1 in. (1.53 m)6 ft. 1 in. (1.85 m)Cab (Std. on 70)"7 ft. 10 in. (2.39 m)8 ft. 1 in. (2.46 m)
B. Track width (Std. track shoes)5 ft. O in. (1.52 m)6 ft. O in. (1.82 m)E. Length15 ft. 3 in. (4.65 m)17 ft. 10 in. (5.43 m)
C. Ground clearance11.8 in.13 in. (330 mm)F. Track length6 ft. 4 in.7 ft. 10 in.
(300 mm)(1.94 m)(2.38 m)
G. Swing clearance4 ft. 7 in. (1.4 m)5 ft. 3 in. (1.6 m)
MODEL30503050
ENGINEHYDRAULICS
Type3 cylinder diesel"4 cylinder turbo- charged dieselPumps/type3-section gear constant flow3-section gear constant flow
Horsepower,24 SAE net (18 kW),39 SAE net (29 kW),System pressure,"2,130 psi (14 700 kPa)2,420 psi (16 690 kPa)"
Displacement83 cu. in. (1.362 L)100 cu. in. (1.643 L)UNDERCARRIAGE
BUCKET (standard)Track shoe width (Standard)13 in. (320 mm)15 in. (380 mm)
Capacity1/10 cu. yd. (0.08 m3)1/6 cu. yd. (0.12 m3)Ground pressure w/cab4.05 psi (27.92 kPa)4.01 psi (27.65 kPa)
Width (w/side cutters)18 in. (450 mm)22 in. (550 mm)Swing speed10 rpm10.7 rpm
PERFORMANCETravel speed max."1.24 mph (2 km/h)2.24 mph (3.6 km/h)
Digging depth (Maximum)9 ft. 4 in. (2.85 m)12 ft. 2 in. (3.7 m)OPERATING WEIGHT
Reach at ground level (Maximum)14 ft. 11 in. (4.54 m)18 ft. 3 in. (5.56 m)Canopy6300 lb. (2860 kg)9270 lb. (4505 kg)
Digging force bucket"4520 lb. (20 kN)6945 lb. (31 kN)Cab6610 lb.9600 lb. (4355 kg)
(Standard on 70)(3000 kg)

Other features

The 30,the50:Easy to operate, easy to maintain At first glance it is obvious that operators have received cornfort and comfort in the design of the 30 and 50 Excavators top priority.The operator's station for both Mach-ins is isolated grinded to reduce noise and vibration lt is surprisingly spacious control levers are nailed into Cornpact consoles on the outside so there will be a lot of leg/knee space This also rips down the floor plane, uncluttered It gives plenty of foot roors Easy to keep clean The optional cab features a large, tinted, curved windshield for unobstructed visibility To improve ventilation, the overhead window slides down, opens the right side window, keeps door latches open position and the window rolls down A canopy fan which appears open The Foarn Cushioned Vinyl Seat rs fully adjustable Control console has an all-encompassing front end next to the dozer blade control system, ignition mudstick tiller & earphone test unit (see below)
