27ZTS John Deere Construction excavator specs & dimensions (2001 - 2021)

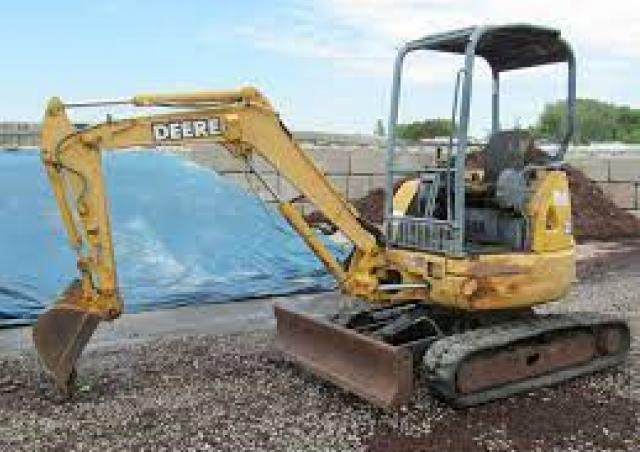

John Deere Construction 27ZTS is a mini excavator manufactured from 2001 to 2021, with a weight of 2.88 tons. It has a transport l…

John Deere Construction 27ZTS is a mini excavator manufactured from 2001 to 2021, with a weight of 2.88 tons. It has a transport length of 4.26 meters, a transport width of 1.55 meters, and a transport height of 3 meters. The maximum horizontal reach is 2.65 meters, and it is equipped with a blade.

Mini Excavators John Deere Construction 27ZTS

Technical specs - 27ZTS John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.88 t
Transport length
4.26 m
Transport width
1.55 m
Transport height
3 m
Max. Reach horizontal
2.65 m
Model series
ZTS
Engine manuf.
Isuzu
Engine type
3LD1
Engine power
16.2 kW
Displacement
1.5 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, driver protection, dredging depth, tear-out force, dimension lxwxh, revolutions at max torque, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, driver protection, dredging depth, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 27ZTS FAQ

When was the John Deere Construction 27ZTS manufactured?

The John Deere Construction 27ZTS was manufactured from 2001 to 2021.

How much does the John Deere Construction 27ZTS weigh?

The John Deere Construction 27ZTS weighs 2.88 tons.

What are the transport dimensions of the John Deere Construction 27ZTS mini excavator?

The John Deere Construction 27ZTS has a transport length of 4.26 meters, a transport width of 1.55 meters, and a transport height of 3 meters.

What is the maximum horizontal reach of the John Deere Construction 27ZTS mini excavator?

The John Deere Construction 27ZTS mini excavator has a maximum horizontal reach of 2.65 meters.

How much is a John Deere Construction 27ZTS Mini excavator (2001u20132021) worth?

The residual value of the John Deere Construction 27ZTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your John Deere Construction 27ZTS from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we watch data since 40 years and based on this data, we can support buyers with pricing lists of used mini excavators, such as John Deere Construction 27ZTS.

Check what new and used models of mini excavators you can get in each price range:

Data provided by Lectura logo

Compare John Deere Construction 27ZTS with similar Mini Excavators

John Deere Construction 27ZTS

John Deere Construction 27ZTS

Weight:
2.88 t
Transport length:
4.26 m
Transport width:
1.55 m
Transport height:
3 m
Kato 25V4-F

Kato 25V4-F

Weight:
2.5 t
Transport length:
4 m
Transport width:
1.55 m
Transport height:
2.46 m
PowerPlus PP35E-IX

PowerPlus PP35E-IX

Weight:
3.08 t
Transport length:
4.51 m
Transport width:
1.45 m
Transport height:
2.4 m
Thomas T-15S

Thomas T-15S

Weight:
3.3 t
Transport length:
3.8 m
Transport width:
1 m
Transport height:
2.1 m
