25 John Deere Construction excavator specs & dimensions (1989 - 2021)

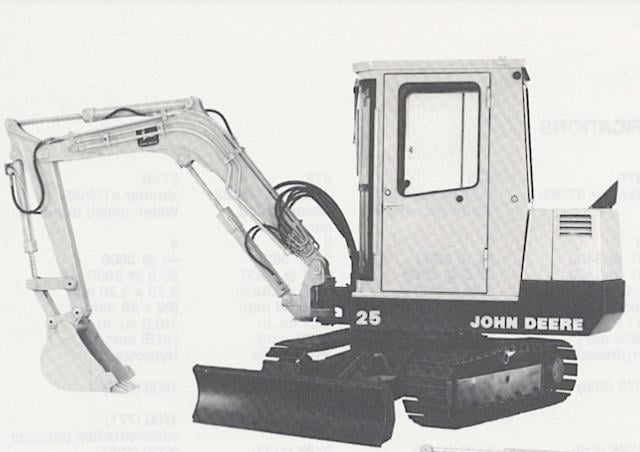

John Deere Construction 25 is a mini excavator manufactured from 1989 to 2021. It has a weight of 2.9 tons and a track width of 32…

John Deere Construction 25 is a mini excavator manufactured from 1989 to 2021. It has a weight of 2.9 tons and a track width of 320 mm. The transport dimensions are 4.69 meters in length, 1.45 meters in width, and 2.38 meters in height. The dredging depth is 2.85 meters, with a maximum horizontal reach of 2.65 meters. The bucket capacity is 0.8 cubic meters, and it comes equipped with a blade.

Mini Excavators John Deere Construction 25

Technical specs - 25 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.9 t
Transport length
4.69 m
Transport width
1.45 m
Transport height
2.38 m
Bucket capacity
0.8 m³
Track width
320 mm
Max. Reach horizontal
2.65 m
Dredging depth
2.85 m
Engine manuf.
Yanmar
Engine type
3TN78-RJB
Engine power
17 kW
Displacement
1.23 l
No. of cylinders
3
Cylinder bore x stroke
78x86 mm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 25 FAQ

When was the John Deere Construction 25 manufactured?

The John Deere Construction 25 was manufactured from 1989 to 2021.

How much does the John Deere Construction 25 mini excavator weigh?

The John Deere Construction 25 mini excavator weighs 2.9 tons.

What are the transport dimensions of the John Deere Construction 25 mini excavator?

The John Deere Construction 25 mini excavator has a transport length of 4.69 meters, a transport width of 1.45 meters, and a transport height of 2.38 meters.

What is the track width of the John Deere Construction 25 mini excavator?

The John Deere Construction 25 mini excavator has a track width of 320 mm.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 25 mini excavator?

The John Deere Construction 25 mini excavator has a dredging depth of 2.85 meters and a maximum horizontal reach of 2.65 meters.

What is the bucket capacity of the John Deere Construction 25 mini excavator?

The bucket capacity of the John Deere Construction 25 mini excavator is 0.8 cubic meters.

How much is a John Deere Construction 25 Mini excavator (1989u20132021) worth?

The residual value of the John Deere Construction 25 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
