45N IHI excavator specs & dimensions (2005 - 2016)

IHI 45N is a mini excavator manufactured from 2005 to 2016, with a weight of 4 tons. It features a track width of 400 mm, a transp…

IHI 45N is a mini excavator manufactured from 2005 to 2016, with a weight of 4 tons. It features a track width of 400 mm, a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters. The bucket width is 0.685 meters.

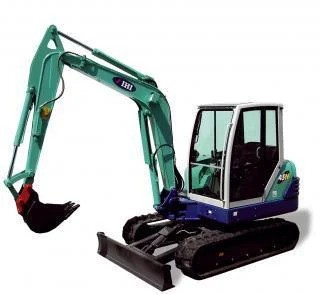

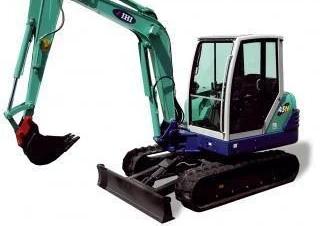

Mini Excavators IHI 45N

Technical specs - 45N IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4 t
Transport length
5 m
Transport width
1 m
Transport height
2 m
Bucket capacity
0.16 m³
Bucket width
0.685 m
Track width
400 mm
Max. Reach horizontal
5.77 m
Dredging depth
3.65 m
Engine manuf.
Yanmar
Engine type
4TNE88
Engine power
29.9 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, tear-out force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

IHI 45N FAQ

When was the IHI 45N manufactured?

The IHI 45N was manufactured from 2005 to 2016.

How much does the IHI 45N mini excavator weigh?

The IHI 45N mini excavator weighs 4 tons.

What are the transport dimensions of the IHI 45N mini excavator?

The IHI 45N has a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters.

What is the track width of the IHI 45N mini excavator's undercarriage?

The IHI 45N mini excavator has a track width of 400 mm.

What are the dredging depth and maximum horizontal reach of the IHI 45N mini excavator?

The IHI 45N mini excavator has a dredging depth of 3.65 meters and a maximum horizontal reach of 5.77 meters.

What are the specifications of the bucket on the IHI 45N mini excavator?

The bucket of the IHI 45N has a capacity of 0.16 cubic meters and a width of 0.685 meters.
