35NX IHI excavator specs & dimensions (2005 - 2016)

IHI 35NX is a mini excavator manufactured from 2005 to 2016, with a weight of 3.375 tons. It features a track width of 600 mm, a t…

IHI 35NX is a mini excavator manufactured from 2005 to 2016, with a weight of 3.375 tons. It features a track width of 600 mm, a transport length of 4 meters, a transport width of 1 meter, and a transport height of 2 meters. The dredging depth of this model is 4 meters.

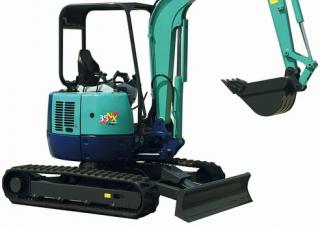

Mini Excavators IHI 35NX

Technical specs - 35NX IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.38 t
Transport length
4 m
Transport width
1 m
Transport height
2 m
Bucket capacity
0.11 m³
Bucket width
0.3 m
Track width
600 mm
Max. Reach horizontal
6.03 m
Dredging depth
4 m
Engine manuf.
Yanmar
Engine type
3TNV84
Engine power
18.5 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, tear-out force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

IHI 35NX FAQ

When was the IHI 35NX manufactured?

The IHI 35NX was manufactured from 2005 to 2016.

How much does the IHI 35NX mini excavator weigh?

The IHI 35NX mini excavator weighs 3.38 tons.

What are the transport dimensions of the IHI 35NX mini excavator?

The IHI 35NX has a transport length of 4 meters, a transport width of 1 meter, and a transport height of 2 meters.

What is the track width of the IHI 35NX mini excavator?

The IHI 35NX mini excavator has a track width of 600 mm.

What is the excavation performance of the IHI 35NX mini excavator?

The IHI 35NX mini excavator has a dredging depth of 4 meters and a maximum horizontal reach of 6.03 meters.

What are the specifications of the primary work tool bucket on the IHI 35NX mini excavator?

The primary work tool bucket of the IHI 35NX has a capacity of 0.11 cubic meters and a width of 0.3 meters.
