28N IHI excavator specs & dimensions (2005 - 2016)

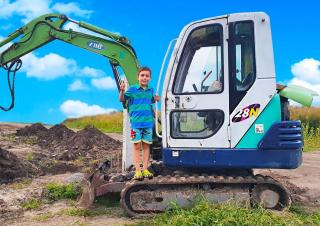

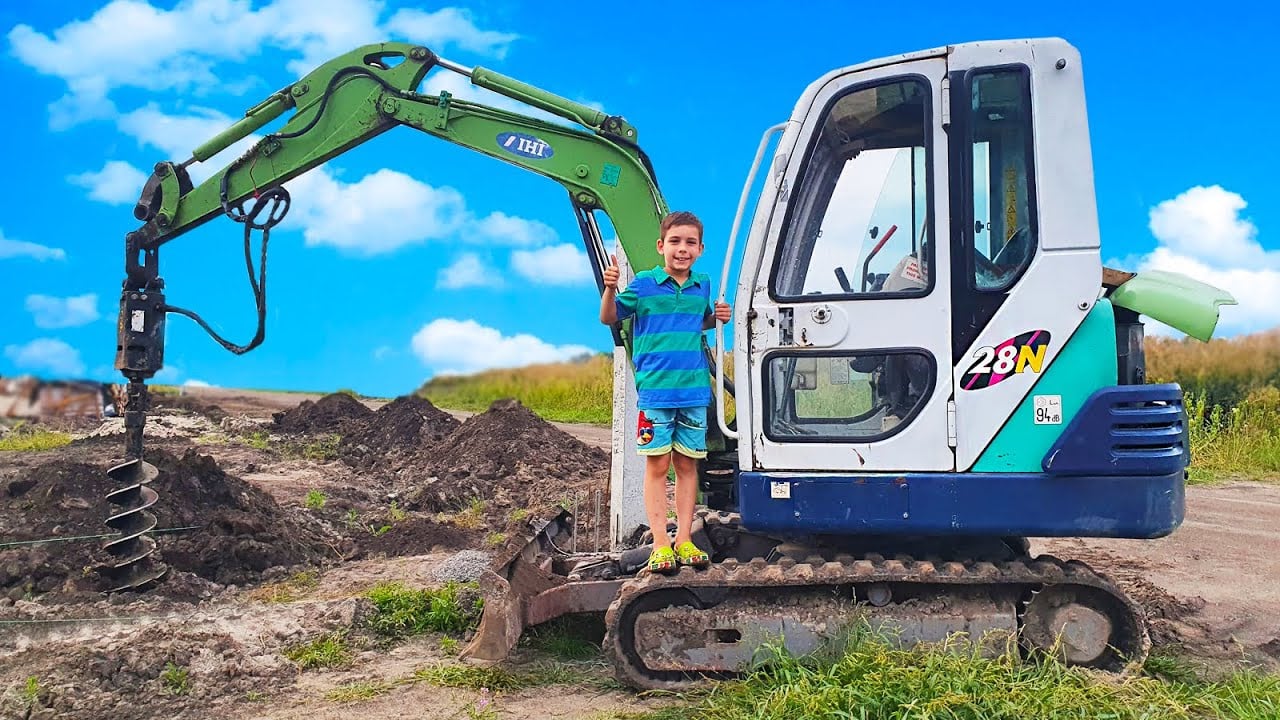

IHI 28N is a mini excavator manufactured from 2005 to 2016. It has a weight of 2 tons and a track width of 600 mm. The transport d…

IHI 28N is a mini excavator manufactured from 2005 to 2016. It has a weight of 2 tons and a track width of 600 mm. The transport dimensions are 4 meters in length, 1 meter in width, and 2 meters in height. The machine features a tear-out force of 19.6 kN, a dredging depth of 2 meters, and a maximum horizontal reach of 4 meters.

Mini Excavators IHI 28N

Technical specs - 28N IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.5 t
Transport length
4.17 m
Transport width
1.55 m
Transport height
2.32 m
Bucket capacity
0.08 m³
Track width
600 mm
Driver protection
Kb
Max. Reach horizontal
4.31 m
Dredging depth
2.52 m
Tear-out force
19.6 kN
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.8 kW

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

IHI 28N FAQ

When was the IHI 28N manufactured?

The IHI 28N was manufactured from 2005 to 2016.

How much does the IHI 28N mini excavator weigh?

The IHI 28N mini excavator weighs 2.5 tons.

What are the transport dimensions of the IHI 28N mini excavator?

The IHI 28N mini excavator has a transport length of 4.17 meters, a transport width of 1.55 meters, and a transport height of 2.32 meters.

What is the track width of the IHI 28N mini excavator's undercarriage?

The IHI 28N mini excavator has a track width of 600 mm.

What are the excavation performance specifications of the IHI 28N mini excavator?

The IHI 28N mini excavator has a dredging depth of 2.52 meters and a maximum horizontal reach of 4.31 meters.

What are the power ratings of the IHI 28N mini excavator?

There are no power rating specifications available for the IHI 28N mini excavator in the provided data.

What is the bucket capacity of the IHI 28N mini excavator?

The IHI 28N mini excavator has a bucket capacity of 0.08 cubic meters.

What operator safety and support features does the IHI 28N mini excavator have?

The IHI 28N mini excavator provides operator safety through a protective cabin.
