17VX-3 IHI excavator specs & dimensions (2012 - 2016)

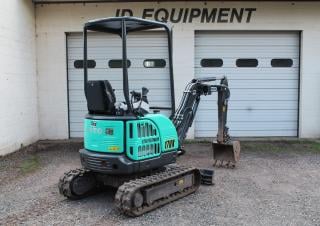

IHI 17VX-3 is a mini excavator manufactured from 2012 to 2016. It has a weight of 1.625 tons, a transport length of 3 meters, a tr…

IHI 17VX-3 is a mini excavator manufactured from 2012 to 2016. It has a weight of 1.625 tons, a transport length of 3 meters, a transport width of 0.99 meters, and a transport height of 2 meters. The machine features a tear-out force of 24 kN and a bucket capacity of 0.045 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators IHI 17VX-3

Technical specs - 17VX-3 IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.63 t
Transport length
3 m
Transport width
0.99 m
Transport height
2 m
Bucket capacity
0.045 m³
Bucket width
0.45 m
Driver protection
FD
Max. Reach horizontal
3.75 m
Dredging depth
2.13 m
Tear-out force
24 kN
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
10 kW

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

IHI 17VX-3 FAQ

When was the IHI 17VX-3 manufactured?

The IHI 17VX-3 was manufactured from 2012 to 2016.

How much does the IHI 17VX-3 mini excavator weigh?

The IHI 17VX-3 mini excavator weighs 1.63 tons.

What are the transport dimensions of the IHI 17VX-3 mini excavator?

The IHI 17VX-3 has transport dimensions of 3 meters in length, 0.99 meters in width, and 2 meters in height.

What are the dredging depth and maximum horizontal reach of the IHI 17VX-3 mini excavator?

The IHI 17VX-3 mini excavator has a dredging depth of 2.13 meters and a maximum horizontal reach of 3.75 meters.

What is the tear-out force of the IHI 17VX-3 mini excavator?

The IHI 17VX-3 mini excavator has a tear-out force of 24 kN.

What are the specifications of the primary work tool bucket on the IHI 17VX-3 mini excavator?

The primary work tool bucket of the IHI 17VX-3 mini excavator has a capacity of 0.045 cubic meters and a width of 0.45 meters.

What operator safety and support features does the IHI 17VX-3 have?

The IHI 17VX-3 is equipped with a canopy for driver protection.

How much is a IHI 17VX-3 Mini excavator (2012u20132016) worth?

The residual value of the IHI 17VX-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
