15VX IHI excavator specs & dimensions (2012 - 2016)

IHI 15VX is a mini excavator manufactured from 2012 to 2016, with a weight of 1.625 tons. It has a transport length of 3 meters, a…

IHI 15VX is a mini excavator manufactured from 2012 to 2016, with a weight of 1.625 tons. It has a transport length of 3 meters, a transport width of 0.99 meters, and a transport height of 2 meters. The machine features a tear-out force of 24 kN and is equipped with a blade.

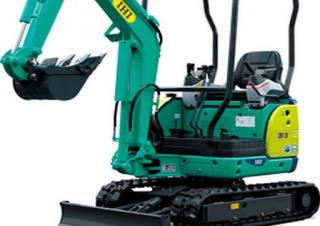

Mini Excavators IHI 15VX

Technical specs - 15VX IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.63 t
Transport length
3 m
Transport width
0.99 m
Transport height
2 m
Bucket width
0.46 m
Driver protection
FD
Max. Reach horizontal
3.76 m
Dredging depth
2.13 m
Tear-out force
24 kN
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
10 kW
Emission level
Tier IV/Stage IIIA

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., track width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

IHI 15VX FAQ

When was the IHI 15VX manufactured?

The IHI 15VX was manufactured from 2012 to 2016.

How much does the IHI 15VX mini excavator weigh?

The IHI 15VX mini excavator weighs 1.63 tons.

What are the transport dimensions of the IHI 15VX mini excavator?

The IHI 15VX mini excavator has a transport length of 3 meters, a transport width of 0.99 meters, and a transport height of 2 meters.

What are the excavation performance specifications of the IHI 15VX mini excavator?

The IHI 15VX mini excavator has a dredging depth of 2.13 meters and a maximum horizontal reach of 3.76 meters.

What is the tear-out force of the IHI 15VX mini excavator?

The IHI 15VX mini excavator has a tear-out force of 24 kN.

What is the bucket width of the IHI 15VX mini excavator?

The bucket width of the IHI 15VX mini excavator is 0.46 meters.

What operator safety and support features does the IHI 15VX have?

The IHI 15VX has a canopy for driver protection.
