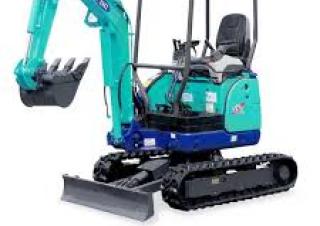

15NX IHI excavator specs & dimensions (2005 - 2016)

IHI 15NX is a Mini Excavator manufactured from 2005 to 2016, with a weight of 1 ton. It has a transport length of 3 meters, a tran…

IHI 15NX is a Mini Excavator manufactured from 2005 to 2016, with a weight of 1 ton. It has a transport length of 3 meters, a transport width of 0.96 meters, and a transport height of 2 meters. The machine features a tear-out force of 16.4 kN and a bucket capacity of 0.044 cubic meters.

Mini Excavators IHI 15NX

Technical specs - 15NX IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1 t
Transport length
3 m
Transport width
0.96 m
Transport height
2 m
Bucket capacity
0.044 m³
Bucket width
0.45 m
Driver protection
Kb
Max. Reach horizontal
3.73 m
Dredging depth
2.1 m
Tear-out force
16.4 kN
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
10.5 kW

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

IHI 15NX FAQ

When was the IHI 15NX manufactured?

The IHI 15NX was manufactured from 2005 to 2016.

How much does the IHI 15NX mini excavator weigh?

The IHI 15NX mini excavator weighs 1 ton.

What are the transport dimensions of the IHI 15NX mini excavator?

The IHI 15NX has a transport length of 3 meters, a transport width of 0.96 meters, and a transport height of 2 meters.

What are the excavation performance specifications of the IHI 15NX mini excavator?

The IHI 15NX mini excavator has a dredging depth of 2.1 meters and a maximum horizontal reach of 3.73 meters.

What is the tear-out force of the IHI 15NX mini excavator?

The IHI 15NX mini excavator has a tear-out force of 16.4 kN.

What are the bucket specifications of the IHI 15NX mini excavator?

The IHI 15NX mini excavator has a bucket capacity of 0.044 cubic meters and a bucket width of 0.45 meters.

What driver protection feature does the IHI 15NX have?

The IHI 15NX has a cabin for driver protection.

How much is a IHI 15NX Mini excavator (2005u20132016) worth?

The residual value of the IHI 15NX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
