R17Z-9A Hyundai excavator specs & dimensions (2020 - 2026)

Hyundai R17Z-9A is a mini excavator manufactured since 2020, with a weight of 1.7 tons. It features a track width of 230 mm and ha…

Hyundai R17Z-9A is a mini excavator manufactured since 2020, with a weight of 1.7 tons. It features a track width of 230 mm and has transport dimensions of 3.48 m in length, 0.99 m in width, and 2.32 m in height. The excavator has a tear-out force of 8.5 kN, a dredging depth of 2.2 m, and a maximum horizontal reach of 3.9 m. The bucket width is 0.41 m with a capacity of 0.04 m³. Special equipment includes a blade, rubber track, and track adjustment.

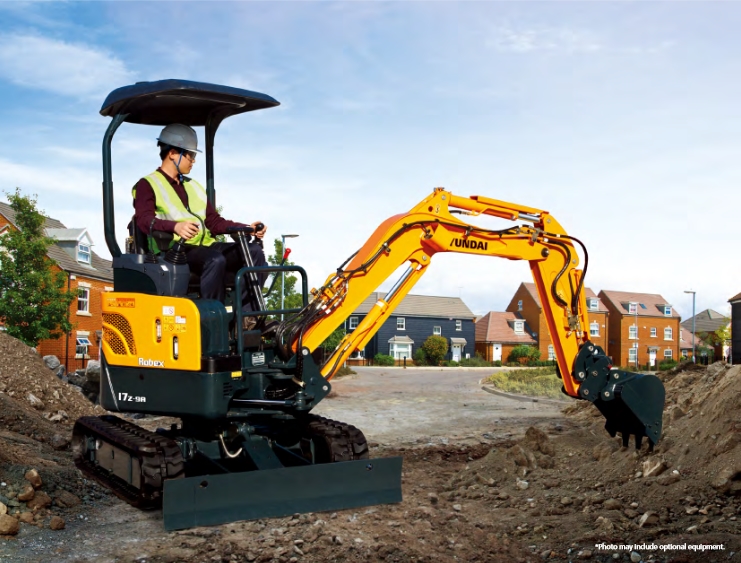

Mini Excavators Hyundai R17Z-9A
Mini Excavators Hyundai R17Z-9A
Mini Excavators Hyundai R17Z-9A
Mini Excavators Hyundai R17Z-9A
Mini Excavators Hyundai R17Z-9A
Mini Excavators Hyundai R17Z-9A

Visit Hyundai live at

Technical specs - R17Z-9A Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.7 t
Transport length
3.48 m
Transport width
0.99 m
Transport height
2.32 m
Bucket capacity
0.04 m³
Bucket capacity min.
0.04 m³
Bucket capacity max.
0.04 m³
Bucket width
0.41 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.9 m
Dredging depth
2.2 m
Tear-out force
8.5 kN
Model series
9A
Engine manuf.
Kubota
Engine type
D902
Engine power
12.5 kW
Displacement
0.898 l
Revolutions at max torque
1900 rpm
Max. torque
54 Nm
Cylinder bore x stroke
72x74 mm
Emission level
V

More technical details, like: standard tyres, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai R17Z-9A FAQ

When was the Hyundai R17Z-9A manufactured?

The Hyundai R17Z-9A was first produced in 2020.

How much does the Hyundai R17Z-9A mini excavator weigh?

The Hyundai R17Z-9A mini excavator weighs 1.7 tons.

What are the transport dimensions of the Hyundai R17Z-9A mini excavator?

The Hyundai R17Z-9A has a transport length of 3.48 meters, a transport width of 0.99 meters, and a transport height of 2.32 meters.

What is the track width of the Hyundai R17Z-9A mini excavator?

The Hyundai R17Z-9A mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Hyundai R17Z-9A mini excavator?

The Hyundai R17Z-9A mini excavator has a dredging depth of 2.2 meters and a maximum horizontal reach of 3.9 meters.

What is the tear-out force of the Hyundai R17Z-9A mini excavator?

The Hyundai R17Z-9A mini excavator has a tear-out force of 8.5 kN.

What are the bucket specifications of the Hyundai R17Z-9A mini excavator?

The Hyundai R17Z-9A mini excavator has a bucket capacity of 0.04 cubic meters and a bucket width of 0.41 meters.

What operator safety and support features does the Hyundai R17Z-9A have?

The Hyundai R17Z-9A is equipped with a canopy for driver protection.

How much is a Hyundai R17Z-9A Mini excavator (2020u20132025) worth?

The residual value of the Hyundai R17Z-9A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
