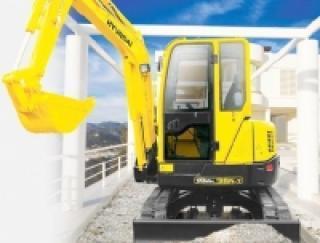

R 36-7 Hyundai excavator specs & dimensions (2006 - 2008)

Hyundai R 36-7 is a Mini Excavator manufactured from 2006 to 2008, with a weight of 3.6 t. It features a track width of 300 mm, a …

Hyundai R 36-7 is a Mini Excavator manufactured from 2006 to 2008, with a weight of 3.6 t. It features a track width of 300 mm, a transport length of 4.68 m, a transport width of 1.58 m, and a transport height of 2.47 m. The bucket capacity is 0.11 m³, and it comes equipped with a blade and rubber track.

Mini Excavators Hyundai R 36-7

Visit Hyundai live at

Technical specs - R 36-7 Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.6 t
Transport length
4.68 m
Transport width
1.58 m
Transport height
2.47 m
Bucket capacity
0.11 m³
Track width
300 mm
Driver protection
KbR
Tear-out force
30.1 kN
Model series
7
Engine manuf.
Mitsubishi
Engine type
S3L2Y131 NSB
Engine power
19.9 kW
Displacement
1.318 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Hyundai R 36-7 FAQ

When was the Hyundai R 36-7 manufactured?

The Hyundai R 36-7 was manufactured from 2006 to 2008.

How much does the Hyundai R 36-7 mini excavator weigh?

The Hyundai R 36-7 mini excavator weighs 3.6 tons.

What are the transport dimensions of the Hyundai R 36-7 mini excavator?

The Hyundai R 36-7 mini excavator has a transport length of 4.68 meters, a transport width of 1.58 meters, and a transport height of 2.47 meters.

What is the track width of the Hyundai R 36-7 mini excavator?

The Hyundai R 36-7 mini excavator has a track width of 300 mm.

What are the power ratings of the Hyundai R 36-7 mini excavator?

The source data does not provide power ratings for the Hyundai R 36-7 mini excavator.

What is the bucket capacity of the Hyundai R 36-7 mini excavator?

The bucket capacity of the Hyundai R 36-7 mini excavator is 0.11 cubic meters.

What operator safety and support features does the Hyundai R 36-7 have?

The Hyundai R 36-7 is equipped with a cabin that includes ROPS for driver protection.
