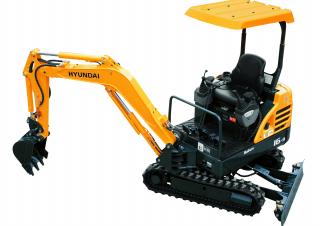

R 16-9 Hyundai excavator specs & dimensions (2010 - 2018)

Engine Technology
Well-proven and reliable Mitsubishi L3E engine, according to current Tier 3A emission control. This engine ensures efficient fuel combustion and reduced noise generation.
Dashboard
The dashboard of the R16-9 displays machine status such as warnings on engine oil pressure, battery charge, engine coolant temperature and fuel gauges.
980 mm (3' 3'') 1250 mm (4' 1'')
Hydraulically Adjustable Undercarriage The track width of our R16-9 can be adjusted between 980 mm and 1,250 mm (3'3" 4‘1 ').The operator can easily adjust the blade width by removing pins. Rubber tracks are standard designed to protect any surface. Mitsubishi L3E The Mitsubishi L3E engine provides maximum power, high reliability and optimum fuel economy in compliance with current EU Stage IIIa or Tier 3a emission regulations.

Easy to Maintain
With open access of doors, covers and engine hoods, air cleaner as well as centralized grease fittings, the machine is a pleasure to maintain.
Extended Life of Components
Durable hydraulic filters, durable hydraulic oil, durable shims and long-lasting bushes reduce operating costs.

Easy Maintenance Access The R16-9 was built with accessibility. All doors, covers and hoods are designed for full open accessibility. The R16-9 provides plenty of room for complete regular maintenance. Extended component life By adopting durable hydraulic fi lter (1000 hrs) and durable hydraulic oil (5000 hrs), operating costs are reduced. Oil change intervals extend to 250 hours of operation as self-lubricating bushes and resin shims are applied. Easily changing air cleaner The R16-9 is equipped with a durable plastic air cleaner engineered for easy servicing. Centralized grease fittings Central grease pads for faster and easier service. Cylinder covers Boom cylinders and dozer blade receive protective envelopes for added protection.

Rugged Upper and Lower Frame
The structure of the upper frame is designed to absorb high stress and withstand inherent external influences. A reinforced box section rail frame provides exceptional strength and longer service life for tough working conditions.
Compact design
A compact design allows the operator to work in confined areas, as urban and road construction. The R16-9 variable undercarriage provides maximum stability when working and minimum passage width for transporting the machine to have full flexibility and efficiency on any restricted job site.

Efficient Control System
The ECUs are ergonomically located for improved operator comfort and higher productivity. A safety lever on the left side console is installed to prevent exiting the cab with active hydraulic control levers.
Operator's Convenience
Hanging seat, ergonomically designed joysticks with wrist rests and plenty of leg room help reduce operator fatigue. A range of indicators and gauges are displayed on the monitor that alert the operator to machine status. The monitoring system shows seven warning indicators, water temperature meter, fuel indicator and hour meter.

Comfortable operating space In the 9 Series canopy, you can easily adjust seat and wrist settings to your preferred comfort. Pedals (traveling - boom offset - attachment) are installed in a convenient position allowing you to fold in for extra foot space. Various sizes of cup holders. Adjustable wrist rests to increase operator comfort. Ergonomically located control devices for higher production and better effi ciency. Operator convenience The left and right joysticks are ergonomically placed for convenient operation. Pilot operated levers control the dozer blade and track extension. Easy-to-reach control switches on the left side console improve operating costs. A tiltable left hand console gives the operator better access to the cab. A safety lock system is fitted so that no exit from the cabin with active hydraulic control levers is prevented. When the safety lever and left side console are positioned upright, hydraulic functions are disabled. Stressless work suffices; your working environment should be strained. Hyundai R16-9 features an adjustable suspension seat, ergonomically designed joystick set up and plenty of room for minimizer use.
