HX35AZ Hyundai excavator specs & dimensions (2023 - 2026)

Weight: 3.88t – Transport length: 4.783m – Transport width: 1.74m – Transport height: 2.505m – Bucket capacity: 0.11m³ – Bucket ca…

Weight: 3.88t – Transport length: 4.783m – Transport width: 1.74m – Transport height: 2.505m – Bucket capacity: 0.11m³ – Bucket capacity min.: 0.11m³

Check out detailed specifications, information and technical data for Hyundai HX35AZ excavator manufactured between 2023 - 2026. Get more in-depth insight with Hyundai HX35AZ digger specifications. See information, like: Weight: 3.88t – Transport length: 4.783m – Transport width: 1.74m – Transport height: 2.505m – Bucket capacity: 0.11m³ – Bucket capacity min.: 0.11m³ and more.

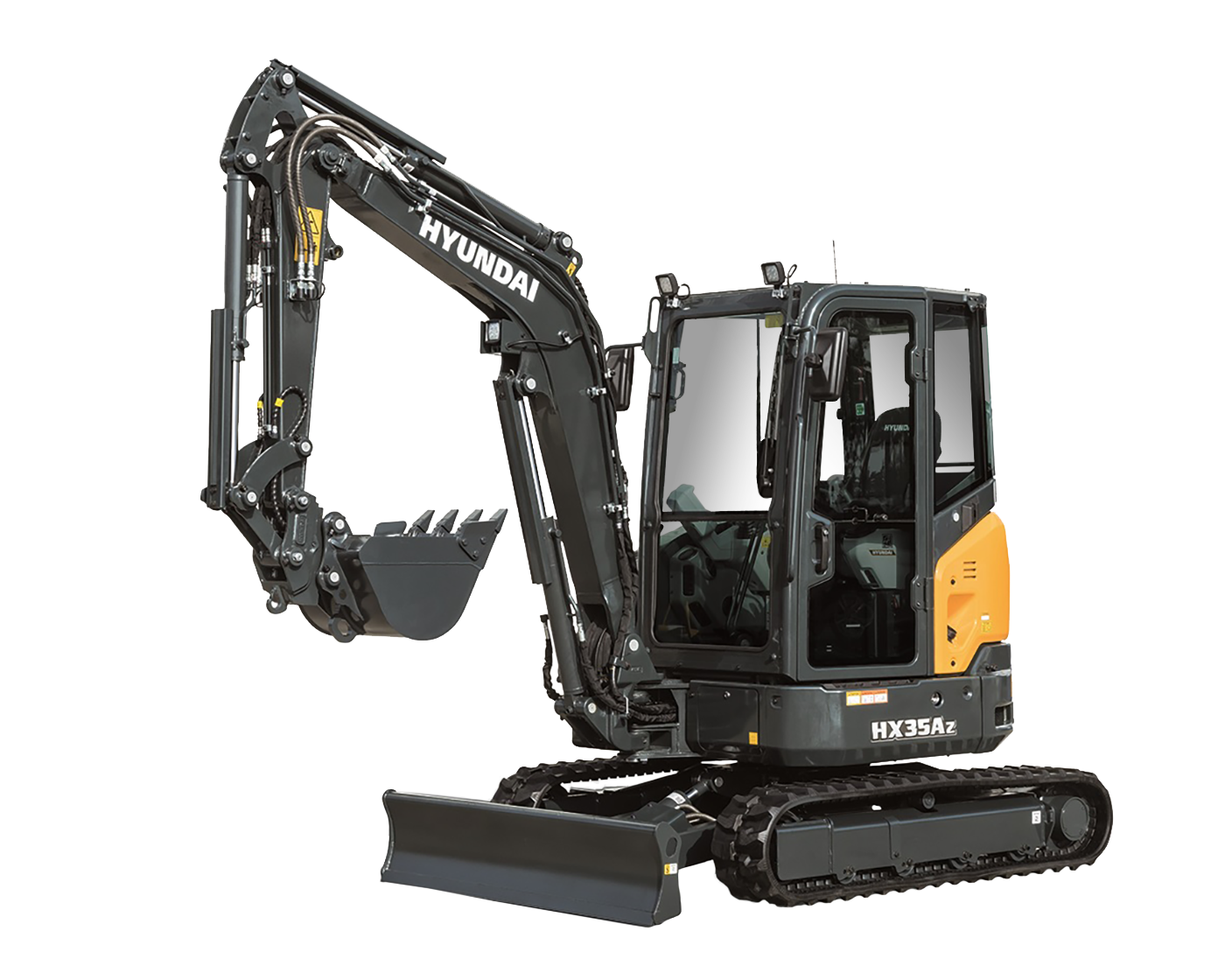

Mini Excavators Hyundai HX35AZ

Visit Hyundai live at

Technical specs - HX35AZ Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.88 t
Transport length
4.783 m
Transport width
1.74 m
Transport height
2.505 m
Bucket capacity
0.11 m³
Bucket capacity min.
0.11 m³
Bucket capacity max.
0.14 m³
Bucket width
0.5 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
5.29 m
Dredging depth
2.98 m
Engine manuf.
Kubota
Engine type
D1703
Engine power
25.2 kW
Displacement
1.647 l
Max. torque
97.4 Nm
No. of cylinders
3
Cylinder bore x stroke
87x92,4 mm
Emission level
V

More technical details, like: standard tyres, tear-out force, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Hyundai HX35AZ FAQ

When was the Hyundai HX35AZ manufactured?

The Hyundai HX35AZ was first produced in 2023.

How much does the Hyundai HX35AZ mini excavator weigh?

The Hyundai HX35AZ mini excavator weighs 3.88 tons.

What are the transport dimensions of the Hyundai HX35AZ mini excavator?

The Hyundai HX35AZ has a transport length of 4.783 meters, a transport width of 1.74 meters, and a transport height of 2.505 meters.

What is the track width of the Hyundai HX35AZ mini excavator?

The Hyundai HX35AZ mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Hyundai HX35AZ mini excavator?

The Hyundai HX35AZ mini excavator has a dredging depth of 2.98 meters and a maximum horizontal reach of 5.29 meters.

What are the bucket specifications of the Hyundai HX35AZ mini excavator?

The Hyundai HX35AZ mini excavator has a bucket capacity ranging from 0.11 to 0.14 cubic meters and a bucket width of 0.5 meters.

What operator safety and support feature does the Hyundai HX35AZ have?

The Hyundai HX35AZ provides operator safety with a cabin for driver protection.

How much is a Hyundai HX35AZ Mini excavator (2023u20132025) worth?

The residual value of the Hyundai HX35AZ depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
