H17D Hanix excavator specs & dimensions (2019 - 2026)

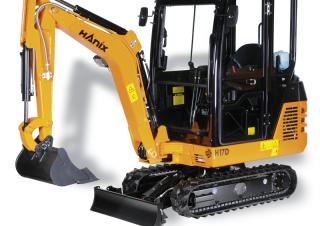

Hanix H17D is a mini excavator manufactured since 2019, with a weight of 1.7 tons. It has a transport length of 3.81 meters, a tra…

Hanix H17D is a mini excavator manufactured since 2019, with a weight of 1.7 tons. It has a transport length of 3.81 meters, a transport width of 1.3 meters, and a transport height of 2.25 meters. The machine features a tear-out force of 14.8 kN, a dredging depth of 2.495 meters, and a maximum horizontal reach of 4.005 meters. The bucket width is 0.58 meters with a capacity of 0.04 cubic meters. Special equipment includes air conditioning and a blade.

H17D

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - H17D Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.7 t

Transport length: 3.81 m

Transport width: 1.3 m

Transport height: 2.25 m

Bucket capacity: 0.04 m³

Bucket width: 0.58 m

Driver protection: Kb

Max. Reach horizontal: 4.005 m

Dredging depth: 2.495 m

Tear-out force: 14.8 kN

Model series: H

Engine manuf.: Kubota

Engine type: D782

Engine power: 11.4 kW

Displacement: 0.778 l

Revolutions at max torque: 2600 rpm

Max. torque: 45.4 Nm

No. of cylinders: 3

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

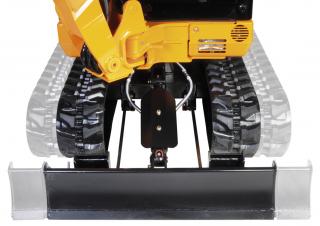

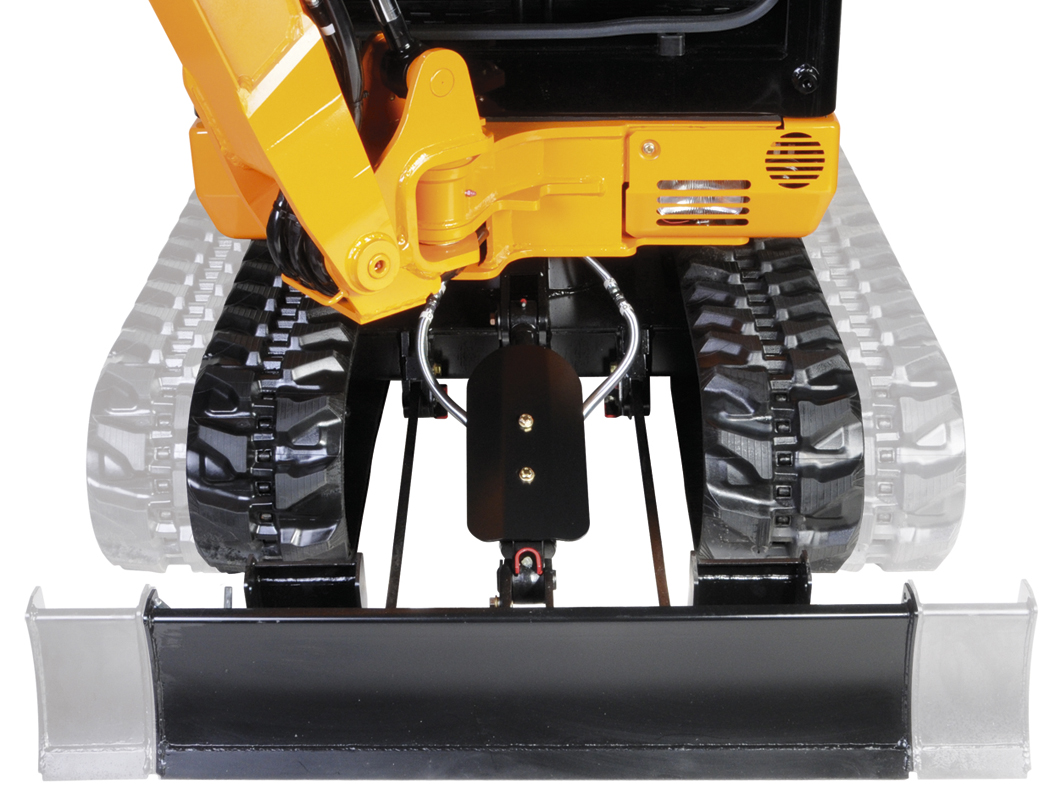

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Hanix H17D FAQ

When was the Hanix H17D manufactured?

The Hanix H17D was first produced in 2019.

How much does the Hanix H17D mini excavator weigh?

The Hanix H17D mini excavator weighs 1.7 tons.

What are the transport dimensions of the Hanix H17D mini excavator?

The Hanix H17D has a transport length of 3.81 meters, a transport width of 1.3 meters, and a transport height of 2.25 meters.

What are the excavation performance specifications of the Hanix H17D mini excavator?

The Hanix H17D mini excavator has a dredging depth of 2.495 meters and a maximum horizontal reach of 4.005 meters.

What is the tear-out force of the Hanix H17D mini excavator?

The Hanix H17D mini excavator has a tear-out force of 14.8 kN.

What are the specifications of the primary work tool bucket on the Hanix H17D mini excavator?

The Hanix H17D mini excavator has a bucket with a capacity of 0.04 cubic meters and a width of 0.58 meters.

What operator safety and support features does the Hanix H17D have?

The Hanix H17D provides operator safety through a protective cabin.

How much is a Hanix H17D Mini excavator (2019u20132025) worth?

The residual value of the Hanix H17D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hanix H17D overview

Hydraulics

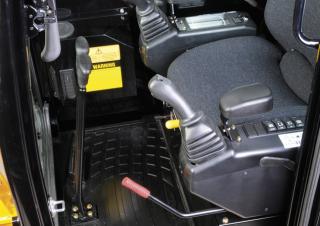

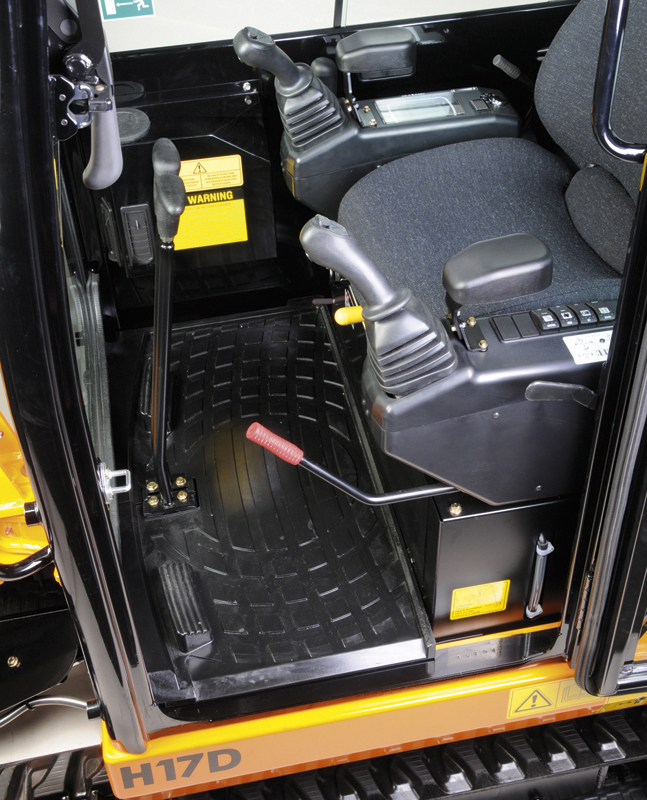

Well-appointed operator's station with thumb-operated proportional boom swing and auxiliary hydraulic functions.

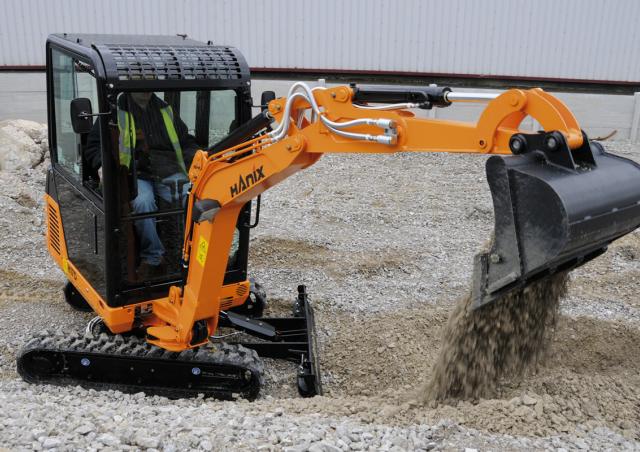

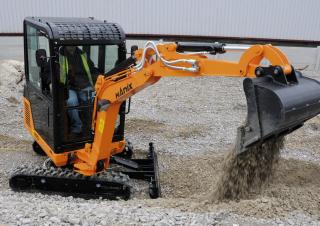

The Hanix H17D is ideally suited to tasks where access and working space dictate a smaller machine without compromising performance. Easily transported, the H17D ensures quick transfer between jobsites. With the combination of a fuel efficient Kubota engine and variable displacement hydraulic piston pump, Machine power is optimized. Hydraulic pilot control for ALL hydraulic functions ensures smooth and precise control with additional built-in reliability (no cables or linkages). Equipped with steel body throughout and a wrap-around counterweight, the machine is well matched to the rigour of job conditions on site. In addition, the grab mounted 2-way proportional auxiliary hydraulic controls ensure maximum versatility through the ability to use various hydraulic attachments.

Dimensions and weight

Ground Pressure - Cabin Rubber Tracks	kPa / psi	26.7 / 3.87
ENGINE
Make / Model / Cylinders / Displacement (cc)		Kubota / D782 / 3 / 778
Rated Power	kW / ps	11.4 / 15.5 @ 2600 rpm
Maximum Torque	Nm	45.4
WORKING RANGE
Maximum Digging Depth	mm	2495
Maximum Digging Height	mm	3560
Maximum Dumping Height	mm	2435
Maximum Vertical Digging Depth	mm	2080
Maximum Digging Radius	mm	4060
Maximum Reach at Ground	mm	4005
Minimum Turning Radius Front	mm	1630
Minimum Turning Radius Swing	mm	1235
Rear Turning Radius	mm	1070
Boom Swing Angle (L / R)	degrees	L80 / R50
PERFORMANCE
Maximum Digging Power (Bucket / Arm)	kN	14.8 / 7.8
Travel Speed (Low / High)	km/h	2.2 / 3.9
Slew Speed	rpm	10.9
Gradeability	degrees	30
HYDRAULIC SYSTEM
Hydraulic Pump Types		Piston x 2 + Gear x 2
Hydraulic Pump Flows	litres / min	16.9 x 2 + 15.6 + 7.0
Auxiliary Hydraulic Flow (PTO)	litres / min	32.5
Relief Pressures	Mpa	20.6 x 2 + 17.2 + 3.2
FLUID CAPACITIES
Fuel Tank	litres	18
Hydraulic Tank	litres	21
Engine Oil	litres	3.6
Cooling System	litres	5
Travel Motor Reduction Gearbox	litres	0.33

Other features

Ease of operation Safety
Pilot operated hydraulic controls throughout aid-gentle and precise operation. Excellent all round visibility. Thumb-actuated boom swing integrated into joysticks and auxiliary hydraulic functions. Adjustable operator seat with suspension. Console mounted display includes fuel gauge. Height adjustable wrist rests. Lever lock prevents inadvertent hydraulic operation and starting the engine. Battery isolator switch. Emergency boom lowering valve. Auxiliary flow socket for beacon. ROPS, TOPS, FOPS protection (model dependant). Retractable seat Belt. External Mirrors (Cabin model).
