H 50 B Hanix excavator specs & dimensions (1999 - 2004)

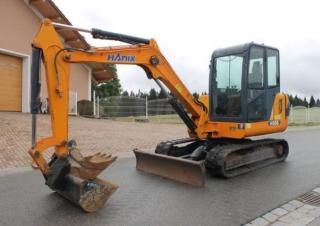

Hanix H 50 B is a mini excavator manufactured from 1999 to 2004, with a weight of 4.65 tons. It features a track width of 400 mm a…

Hanix H 50 B is a mini excavator manufactured from 1999 to 2004, with a weight of 4.65 tons. It features a track width of 400 mm and a transport width of 1.85 meters. The bucket capacity is 0.18 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Hanix H 50 B

Technical specs - H 50 B Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.65 t
Transport width
1.85 m
Bucket capacity
0.18 m³
Track width
400 mm
Driver protection
KbR
Dredging depth
4.09 m
Tear-out force
44.1 kN
Model series
H
Engine manuf.
Isuzu
Engine type
4 LE 1
Engine power
31.6 kW

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Hanix H 50 B FAQ

When was the Hanix H 50 B manufactured?

The Hanix H 50 B was manufactured from 1999 to 2004.

How much does the Hanix H 50 B weigh?

The Hanix H 50 B weighs 4.65 tons.

What is the transport width of the Hanix H 50 B mini excavator?

The transport width of the Hanix H 50 B mini excavator is 1.85 meters.

What is the track width of the Hanix H 50 B mini excavator?

The Hanix H 50 B mini excavator has a track width of 400 mm.

What is the dredging depth of the Hanix H 50 B mini excavator?

The Hanix H 50 B mini excavator has a dredging depth of 4.09 meters.

What is the tear-out force of the Hanix H 50 B mini excavator?

The Hanix H 50 B mini excavator has a tear-out force of 44.1 kN.

What is the bucket capacity of the Hanix H 50 B mini excavator?

The Hanix H 50 B mini excavator has a bucket capacity of 0.18 cubic meters.

What operator safety features does the Hanix H 50 B mini excavator have?

The Hanix H 50 B mini excavator is equipped with a cabin that includes ROPS for driver protection.
