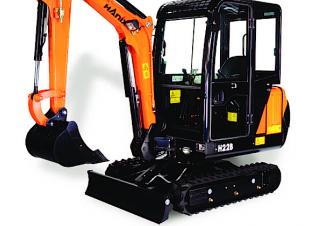

H 22 B Hanix excavator specs & dimensions (2001 - 2005)

Hanix H 22 B is a mini excavator manufactured from 2001 to 2005. It has a weight of 2.2 tons and a track width of 230 mm. The tran…

Hanix H 22 B is a mini excavator manufactured from 2001 to 2005. It has a weight of 2.2 tons and a track width of 230 mm. The transport dimensions are 4.08 meters in length, 1.38 meters in width, and 2.25 meters in height. The maximum horizontal reach is 3.975 meters, and the bucket capacity is 0.06 cubic meters. Special equipment includes a blade and rubber tracks.

H 22 B

Years of manufacture: 2001—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - H 22 B Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.2 t

Transport length: 4.08 m

Transport width: 1.38 m

Transport height: 2.25 m

Bucket capacity: 0.06 m³

Track width: 230 mm

Driver protection: KbR

Max. Reach horizontal: 3.975 m

Dredging depth: 2.66 m

Tear-out force: 16.3 kN

Model series: H

Engine manuf.: Isuzu

Engine type: 3 YC 1

Engine power: 13 kW

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Hanix H 22 B FAQ

When was the Hanix H 22 B manufactured?

The Hanix H 22 B was manufactured from 2001 to 2005.

How much does the Hanix H 22 B mini excavator weigh?

The Hanix H 22 B mini excavator weighs 2.2 tons.

What are the transport dimensions of the Hanix H 22 B mini excavator?

The Hanix H 22 B has a transport length of 4.08 meters, a transport width of 1.38 meters, and a transport height of 2.25 meters.

What is the track width of the Hanix H 22 B mini excavator?

The Hanix H 22 B mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Hanix H 22 B mini excavator?

The Hanix H 22 B mini excavator has a dredging depth of 2.66 meters and a maximum horizontal reach of 3.975 meters.

What power ratings are available for the Hanix H 22 B mini excavator?

There are no power ratings provided for the Hanix H 22 B mini excavator in the available data.

What is the bucket capacity of the Hanix H 22 B mini excavator?

The Hanix H 22 B mini excavator has a bucket capacity of 0.06 cubic meters.

What operator safety features does the Hanix H 22 B have?

The Hanix H 22 B is equipped with a cabin that includes ROPS for driver protection.

How much is a Hanix H 22 B Mini excavator (2001u20132005) worth?

The residual value of the Hanix H 22 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hanix H 22 B overview

Engine / Driveline and transmission

Low Environmental Impact
Lean-burn fuel-efficient Mitsubishi engine for minimal environmental impact. Emissions comply with Tier 4 (EPA) regulations. Tow weight model reduces fuel costs for transportation.

Tyres / Tracks

The Hanix H22B boasts a vertical digging depth and digging force that's amongst the best in its class. Compact and robust, the H22B has a long ‘X' track frame for extra strength and stability. It's light enough to be easily transported and is ideal for a wide range of digging applications. Its powerful, fuel efficient engine combines with a variable output piston pump to provide the operator with smooth power for all operations.
The X long track frame with generous ground clearance provides power and versatility in all conditions.

Dimensions and weight

Specification
Machine weight (Canopy - Rubber Tracks / Cab - Rubber Tracks)	kg	2080 / 2200
Dimension (length / width / height)	mm	4075 (4085) / 1380 / 2290
Dozer blade dimensions (width / height)	mm	1380 / 270
Bucket (capacity / width)	std. ISO7451"	m3 /mm	0.06 / 450
Noise Level		LwA / LpA	93/82
Engine	Model	–	MITSUBISHI L3E
Displacement	cc	952
Rated power	–	12.5kW / 17.0ps / 2400 rpm
Fuel tank capacity	litres	29
Working Range	Max. digging depth (Std / Long)	mm	2365 / 2665
Max. digging height (Std / Long)	mm	3745 / 3940
Max. dumping height (Std / Long)	mm	2510 / 2700
Max. vertical digging depth (Std / Long)	mm	1780 / 2060
Max. digging radius (Std / Long)	mm	4065 / 4355
Max. reach at ground (Std / Long)	mm	3965 / 4260
Min. turning radius front (Std / Long)	mm	1750 / 1795
Rear turning radius	mm	1255
Min. turning radius swing (Std / Long)	mm	1385 / 1435
Boom swing angle (L / R)	degrees	L80 / R50
Performance	Max. digging power Bucket / Arm (Std / Long)	kN	16.3 / 13.7 (16.3 / 9.2)
Travelling speed (low / high)	km/h	2.2 / 3.8
Slew speed	min-1	11.5
Hydraulic System	Pump Type	–	Piston 2 + Gear 1
Oil flow quantity	litres/min	24.0 / 24.0 / 15.6
PTO Oil flow quantity	litres/min	48.0
Main relief pressure	MPa	18.6 / 18.6 / 17.2
Hyd. tank capacity	litres	33

Lifting point Height (m)	Lifting point radius (2.5m)	Lifting point max radius
Over-front	Over-side	Over-front	Over-side	m
Blade Down	Blade Up	Blade Down	Blade Up
2.0	338	338	338	330	330	330	3.1
0.0	470	566	498	359	359	328	3.3
-1.0	464	464	464	368	368	368	2.7

Other features

Operator-Friendly
Larger cab door for easy operator access and improved visibility. Spacious, comfortable cabin with conveniently located joystick controls. Natural air ventilation through cab flow vents and sliding glass windows. Short pitch rubber tracks reduce travel noise and vibration.

Safety

Serviceability & Safety
Generous engine compartment ensures light work during daily checks. All grease nipples are protected against damage. Flat cab glass, bonded for easy, quick replacement. Work lights on the boom and around the machine to operate in dark conditions.
