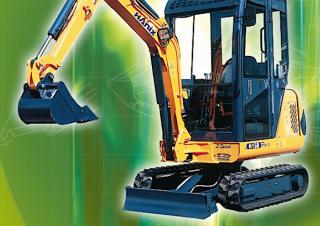

H 15 B-2 Plus Hanix excavator specs & dimensions (2001 - 2005)

Hanix H 15 B-2 Plus is a mini excavator manufactured from 2001 to 2005. It has a weight of 1.63 tons, a track width of 230 mm, and…

Hanix H 15 B-2 Plus is a mini excavator manufactured from 2001 to 2005. It has a weight of 1.63 tons, a track width of 230 mm, and a transport length of 3.74 meters. The transport width is 1.3 meters, and the transport height is 2.26 meters. The bucket capacity is 0.05 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Hanix H 15 B-2 Plus

Technical specs - H 15 B-2 Plus Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.63 t
Transport length
3.74 m
Transport width
1.3 m
Transport height
2.26 m
Bucket capacity
0.05 m³
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.82 m
Dredging depth
2.33 m
Tear-out force
14.4 kN
Model series
H
Engine manuf.
Mitsubishi
Engine type
L 3 E
Engine power
12.7 kW
Displacement
0.952 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hanix H 15 B-2 Plus FAQ

When was the Hanix H 15 B-2 Plus manufactured?

The Hanix H 15 B-2 Plus was manufactured from 2001 to 2005.

How much does the Hanix H 15 B-2 Plus weigh?

The Hanix H 15 B-2 Plus weighs 1.63 tons.

What are the transport dimensions of the Hanix H 15 B-2 Plus mini excavator?

The Hanix H 15 B-2 Plus has a transport length of 3.74 meters, a transport width of 1.3 meters, and a transport height of 2.26 meters.

What is the track width of the Hanix H 15 B-2 Plus mini excavator?

The Hanix H 15 B-2 Plus mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Hanix H 15 B-2 Plus?

The Hanix H 15 B-2 Plus has a dredging depth of 2.33 meters and a maximum horizontal reach of 3.82 meters.

What is the tear-out force of the Hanix H 15 B-2 Plus mini excavator, given that no power ratings are provided?

The Hanix H 15 B-2 Plus mini excavator does not have power ratings listed in the available data. It has a tear-out force of 14.4 kN.

What is the bucket capacity of the Hanix H 15 B-2 Plus mini excavator?

The Hanix H 15 B-2 Plus mini excavator has a bucket capacity of 0.05 cubic meters.

What operator safety and support features does the Hanix H 15 B-2 Plus have?

The Hanix H 15 B-2 Plus is equipped with a canopy for driver protection.
